AWWA C153 Standard Ductile Iron Pipe Fittings / MJ X MJ 90 Degree Bends
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 90 Degree Bend | Material: | Ductile Iron |
|---|---|---|---|
| Technics: | Casting | Standard: | AWWA C153 |
| Test: | 100% Water Pressure Test | Quality Control: | Strict Inspection As Per Standard |
| Highlight: | ductile iron pipe fittings,pipe fitting components |
||

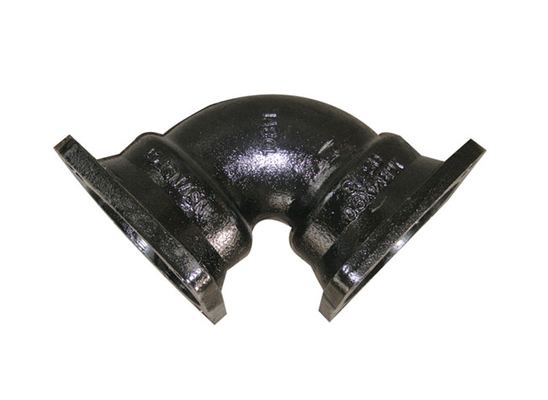

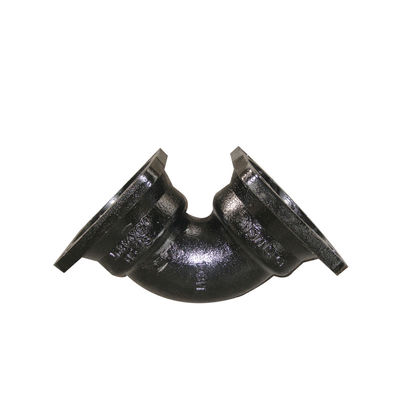

AWWA C153 MJ x MJ 90 Degree Bends Ductile Iron Pipe Fittings
About Us
We manufactures a full range of Ductile Iron Pipe Fitting according to ISO 2531, EN 598, EN 12842, GB 13295, ANSI/AWWA C110, C153 and other major standards.
We are a Specialist in Municipal, Drainage & Machinery Products & Services, including pipes, fititngs,couplings, valves, manhole covers, bollards, and OEM products in different materials, sizes and technical processes.
Specification
| Material: ductile iron ASTM A536 |
| Size range: DN 80-2600mm |
| Working pressure: 350 psi for 100mm~600mm; 250psi for 750mm~2600mm |
| Manufacture standard: ANSI/AWWA C153 |
| Casting method: lost foam technique |
| Testing according to ANSI/AWWA C153/A21.53 |
| Annual capacity: 5,000 tons |
| Coating: FBE/cement lining with zinc bitumen coating/zinc+ bitumen inside and outside/customers’ requirement |
| Accessories: SBR/EPDM rubber(ANSI/AWWA C111/A21.11) gaskets, T-bolts and nuts(low ally steel ANSI/AWWA C111/21.11), and gland, etc. |
| Package: standard wooden/steel pallets/customers’ requirements |
| Easy installation at site and service free for life |
Packaging & Shipping
Package: Standard export wooden case, wooden pallets or as per your requirements
Contract Manufacturing: OEM Service Offered; Design Service Offered; Buyer Label Offered;
Port:we could use Tianjin Xingang or Qingdao,Dalian
Contract Manufacturing: OEM Service Offered; Design Service Offered; Buyer Label Offered;
Port:we could use Tianjin Xingang or Qingdao,Dalian
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
