Union 12" X 4" Cast Iron Pipe Fittings Mechanical Joint Fittings MJ Cap 51 LBS Weight

Product Details:

Place of Origin:	Mainland China
Brand Name:	NC986
Certification:	ISO9001,CE,SGS
Model Number:	986
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	can talk
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	90,000 pcs monthly

Contact Now

Detailed Product Description

Item Name:	MJ CAP	Material:	Ductile Iron ASTM A536
Size:	12” X 4”	Weight:	51 LBS
Manufacture Standard:	ANSI/AWWA C153	Sample:	Free
Highlight:	pipe fitting components , ductile iron pipe fittings

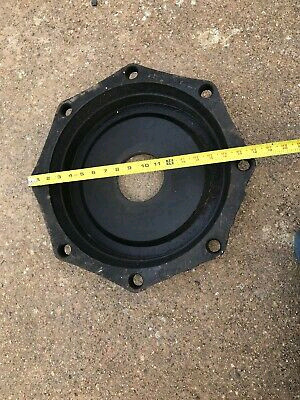

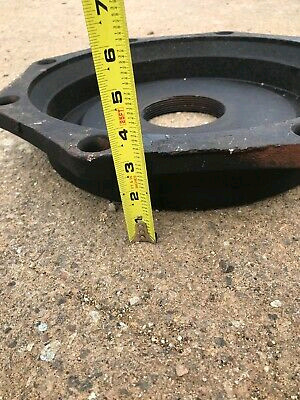

UNION 12” X 4” MECHANICAL JOINT Fittings MJ CAP 4” FNPT TAP 350 DI

Product Details

Material: ductile iron ASTM A536

Size range: DN 80-2600mm

Working pressure: 350 psi for 100mm~600mm; 250psi for 750mm~2600mm

Manufacture standard: ANSI/AWWA C153

Casting method: lost foam technique

Testing according to ANSI/AWWA C153/A21.53

Annual capacity: 5,000 tons

Coating: FBE/cement lining with zinc bitumen coating/zinc+ bitumen inside and outside/customers’ requirement

Accessories: SBR/EPDM rubber(ANSI/AWWA C111/A21.11) gaskets, T-bolts and nuts(low ally steel ANSI/AWWA C111/21.11), and gland, etc.

Package: standard wooden/steel pallets/customers’ requirements

Easy installation at site and service free for life

Union 12" X 4" Cast Iron Pipe Fittings Mechanical Joint Fittings MJ Cap 51 LBS Weight 0

Quality Control

We conduct strict quality inspections over each batch. We have a very professional laboratory with full

serious of testing and inspection as Leak testing, raw material receiving inspection, batch chemical composition

inspection, Micr-ostructure testing, dimension inspection, first article inspection, in-process inspection and final

visual inspection. In- order to ensure high quality

Our Service

Buyer's drawings or designs are available.

Package Cartons without pallet, Cartons with pallet, Double woven bags, Or as buyer's requirements

Delivery details According to the quantities and specifications of each order.

Normal delivery time is from 30 to 45 days after receiving the deposit.
