Precision Lost Wax Casting Alloy Steel Sector Lever Arm

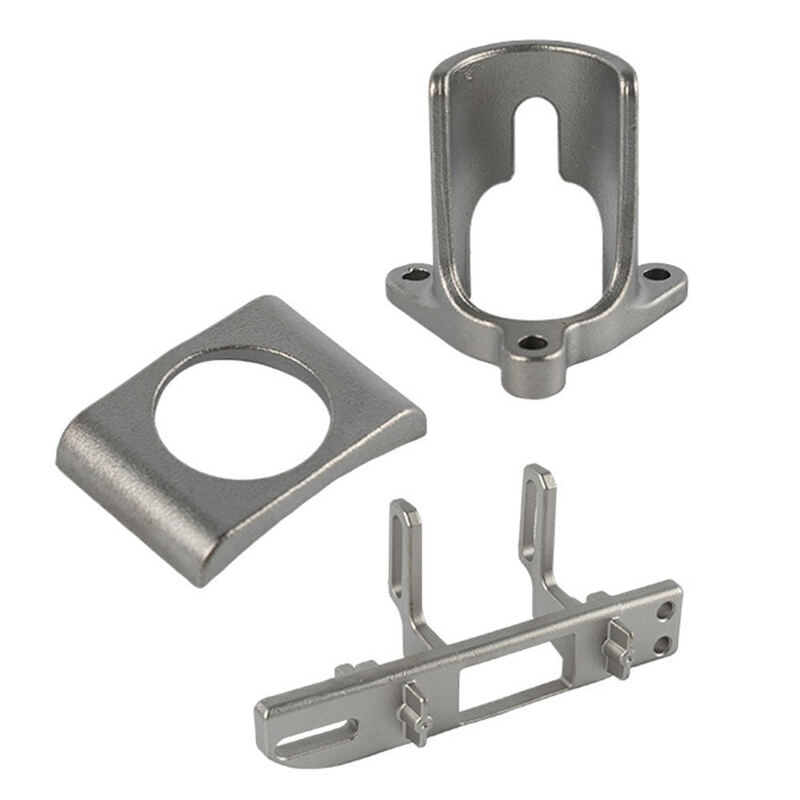

Large Image : Precision Lost Wax Casting Alloy Steel Sector Lever Arm Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	NC4311
Certification:	ISO9001,CE,SGS
Model Number:	4311
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Can talk
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	80,000 pcs monthly

Contact Now

Detailed Product Description

Precision Lost Wax Casting Alloy Steel Sector Lever Arm

Product Details

Casting Process	Silica Sol Investment Casting, Lost Wax Process (Medium-Temp Wax).
Pattern Material	Medium-Temperature Wax (Higher precision than low temperature wax).
Precision Grade	Surface Finish: Ra 1.6- Ra 3.2 μm(AS Cast), CT Grade: CT5 -CT12. Linear Tolerance: ±0.10mm per 25mm, tighter on request.
Size Tolerance	Linear Tolerance:+0.10mm per 25mm, (Increase in proportion to size) tighter on request (e.g., ±0.05mm on critical dims).
Typical Wall Thickness	Minimum 3mm, Larger than 4 mm is recommended for better filling and integrity.
Materials	Stainless Steel (304, 316, 17-4PH), Carbon Steel (ZG45), Alloy Steel (40Cr, 42CrMo).Brass/Bronze(CuZn, AB2)
Heat Treatment Type	Quenching & tempering, normalizing, annealing, tempering, solution treatment.
Core Making Process	Ceramic Core / Sol-Gel Process (For Complex Internal Channels)
Gating System Control	Optimized for Directional Solidification / Minimum Hot Tearing.
Microstructure Check	Metallography Analysis / Grain Size Control (For Critical Parts).
Max Size / Weight Range	Max Dimension: < 300mm x300mm x 300mm (Typical). Weight Range: 0.05Kg-25Kg
Surface Treatment	Electro-polishing, Passivation, Shot Blasting, Anodizing, Heat Treatment
Processing Ability	Precision CNC Machining to 0.05mm, Functional Assembly, 72h DFM Review. Secondary Operation: Tapping, Drilling.Grinding.
Application	Pump/Valve Components, Impellers, Marine Hardware, Food/Medical Machinery Parts. Micro Components.
Inspection	CMM Inspection, Spectrometry Analysis (COC), Dynamic Balance(≤G6.3), Magnetic Powder(MT). NDT:X-Ray (RT) or Ultrasonic Testing(UT).

Our workshop

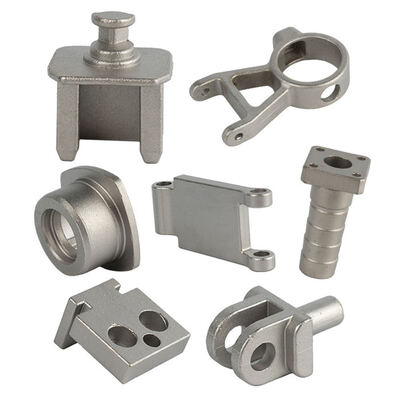

Precision Lost Wax Casting Alloy Steel Sector Lever Arm

About Us

Sunrise Foundry is a professional Metal Foundry, located in Ningbo. We have been producing Gray Iron,

Ductile Iron Castings and and any other precision castings for more than 25 years.

We are dedicated to meet different requirements of various customers across the world, products are mainly

involved Agricultural and Construction Machinery, Hydraulic, Mining industry, Municipal Products, some steel

and stainless steel castings for Pumps and Valves, Pipe Fittings, etc.

Please feel free to contact us if you have any requests.

Our advantages

1.Integrates diverse manufacturing processes including casting, forging, stamping, injection molding, and machining-into a cohesive production chain.

2.Precision Guaranteed: Machining and stamping processes ensure dimensional consistency and surface finish.

3.Cost Advantage: Economies of scale and process integration reduce unit costs, ensuring competitive pricing.

4.One-Stop Solution: End-to-end service from raw materials to final products minimizes clients supply chain management costs.

5.Keeps pace with the evolving trends in the automotive and manufacturing industries, ensuring our products and services remain at the forefront.

Quality Control

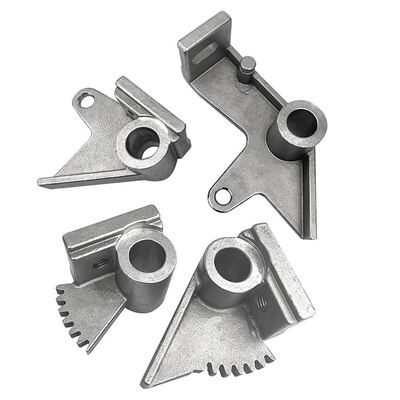

Precision Lost Wax Casting Alloy Steel Sector Lever Arm

How to get a quotation?

Provide detailed design files (PDF, STEP, IGS, DWG). Include quality, delivery, material, quantity, surface treatment info. More details ensure more accurate quotes.

Can I get a quote without design files?

Yes. Send parts or share ideas. Our engineers offer free design. Samples, pics or sketches work as references for competitive quotes.

Question

How long for samples?

Usually 7-15 days.Complexity, material availability and production schedules may vary this. We'l update you.
