Prestressed Concrete S3 Flat Anchorage for 12.7mm PC Strand
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item Name: | Flat Anchor | Type: | 3S |
|---|---|---|---|
| Material: | Cast Iron | Diameter: | 12.7 |
| Application: | Construction | Sample: | Available |

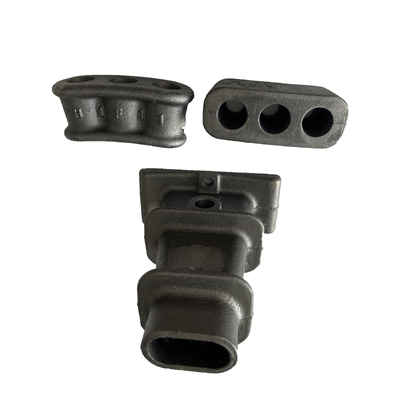

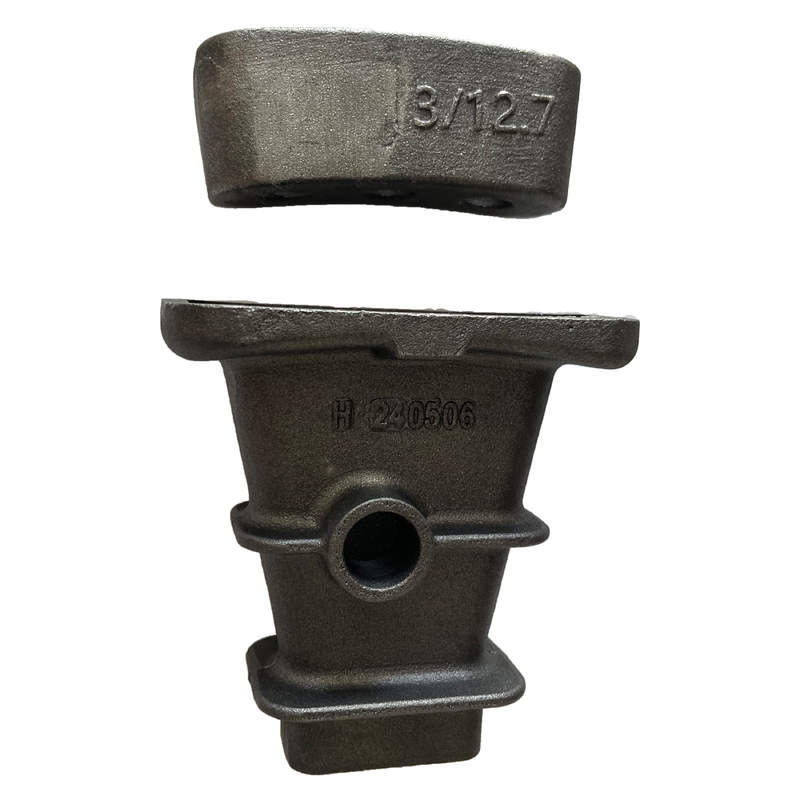

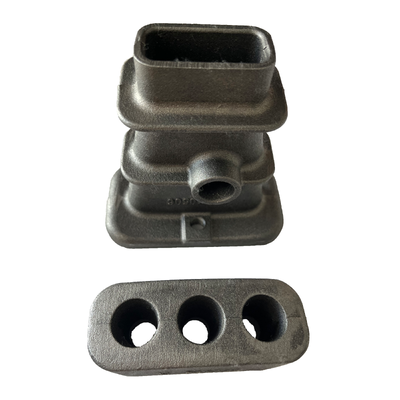

Prestressed Concrete S3 Flat Anchorage for 12.7mm PC Strand
Product Details
The Flat Anchorage has been widely used in pre-tension and post-tension for concrete constructions and building materials. It is can be used to lock the PC steel strand.Prestressed tendons in anchorage installed in anchor cable steel strand exposed and can be tensioned anchorage, after tensioning preload tension of the prestressed reinforcement can be passed to the surface of concrete or steel structure, increase the overall strength of the effect. Special analysis, tunnels, Bridges and other prestressed tensioning construction engineering.
| Diameter of the steel strand | 9.53mm,15.24mm,15.2mm,12.7mm,12.9mm ,Customized |
| Type | Iron ,Casting |
| The efficient of coefficient | ≥95% |
| Assembly stress length of total strain | ≥2.0% |
| Execution standard | GB/T 14370-2007 |
The unique features:
Anchor piece tooth type is reasonable, unique small damage degree of anchor cable surface, grasping the anchor cable is firm and reliable. Anchor for three disc, incision is bevel, and steel wire spiral to the contrary, more uniform distribution of steel strand monofilament passed the tensile force, anchor follow-up effect is good. Efficiency coefficient is high, safe and reliable support.
Quality Control
FAQ
Are you manufacturer or trade company? We are manufacturer.
We have been engaged in this field for 25 years.
What is your MOQ?
MOQ is different according to different kinds of product we can accept LCL .But we accept small quantity for trial order. Please contact us for details.
Can you print my own design or logo on the mug or other blank products?
Yes, we accept customization. Your logo and design will be warmly welcomed.
What is your delivery time?
For sample order: After the receipt of payment, usually it takes about 2-3 days to arrange samples.
For mass production: It takes about 7-15days depend on different kinds of item and order quantity.
