Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Cast Iron | Process: | Sand Casting |
|---|---|---|---|
| Diameter: | 12.7,15.24 | Application: | Construction |
| Inspection: | 100% | OEM: | Available |

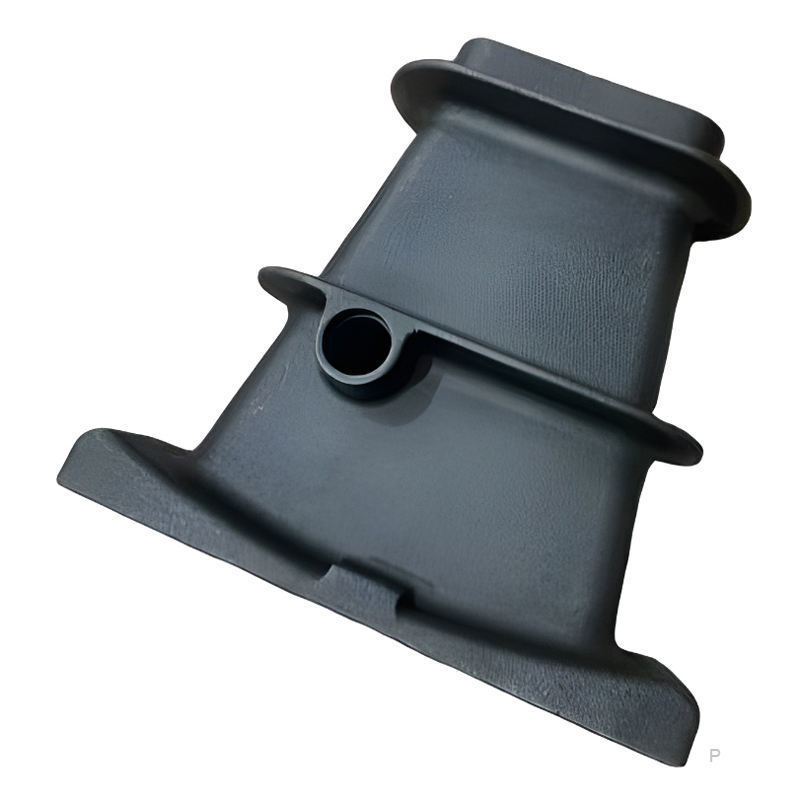

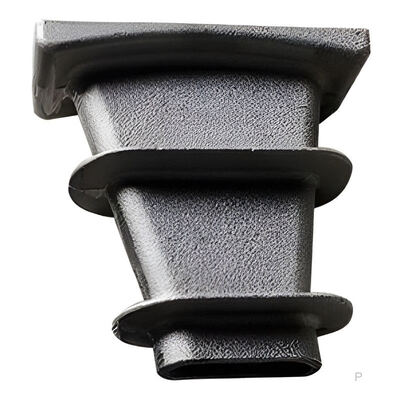

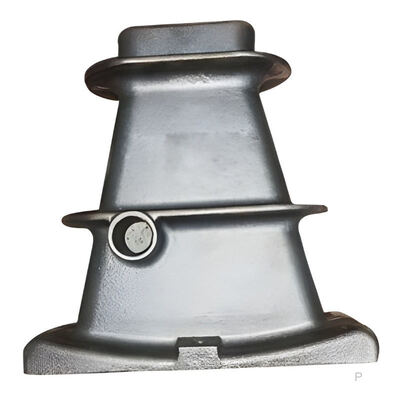

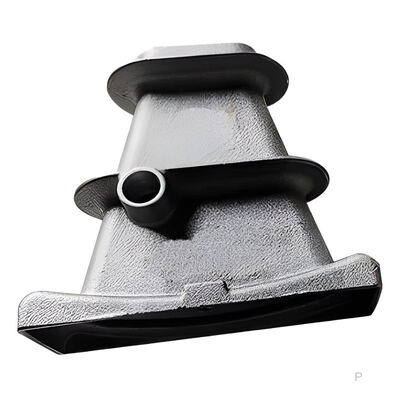

Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Product Details
The anchoring system of spheroidal graphite cast iron integrated anchor is designed for unbonded PC strand based on the
application of PC strand anchorage in recent 20 years in China.Its feature is that the anchorage at the tension end adopts the spheroidal graphite to integrate the bearing plate and anchor head. It has compact structure and reliable anchoring, Its performance meets the national requirements of GB/t14370-2000, and it is also applicable to 2000MPa PC strand.In addition, the biggest advantage of the anchoring system is that the full length of PC strand can be fully sealed.
Features:

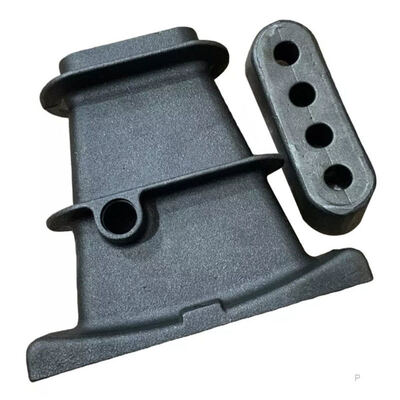

* Including anchor head, anchor wedge and anchor plate
* Adopts the ductile iron material, and combines the traditional anchor head and the anchor plate into one, which greatly
simplifies the complicated machining process in the previous anchor tool processing
* The utility model is characterized in that the tension end anchor is integrated with the anchor ring by ductile iron, and the structure is compact and the anchoring is reliable.
* The full length of the prestressing tendon can be completely closed.
* Flat Shape, Mature Efficiency Design, Straight or Arc shape anchor head available 3, 4, 5 holes available; Well Deburring and Chamfering; Galvanized or Chemical Dioxide Surface Treatment( Black).
