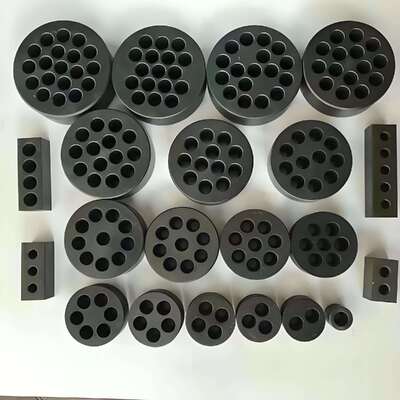

Prestressed Multihole Round Head Anchorage for PC Strand

Large Image : Prestressed Multihole Round Head Anchorage for PC Strand Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	NC8412
Certification:	ISO9001,CE,SGS
Model Number:	8412
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Can talk
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	80,000 pcs monthly

Contact Now

Detailed Product Description

Material:	Steel	Type:	Multiholes
Diameter:	12.7mm Or 15.2mm Strand	Application:	Construction
Capacity:	1860MPa	Hardness:	20-35HRC

Prestressed Multihole Round Head Anchorage for PC Strand

Product Details

Matched with strand diameter of	12.7mm ; 12.9mm,15.24mm ;15.7mm, 17.8mm-18.5mm, 21.6mm-22mm
Tensile strength	1860Mpa
Yield strength	1675MPa
Hardness	20-35HRC
Static load test passed anchoring efficiency	ηA≥0.95 and elongation ≥2%
With-draw of wedge after stressing	λ≤6mm

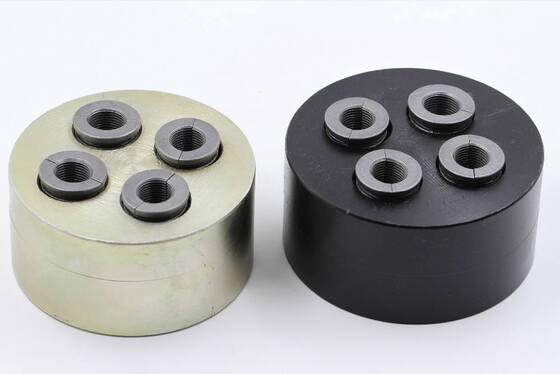

Prestressed Multihole Round Head Anchorage for PC Strand 0

great quality best prestress anchorage wedges for pretension work

It includes some parts like limit board and anchor plate etc.

Its Hardness of manufacturer of industry wedge

work anchorage head and limit board: 25~4033HRC (306 HBS) work gripper :78~86HRA

Matched tensioning device manufacturer of industry wedge :

YCQQ series jack, ZB4-500 hydraulic pump

Heat treatment specification of manufacturer of industry wedge :

ISO9001 - 2008 & JB/T3999-1999

(Carburizing or carbonitriding and post–quenching and tempering of steel part)

During the Heat treatment permeability, nitriding, quenching, tempering process , The computer control process parameters of multi-purpose furnace, and set up quality control points according to the requirements of ISO9001 - 2008 quality assurance system, after heat treatment ,the hardness, tooth type, appearance have to pass a rigid thoroughly inspection, to ensure high qualified products.

All the procedure was controlled by a computer according to JB/T3999-1999

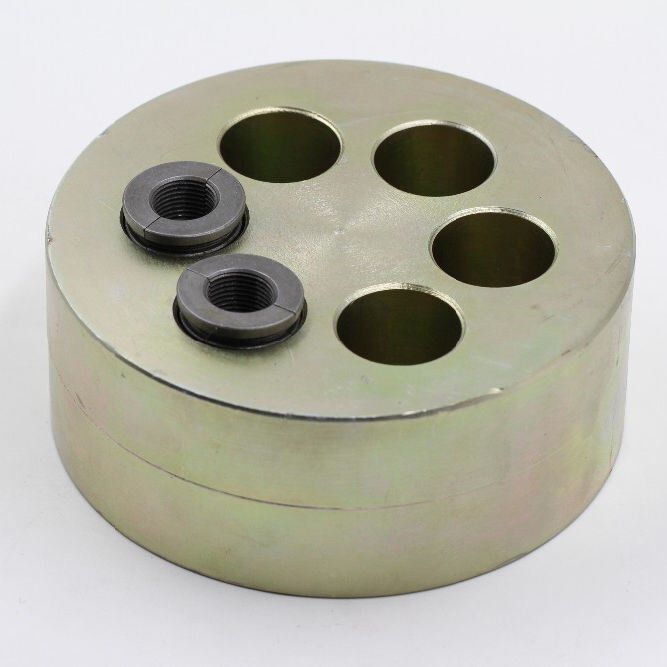

Prestressed Multihole Round Head Anchorage for PC Strand 1 Quality Control

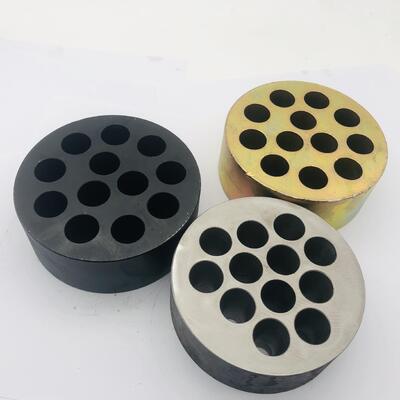

Prestressed Multihole Round Head Anchorage for PC Strand 2

FAQ

Are you manufacturer or trade company? We are manufacturer.

We have been engaged in this field for 25 years.

What is your MOQ?

MOQ is different according to different kinds of product we can accept LCL .But we accept small quantity for trial order. Please contact us for details.

Can you print my own design or logo on the mug or other blank products?

Yes, we accept customization. Your logo and design will be warmly welcomed.

What is your delivery time?

For sample order: After the receipt of payment, usually it takes about 2-3 days to arrange samples.

For mass production: It takes about 7-15days depend on different kinds of item and order quantity.
