Post-Tensioning Wedge 12.7mm Anchorage Wedge
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item Name: | Anchorage Wedge | Material: | 20CrMnTi |
|---|---|---|---|
| Size: | 12.7 | Process: | Machining |
| Capacity: | 1860Mpa | Supply Ability: | 100000 Set/Sets Per Month |

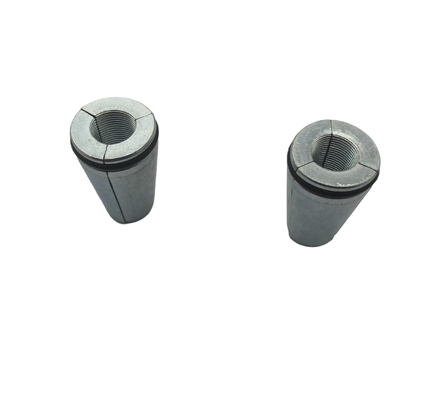

Post-Tensioning Wedge 12.7mm Anchorage Wedge
Product Details
The wedge is the core component of the prestressed anchoring system, typically consisting of 2-3 wedge-shaped steel blocks with outer cones and inner teeth. It is used in conjunction with the anchor plate, and through the wedge self-locking principle, firmly locks the tensioned steel strand to prevent it from retracting.
Features
Outer conical surface: matches the conical hole of the anchor plate (typically with a 1:12 taper) to create a wedging effect

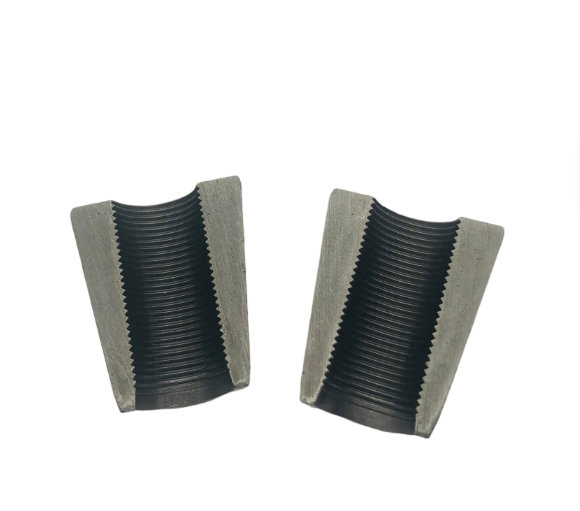

Inner tooth surface: densely covered with helical teeth, increasing friction with the steel strand to prevent slippage

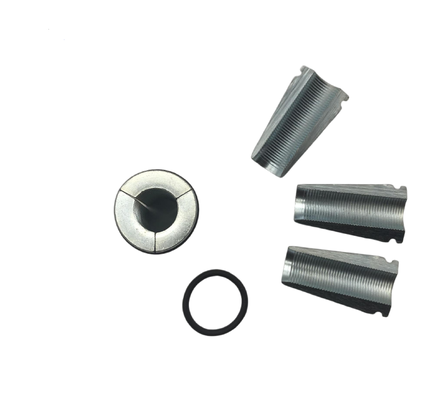

Split design: commonly seen in two-piece type (for single steel bar) or three-piece type (for steel strand)
About Us
Sunrise Foundry is a professional Metal Foundry, located in Ningbo. We have been producing Gray Iron,
Ductile Iron Castings and and any other precision castings for more than 25 years.
We are dedicated to meet different requirements of various customers across the world, products are mainly
involved Agricultural and Construction Machinery, Hydraulic, Mining industry, Municipal Products, some steel
and stainless steel castings for Pumps and Valves, Pipe Fittings, etc.
Please feel free to contact us if you have any requests.
Quality Control
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
