Ductile Iron Casting Ggg45 Custom Made China Casting Parts
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Ductile Iron | Process: | Shell Mould Casting |
|---|---|---|---|
| Application: | Machinery | Size: | Customized |
| Finish: | Sandblasting | OEM: | Available |
| Inspection: | 100% |

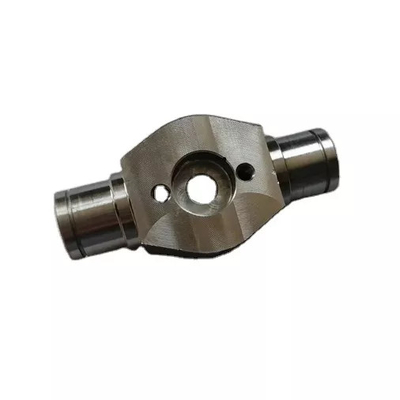

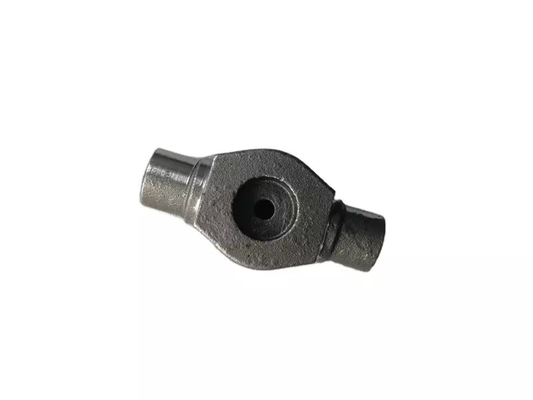

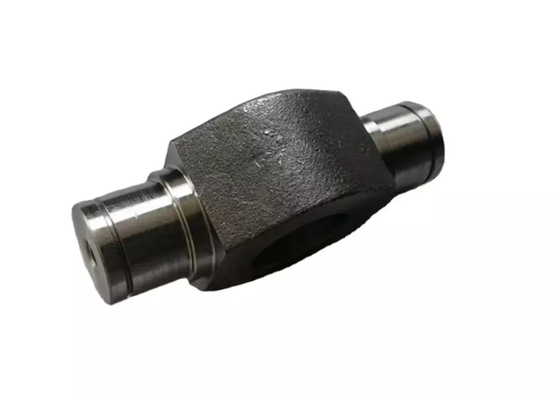

Ductile Iron Casting Ggg45 Custom Made China Casting Parts
What is Shell Mold Casting
The shell mold casting process is a relatively new casting technology, and it developed as an industrial manufacturing process during the mid 20th century in Germany. We can also call it shell molding because a disposable sand-resin-mixed shell is made by a set of metal molds during the process. And we can pour the molten metal directly into the sand-resin shells to cast out the desired workpieces.
The molten metals applied for the shell mold casting process include cast iron, carbon steels, alloyed steels, stainless steels, copper alloys, and aluminum alloys. Large-sized parts do not apply to this process because of the metal patterns, while shell molding suits small-to-medium-sized metal parts that required higher accuracy and smoother surfaces.
It is most suitable for thin-walled products with high quality surface finish requirements. Because this process has better
surface finish and more precise tolerance than sand casting, it is suitable for casting the workblanks with complex shapes,
especially complex cavities
The molten metals applied for the shell mold casting process include cast iron, carbon steels, alloyed steels, stainless steels, copper alloys, and aluminum alloys. Large-sized parts do not apply to this process because of the metal patterns, while shell molding suits small-to-medium-sized metal parts that required higher accuracy and smoother surfaces.
It is most suitable for thin-walled products with high quality surface finish requirements. Because this process has better
surface finish and more precise tolerance than sand casting, it is suitable for casting the workblanks with complex shapes,
especially complex cavities
About Us
We specialized in Sand Casting, Investment Casting, Die Casting, Machining, automatic casting, sodium silicate casting, resin sand
casting, lost foam casting, shell mold casting, cast aluminum, and our products are widely used in heavy duty trucks, hydraulic
equipment, forklifts, oilfield equipment, valves, elevators, motors and many more.
Over 20 years development, our products are sold in Germany, the United States, Australia, Britain, the Middle East, Spain,
Brazil, India, South Korea, Taiwan and Chinese mainland, etc.
casting, lost foam casting, shell mold casting, cast aluminum, and our products are widely used in heavy duty trucks, hydraulic
equipment, forklifts, oilfield equipment, valves, elevators, motors and many more.
Over 20 years development, our products are sold in Germany, the United States, Australia, Britain, the Middle East, Spain,
Brazil, India, South Korea, Taiwan and Chinese mainland, etc.
We will sincerely create and share success with all clients. Our goal is not only to provide high quality products, but also to
maintain a personalized and professional relationship with each customer. If you are interested in any of our products, please do
not hesitate to contact us directly with your questions or inquiries.
maintain a personalized and professional relationship with each customer. If you are interested in any of our products, please do
not hesitate to contact us directly with your questions or inquiries.

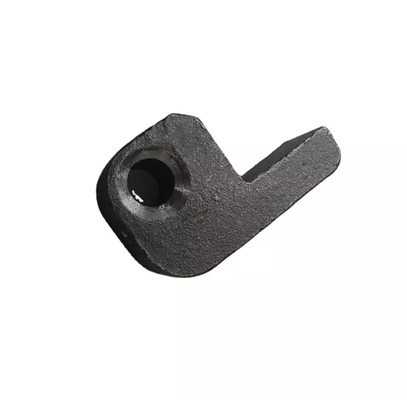

Product Show
Quality Control
FAQ
How to prevent the formation of air holes in castings?
The effective methods to prevent bubbles are: reducing the gas content in the metal liquid, increasing the air permeability of sand mold, and adding an air riser at the top of the mold cavity.
The effective methods to prevent bubbles are: reducing the gas content in the metal liquid, increasing the air permeability of sand mold, and adding an air riser at the top of the mold cavity.
How to avoid the situation of sticky sand?
The surface of the casting is adhered to a layer of sand which is difficult to remove.It not only affects the appearance of
casting, but also increases the workload of casting cleaning and cutting, and even affects the life of the machine.The method to prevent the formation of sand is to add coal powder in molding sand, and to brush the surface of the cast mold with anti-sand paint.
The surface of the casting is adhered to a layer of sand which is difficult to remove.It not only affects the appearance of
casting, but also increases the workload of casting cleaning and cutting, and even affects the life of the machine.The method to prevent the formation of sand is to add coal powder in molding sand, and to brush the surface of the cast mold with anti-sand paint.
How to identify shrinkage?
(1) Observe the surface shape of casting defects. If the surface is uneven, very rough, and dark gray, the hole with irregular
shape is shrinkage cavity.
(2) If the location of the hole is at the final solidification thickening of the casting, or at the hot spot where the two walls
intersect, and is located in the middle or upper part of the section, it is a shrinkage cavity.
(3) The most concentrated hole defects on the thick and large section of steel castings are shrinkage or air shrinkage.
How to prevent sand expansion?
In order to prevent sand expansion, the strength of sand mold and the rigidity of sand box should be increased, and the pressing force or fastening force when closing the box should be increased. In addition, the pouring temperature should be reduced to make the surface of molten metal crust earlier, so as to reduce the pressure of molten metal on the mold.
How to prevent sand inclusion?
Sand inclusion is a kind of groove and scar defect formed on the surface of castings, which is very easy to produce in wet mold casting of heavy plate castings. Avoiding large plane structure can effectively prevent sand inclusion.
How to identify the wrong type, wrong core and off-core?
(1) Dislocation is the defect that one part of the casting is staggered with another part at the parting surface, which is usually
caused by inaccurate positioning of the mold.
(2) The core staggering is that the sand cores are staggered at the parting surface, which makes the inner cavity of the casting
deform and the outer surface shape of the casting is correct.
(3) Core deviation is caused by improper change of sand core position, which results in casting shape and size inconsistent with
the drawing.
(1) Observe the surface shape of casting defects. If the surface is uneven, very rough, and dark gray, the hole with irregular
shape is shrinkage cavity.
(2) If the location of the hole is at the final solidification thickening of the casting, or at the hot spot where the two walls
intersect, and is located in the middle or upper part of the section, it is a shrinkage cavity.
(3) The most concentrated hole defects on the thick and large section of steel castings are shrinkage or air shrinkage.
How to prevent sand expansion?
In order to prevent sand expansion, the strength of sand mold and the rigidity of sand box should be increased, and the pressing force or fastening force when closing the box should be increased. In addition, the pouring temperature should be reduced to make the surface of molten metal crust earlier, so as to reduce the pressure of molten metal on the mold.
How to prevent sand inclusion?
Sand inclusion is a kind of groove and scar defect formed on the surface of castings, which is very easy to produce in wet mold casting of heavy plate castings. Avoiding large plane structure can effectively prevent sand inclusion.
How to identify the wrong type, wrong core and off-core?
(1) Dislocation is the defect that one part of the casting is staggered with another part at the parting surface, which is usually
caused by inaccurate positioning of the mold.
(2) The core staggering is that the sand cores are staggered at the parting surface, which makes the inner cavity of the casting
deform and the outer surface shape of the casting is correct.
(3) Core deviation is caused by improper change of sand core position, which results in casting shape and size inconsistent with
the drawing.
