Cast Iron Expansion Shell Expansion Leaves For Mining Roof Support Systems
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Part Name: | Expansion Shell Expansion Leaves | Material: | Cast Iron, Steel |
|---|---|---|---|
| Application: | Underground Mining | Surface Finish: | Sandblasting |
| Quality Control: | 100% Inspection | Sample: | Available |

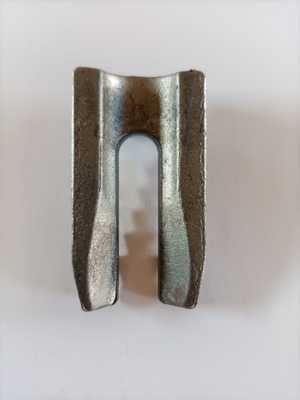

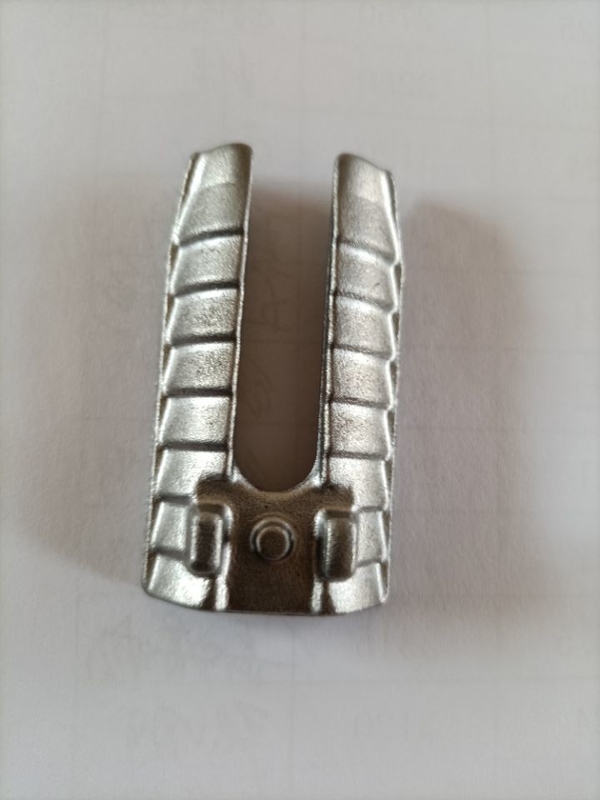

Cast Iron Expansion Shell Expansion Leaves For Mining Roof Support Systems
Product Details
Application
Expansion shell rock bolt anchors come in a wide variety of styles but the basic principle of operation is the same in all of these anchors. The components of a typical expansion shell anchor are a tapered cone with an internal thread and a pair of wedges held in place by a bail. The cone is screwed onto the threaded end of the bolt and the entire assembly is inserted into the hole that has been drilled to receive the rockbolt. The length of the hole should be at least 100 mm longer than the bolt otherwise the bail will be dislodged by being forced against the end of the hole. Once the assembly is in place, a sharp pull on the end of the bolt will seat the anchor. Tightening the bolt will force the cone further into the wedge thereby increasing the anchor force.
Work Shop
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory for mining expansion shell anchor.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Contact Details
Sunrise Foundry CO.,LTD
Contact Person: Paul
Send your inquiry directly to us
