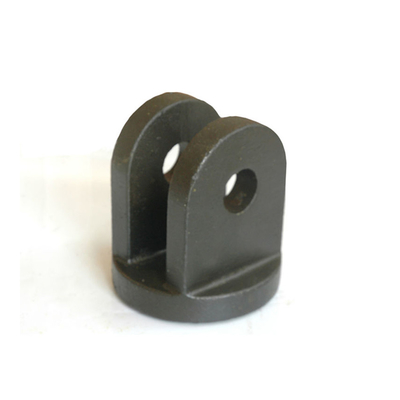

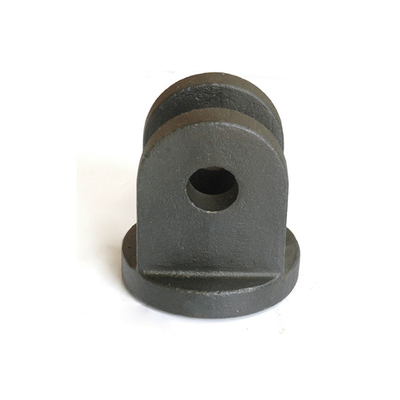

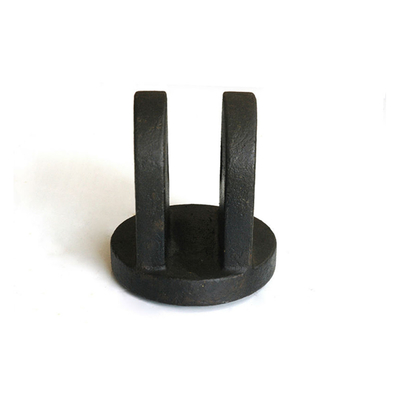

Cast Ductile Iron Hydraulic Cylinder Head Hydraulic Clevis
♦ Valve and pump system,
♦ Agriculture machinery part
♦ Mining machinery
♦ Construction machine
♦ marine part
||Ductile cast iron piston, motor housing, pump casing, pump housing, flange, starter housing, valve housing, crankshaft, air compressor housing, pillow block bearing, engine bracket, gear box , gear housing , gear cover, wheel, fly wheel, oil pump housing, coolant pump housing, etc.
♦ A. Gray / Grey Cast Iron
♦ B. Ductile Cast Iron
|type of blank process technic
A. Clay Bonded Sand Casting
B. Green Sand Casting
C. Resin Bonded Sand Casting
D. Shell-core Casting
E. Electric-furnace smelting
♦ 2 mm - 2000 mm / 0.08 inch - 79 inch for casting iron
♦ 0.5-300 KGS
|Blanks Tolerance -Casting Tolerance
♦ CT9-10 for Machine Molding Process
♦ CT10-11 for Manual Molding Sand casting Process
||♦ As per your requirement
♦ epoxy powder coating,
|delivery or lead time
A. If you can offer existing mould,it takes about 12-15days for a 20 feet container.(Except no bad weather condition)
B . If no, it takes 15 days to make a new mould.
C . as per client' need
A. Wooden pallet
B. Wooden case
C. Iron pallet
D. As per requirement
||♦ 50 pieces
We can build, supply new cylinders for Earth Moving, Marine, Press, Crane, Telescopic, Shear,
Excavator and Chip Dump applications. We also have the capabilities, experience, and technical
knowledge to manufacture new cylinders and custom build cylinders. We can handle any hydraulic
cylinder needs from smaller application cylinders to very large cylinders (for example cylinders on large mining equipment).
Contact us for pricing and availability or if you're needing a custom built cylinder.
Quality Control is one of the most important process in production. We insist that 100% inspection before
shipment and ensure parts without any flaws when sending out.
We have complete quality inspection facilities including mechanical testing, chemical analysis, tensile strength,
hardness, spectrometer, ultrasonic testing, etc.
Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model
Can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
