Spherical Nut And Spherical Washer for Self Drilling Anchor System

Large Image : Spherical Nut And Spherical Washer for Self Drilling Anchor System Get Best Price

Product Details:

Place of Origin:	Mainland China
Brand Name:	NC856
Certification:	ISO9001,CE,SGS
Model Number:	856
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Can talk
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	250,000 pcs monthly

Contact Now

Detailed Product Description

Item Nmae:	Spherical Nut	Material:	Carbon Steel
Application:	Coal Mining	Processing Type:	Forging
Thread:	R25, R32, R38, R51	Inspection:	100%

Spherical Nut And Spherical Washer for Self Drilling Anchor System

Description

Anchor nut is used to lock the anchor system, make sure the anchor string is fastened with anchoring site,

there usually have hexagonal and spherical two designs.

Product Show

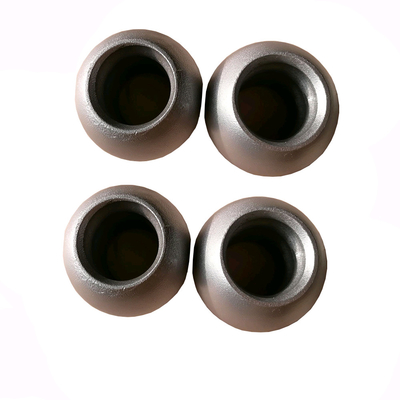

Spherical Nut And Spherical Washer for Self Drilling Anchor System 0

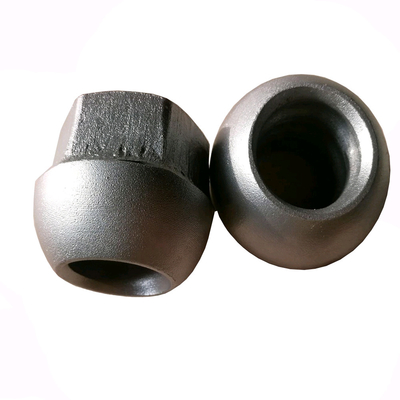

Spherical Nut And Spherical Washer for Self Drilling Anchor System 1

Hexagonal nut
Size	SW (mm)	L(mm)	Unit weight (kg)
R25	41	41	0.30
R32	46	45	0.35
R32	46	65	0.45
R38	50	60	0.50
R51	75	70	1.55
T76	100	80	2.80
Spherical nut
Size	SW(mm)	L(mm)	Unit weight (kg)
R32	46	45	0.45
R38	50	50	0.60
R51	75	70	1.60
T76	100	90	3.20
T30	46	35	0.42
T40	65	50	0.90
T52	80	70	2.20
T73	95	70	2.20
T103	125	80	3.40
T127	140	140	9.20
