DIA 25mm Cast Spherical Seat Spherical Washers SG42 Casting Bail Anchor Assemblies
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item Name: | Spherical Seat | Material: | Ductile Iron |
|---|---|---|---|
| Process: | Iron Casting | Finish: | Sandblasting |
| Application: | Mining Industry | OEM: | Available |
DIA 25mm Cast Spherical Seat Spherical Washers SG42 Casting Bail Anchor Assemblies
Description

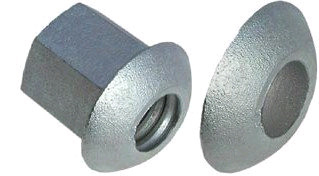

The spherical washers are self aligning and provide full hex nut bearing.
They can be used with Domed Plates or with thicker standard plates with chamfered holes.
Use a hardened flat washer between the nut and spherical washer.
Specification
|
Bar Diameter |
Thickness | Outside Dome |
| #6 - 3/4" (19 mm) |
35/64” (14 mm) |
2" (51 mm) |
| #7 - 7/8" (22 mm) |
39/64” (15 mm) |
2-1/4" (57 mm) |
| #8 - 1" (25 mm) |
5/8” (16 mm) |
2-1/2" (64 mm) |
FAQ
How can I get some samples of Iron casting,cast ductile iron,cast grey iron part?
If you need,we will offer you samples for free,but new customers are expected to pay express charge.
Do you provide customized parts?
Yes,Customers give us drawings and we will manufacture accordingly.
Can you make castings based on our sample of Iron casting,cast ductile iron,cast grey iron and cast steel part?
Yes,we can make measurement based on your samples to make drawings.
How can I get some samples of Iron casting,cast ductile iron,cast grey iron part?
If you need,we will offer you samples for free,but new customers are expected to pay express charge.
Do you provide customized parts?
Yes,Customers give us drawings and we will manufacture accordingly.
Can you make castings based on our sample of Iron casting,cast ductile iron,cast grey iron and cast steel part?
Yes,we can make measurement based on your samples to make drawings.
