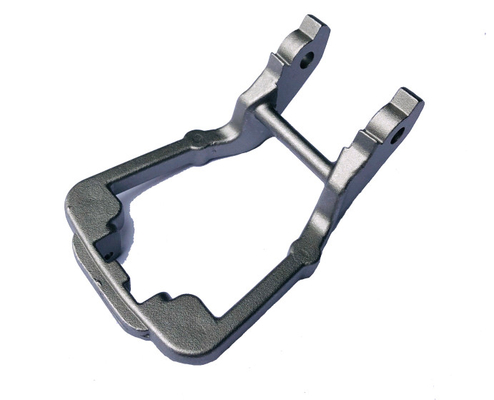

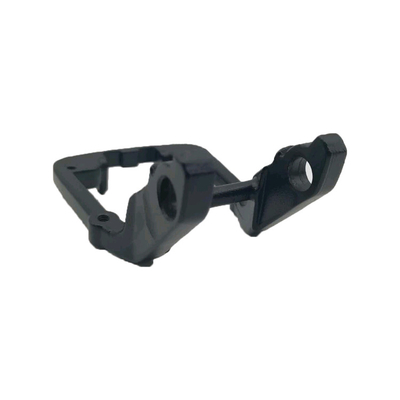

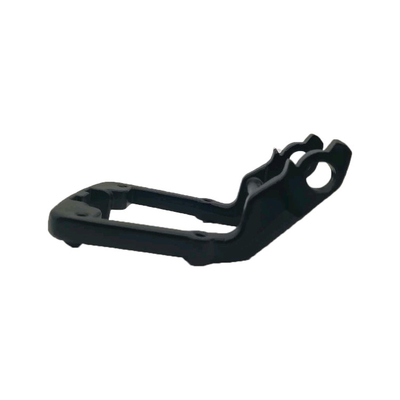

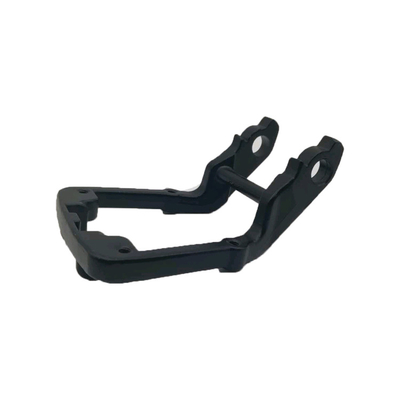

Customized Precision Investment Castings Vehicle Connecting Bracket Lightweight
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item Name: | Vehicle Connecting Bracket | Material: | Carbon Steel |
|---|---|---|---|
| Application: | Vehicle Accessories | Process: | Investment Casting |
| Surface Treatment: | Sand Blasting+Powder Painting | Standard: | GB ASTM AISI DIN BS JIS |
| Service: | OEM ODM Customized | ||
| Highlight: | steel investment casting,investment and precision casting,lost wax casting |
||
OEM Carbon Steel Precision Lost Wax Investment Casting Vehicle Connecting Bracket
Product Details
| Material | Austenitic stainless steel: 201, 303, 304, 316, 316L, 1.4581, scs14, scs16 |
| Hardened stainless steel:17-4PH, 410, 420, 440C | |
| Alloy cast steel: 4140, 4150, 4340, 8620, GS-25CrMo4 | |
| Casting alloy tool steel: CS-2, CS-7, CrWMn | |
| Carbon steel: 1020, 1025(WCB), 1030, 1040, 1045, 1050 | |
| Weight | 1g-30kg |
| Casting tolerance | CT4-CT7/GBT6414-1999; VDG Merkblad P690 |
| Surface Roughness | Ra1.6-Ra6.3 |
| Thickness | Min 2mm (1mm in Micro-region) |
| Casting Radius | Round radius ≥0.3mm, Internal fillet radius≥0.5mm |
| Blind Hole Depth | Max 30mm (Diamter 10mm) |
| Machining | Turning,Milling,Drilling,Boring,Threading, Grinding,CNC Machining & test equipment |
| Heat Treatment | Annealing,Hardening, Normalizing,Carburizing, Aging |
| Surface Finishing | Black Oxide,Black Coating,Anti-Pollution Flashover Coating,Mirror Polish |
| Industry Standards | ASTM, ICI, BS, DIN, JIS, ISO |
| Design Software | Pro-E, UG,Solidworks, AutoCAD |
| File Format | IGS, STP, XT, PDF, JPEG, JPG |
Production Process
All of our items is silica sol investment casting instead of water glass investment casting.
Water glass method dewaxes into the high-temperature water, and the ceramic mold is made of water glass quartz sand.
Silica sol method dewaxes into the flash fire, and silica sol zircon sand makes the ceramic mold.
Factory Introduction
Sunrise Foundry is a professional Metal Foundry, located in Ningbo. We have been producing Gray Iron,
Ductile Iron Castings and and any other precision castings for more than 25 years.
We are dedicated to meet different requirements of various customers across the world, products are mainly
involved Agricultural and Construction Machinery, Hydraulic, Mining industry, Municipal Products, some steel
and stainless steel castings for Pumps and Valves, Pipe Fittings, etc.
Please feel free to contact us if you have any requests.
