Building Materials Post Tension Anchor Wedges For 12.7mm 15.2mm PC Strand
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item Name: | Anchorage Wedge | Application: | Building Construction |
|---|---|---|---|
| Material: | 20CrMnTi, 20CrMn5 | Length: | 36mm |
| Diameter: | 25mm | Surface Treatment: | Galvanized Or Black |
| OEM: | Available | ||
| Highlight: | post tension accessories,prestressed anchorage,post tensioning system |
||
Building Materials Post Tension Anchorage Wedges For 12.7mm 15.2mm PC Strand
Application

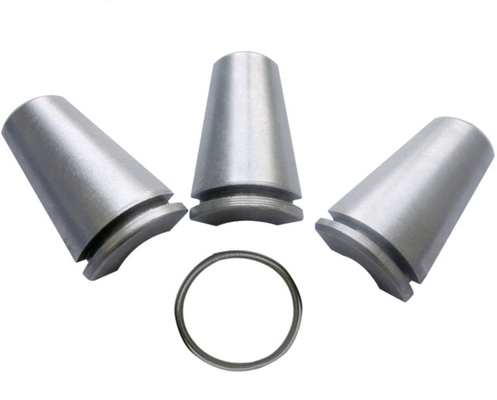

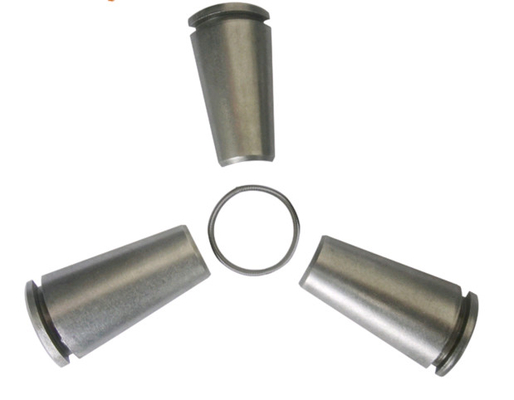

The3-Piece anchor wedges are useful in higher stress applications where the anchor is loaded and simply locked off, typical to temporary applications.They are Anchor Head Wdeges.
Features:

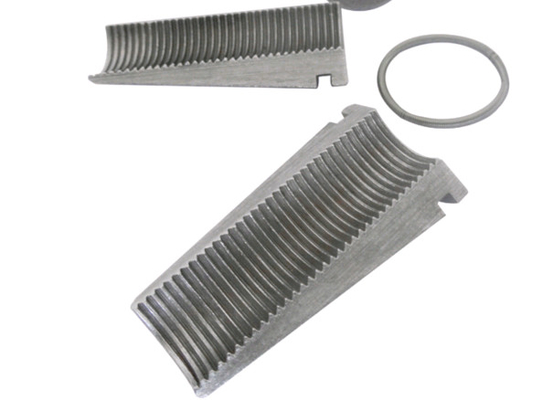

All wedges are equipped with a ring to keep the wedge attached to the tendon during elongation and /or tensioning operations.
Features:
All wedges are equipped with a ring to keep the wedge attached to the tendon during elongation and /or tensioning operations.
Product Details
| Production | Forging ,improve the metallographic structure |
| Type | two or three parts |
| material | 20CrMnTi |
| Inspection | Flaw detection,Deoxidation |
| Surface hardness | HRA79-84 |
| Core Hardness | HR38-46 |
| Carbonitriding Layer Depth | 0.35-0.6mm/0.6-0.8mm |
| Metallographic Analysis | Carbonitride, Tempered,Retained Austenite |
Production Process
1. The anchor wedges are manufactured from case hardened steels and are case hardened for durability.Accurate,
automated production plus stringent testing guarantee the highest quality.
2. The anchorage systems develop the required strength through the interplay between wedges and prestressing steel,
2. The anchorage systems develop the required strength through the interplay between wedges and prestressing steel,
and between the wedges and anchor plate. Characteristics that effect this interplay are wedge angle, wedge teeth amplitude
and spacing, type of steel, type of heat treatment, and general strand configuration in the anchor plate.
FAQ
Q: Do you provide samples ? is it free or extra ?
A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.
Q:How long is your delivery time?
A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.
Q:What is your terms of payment?
A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.
Q:How long is your delivery time?
A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.
Q:What is your terms of payment?
A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
