Steel Material Post Tension Wedges Post Tension Accessories Polishing Surface
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Anchor Barrel | Material: | Steel |
|---|---|---|---|
| Length: | 52mm | Surface Treatment: | Polishing |
| Inspection: | 100% Before Shipment | OEM: | Customized |
| Highlight: | post tension accessories,prestressed anchorage,post tensioning system |
||

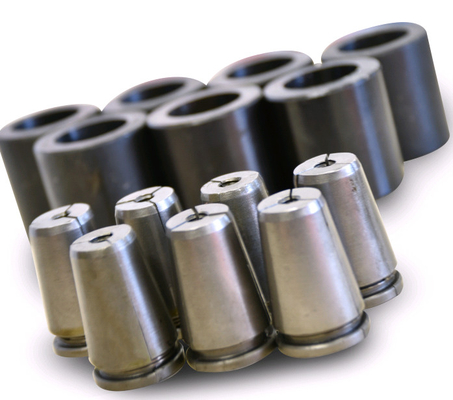

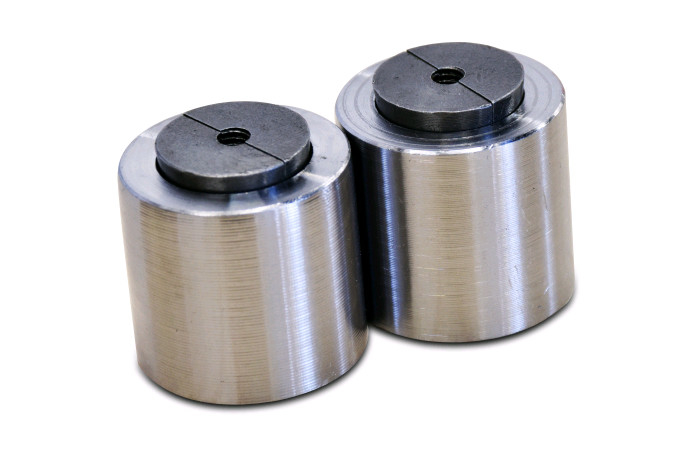

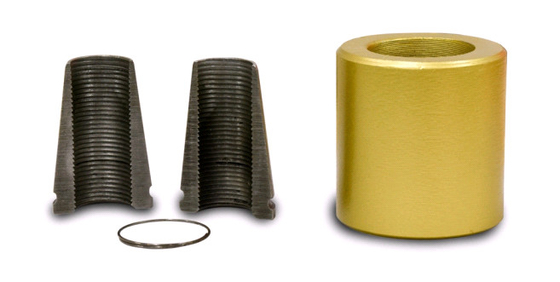

Prestressed Anchorage Post Tension Accessories Anchor Barrel And Wedge
Products Description
Single Hole Anchorage can be used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm/15.2mm.Other size standards can be customized, click customer service to contact us.
The hardness of anchorage: GB/T 14370-2015.
It has been verified by pratice that various type of CM-W anchor,also can be used for the different kinds of strand wires which is ASTM/BS/JIS/JIG/AS and other international standards.
Product Details
| Product name | Concrete Stressing Products Monostrand Barrel Anchors With Wedges |
| Application | Highways,railways,bridges,building construcitons |
| Certification | ISO9001:2015 |
| Raw material of wedge | 20CrMnTi |
| Raw material of anchor head | 40Cr |
| Surface treatment | Heat treatment |
| Hardnees of wedge | HRA79.5-86 |
| Hardnees of anchor head | HRC20-33 |
| Packing | Plastic bag+carton+wooden case |
| Delivery time | 10 days |
| Payment terms | T/T,L/C |
Quality Control
1 Raw material control
As the strategic partner and big customer of China's biggest steel company, Capital Steel Group, we have stable suppliers and high quality raw materials.
2 ISO9001: 2000 certificate
All of our equipments, production flow, and quality control system have passed ISO9001: 2000 certificate since 1997.
3 Strict product test
There are 260 employees in our company, including 35 experts with engineer titles. We have 3 test laboratories, 15 quality control commissioners and 11 workshops to ensure the accomplishment of the export orders.
The leading end and tail end of every coil will be cut off and tested by advanced inspection equipments and the testing samples will be kept in storage till the pc strands of the same lot are used by customers.
FAQ
Q: How long is your delivery time?
A: Generally it is 5-30days, it is according to quantity.
Q: Do you provide samples ? is it free ?
A: Yes, we can provide free sample, customer shall need to pay for the express charge.
Q: What is your terms of payment ?
A: 30% T/T in advance, balance before shipment.
Q: Do you accept the OEM?
A: Yes, we accept custom design OEM or ODM.
