Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks

Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks

  • Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks
  • Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks
  • Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks
Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks
Product Details:
Place of Origin: Mainland China
Brand Name: NC024
Certification: ISO9001,CE,SGS
Model Number: 024
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Can talk
Packaging Details: Wooden Case
Delivery Time: 20-25 days
Payment Terms: T/T, L/C
Supply Ability: 80,000 pcs
Contact Now
Detailed Product Description
Item Name: Jack Nut Material: Ductile Casted Iron QT450-10
Application: Scaffolding System Diameter: 28/30/32/34/35/38/48MM Etc
Weight: 0.25-2kg Surface Treatment: Natural ,painted, Electro Galvanized,HDG
Sample: Available
High Light:

scaffolding parts

,

formwork accessories

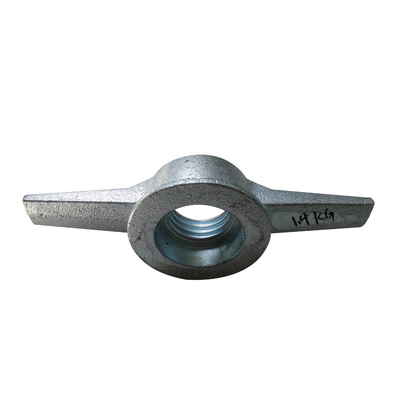

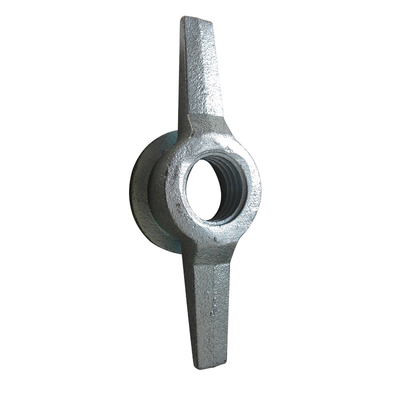

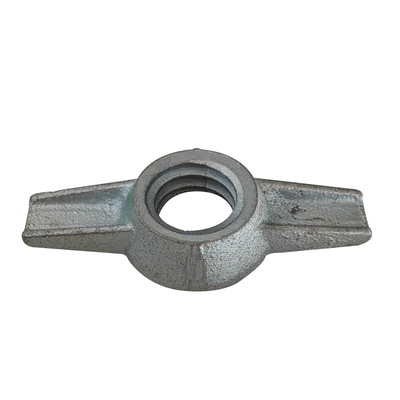

Cast Ductile Iron Scaffolding 38mm Jack Nut Thread for Base Jacks



Product Details





tem Name Scaffolding Jack Base Wing Nut
Application Used with scaffolding jack base
Material Ductile Cast Iron(QT450-10/12)
Size for Scaffolding Screw Jacks 36mm
Weight 0.50kg
Surface Treatment Electric Galvanzied
Color Choice White/Yellow
Packing Choice Bags/Wooden Cases



Specification



Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks 0

Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks 1

SIZE BASE PLATE U-HEAD
M30*600mm solid 120*120*4mm 120*120*50*4mm
M32*600mm solid 120*120*4mm 120*120*50*4mm
M34*600mm solid 140*140*4mm 120*120*50*4mm
M36*600mm solid 150*150*5mm 150*150*50*5mm
M38*600mm hollow 150*150*5mm 150*150*50*5mm
M48*600mm hollow 150*150*5mm 150*150*50*5mm





Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks 2

Cast Ductile Iron Scaffolding Accessories 38mm Jack Nut Thread For Base Jacks 3
