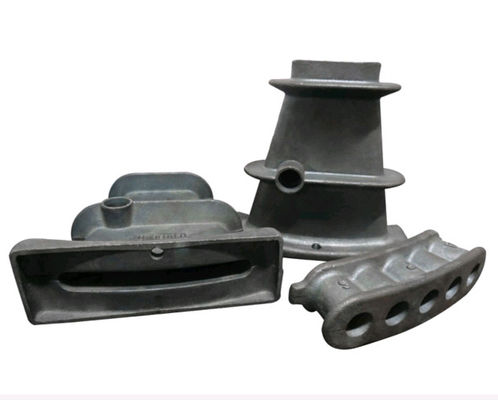

Cast Iron Prestressing Anchorage Stressing End Anchorage Arc Slab Anchor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Part Name: | Arc Slab Anchor | Material: | Cast Iron |
|---|---|---|---|
| Process: | Sand Casting | Application: | PC Strand |
| Size: | 12.7 | Sample: | Available |
| Highlight: | post tension accessories,prestressed anchorage,post tensioning system |
||
Post-tensioning Anchorage Stressing End Anchorage Arc Slab Anchor
Description
5 Holes Post Tension Arc slab Anchorage for Ф15.2-Ф15.7, Ф12.7-Ф12.9mm stand. flat anchors Use in pre-tensioned,
post –tensioned panels, no beam floors or need to lower the beam height. Flat anchors including flat anchor plate, working clip.
Features
simple structure, Convenient installation, Good sealing performance, Used for unbonded prestressed building works
Product Details
|
|
|
BM15-2
|
BM15-3
|
BM15-4
|
BM15-5
|
|
Anchor Head |
D
|
80
|
113
|
148
|
183
|
|
E
|
48
|
48
|
48
|
48
|
|
|
H
|
50
|
50
|
50
|
50
|
|
|
Anchor Plate
|
A
|
147
|
180
|
220
|
256
|
|
B
|
70
|
70
|
70
|
70
|
|
|
C
|
100
|
130
|
160
|
185
|
|
|
Duct
|
a
|
50
|
60
|
70
|
90
|
|
b
|
19
|
19
|
19
|
19
|
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
