Prestressed Concrete Post Tension Anchor Wedge For Tension Jacking System

Large Image : Prestressed Concrete Post Tension Anchor Wedge For Tension Jacking System Get Best Price

Product Details:

Place of Origin:	Mainland China
Brand Name:	NC011
Certification:	ISO9001,CE,SGS
Model Number:	011
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	0.6
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	80,000 pcs monthly

Contact Now

Detailed Product Description

Material:	20CrTiMn	Hardness:	58~63 HRC
Tensile Strength:	1860Mpa	Yield Strength:	1675MPa
Type:	2 Pcs Or 3 Pcs	OEM:	Available
Highlight:	post tension accessories , prestressed anchorage , post tensioning system

Prestressed Concrete Post Tensioning Material Working Anchor Wedge for Tension Jacking System

Description

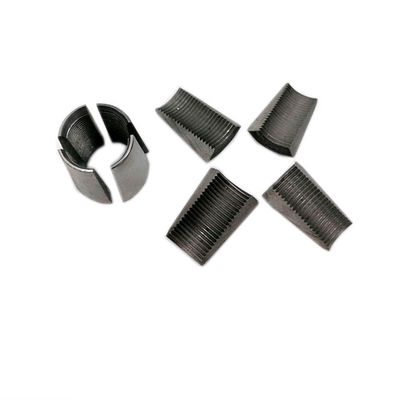

Metal concrete anchor wedge is a part of prestressed construction which including 2 pieces and 3 pieces.

Usually used with anchor head and PC strand. Our product with high quanlity and strong capacity, and you can

chooose tool wedge or working wedge as your demand. We have many kinds of size for choosing, like 15.24 mm,

12.9 mm, 7mm. 5mm, etc.

Specification

Product name	Post tension wedges
Application	highways, railways, bridges, building constructions
Certificate	ISO9001:2015
Raw material	20CrMnTi
Surface treatment	Heat treatment
Hardnees	HRA79.5-86
Type	2 pcs or 3 pcs
Packing	50 pcs put in one carton
Delivery time	10 days
Payment terms	T/T,L/C

Prestressed Concrete Post Tension Anchor Wedge For Tension Jacking System 0

Production Process

Prestressed Concrete Post Tension Anchor Wedge For Tension Jacking System 2

Our Service

1.Product design and recommendations for pre-sales.
2.Strict quality control,short delivery time,good package on -purchase service.
3.Professional and timely after-sales service.
