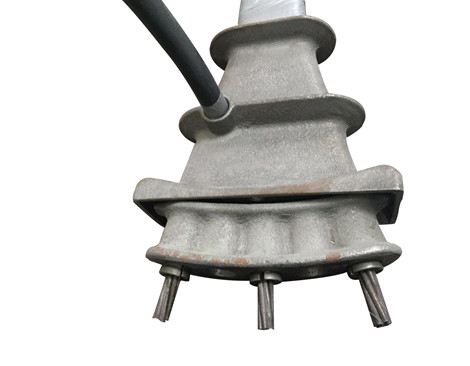

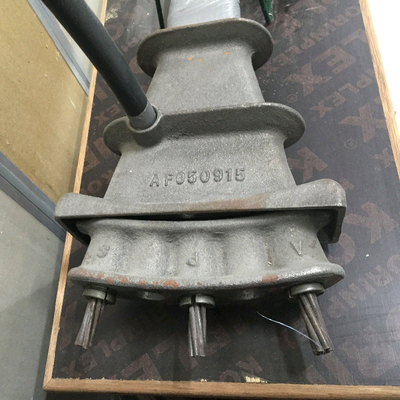

Post Tension Prestressing Anchorage Cast Iron Arc Slab Anchor 3.8kg / 2.3kg

Post Tension Prestressing Anchorage Cast Iron Arc Slab Anchor 3.8kg / 2.3kg

  • Post Tension Prestressing Anchorage Cast Iron Arc Slab Anchor 3.8kg / 2.3kg
  • Post Tension Prestressing Anchorage Cast Iron Arc Slab Anchor 3.8kg / 2.3kg
Post Tension Prestressing Anchorage Cast Iron Arc Slab Anchor 3.8kg / 2.3kg
Product Details:
Place of Origin: Mainland China
Brand Name: NC231
Certification: ISO9001,CE,SGS
Model Number: 231
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Can talk
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 80,000 pcs monthly
Contact Now
Detailed Product Description
Part Name: Slab Anchor Material: Cast Iron
Weight: 3.8kg / 2.3kg Height: 200mm/ 45mm
Length: 203.4mm /190mm Width: 79.3mm/ 45mm
Highlight:

Post Tension Prestressing Anchorage Cast Iron

,

Cast Iron Arc Slab Anchor 3.8kg

,

Cast Iron Arc Slab Anchor 2.3kg

Prestressed Anchorage Post-tensioning Cast Iron Arc Slab Anchorage



Product Details



Post Tension Prestressing Anchorage Cast Iron Arc Slab Anchor 3.8kg / 2.3kg 0

SPECIFICATION
Description 505 Anchor Block 505 Wedge Block
Material Cast iron Cast iron
Weight 3.8kg 2.3kg
Length 203.4mm 190mm
Height 200mm 45mm
Width 79.3mm 45mm



Features

Including anchor head, anchor wedge and anchor plate

Adopts the ductile iron material, and combines the traditional anchor head and the anchor plate into one,
which greatly simplifies the complicated machining process in the previous anchor tool processing

The utility model is characterized in that the tension end anchor is integrated with the anchor ring by ductile iron,
and the structure is compact and the anchoring is reliable.

The full length of the prestressing tendon can be completely closed.
Flat Shape, Mature Efficiency Design, Straight or Arc shape anchor head abailable 3, 4, 5 holes available;
Well Deburring and Chamfering; Galvanized or Chemical Dioxide Surface Treatment( Black).

Advantage: simple structure, Convenient installation, Good sealing performance, Used for unbonded prestressed building works

Our Service

Strict quality control system

Free sample

Customized product can be made

Offer professional consutation and and service

Packing and Shipping


1.Delivery within 10 days after prepayment;

2.Available ports: Qingdao, Tianjin,ect.

3.We will choose the fastest, cheapest and safest shipment way for you!

Post Tension Prestressing Anchorage Cast Iron Arc Slab Anchor 3.8kg / 2.3kg 1



FAQ



Q: Do you provide samples ? is it free or extra ?

A:Yes, we can offer samples free of charge. But the express cost should be on buyer's account.



Q:How long is your delivery time?

A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.



Q:What is your terms of payment?

A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
