Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge

Product Details:

Place of Origin:	Mainland China
Brand Name:	NC812
Certification:	ISO9001,CE,SGS
Model Number:	812

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	$0.6
Packaging Details:	Wooden Case
Delivery Time:	20 days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs

Contact Now

Detailed Product Description

Material:	40Cr	PC Strand Diameter:	12.7mm-15.24mm
Surface Treatment:	Electroplate	Length:	52mm
Sample:	Available	Inspection:	100%
High Light:	post tension accessories , prestressed anchorage , post tensioning system

Single Hole Anchorage / Anchor Barrel With Wedge Anchor Grip Wedge

Description

Single Hole Anchorage can be used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm/15.2mm.Other size standards can be customized, click customer service to contact us.

The hardness of anchorage: GB/T 14370-2015.

It has been verified by pratice that various type of CM-W anchor ,also can be used for the different kinds of strand wires which is ASTM/BS/JIS/JIG/AS and other international standards.

Product Details

Application	Highways,railways,bridges,building construcitons
Certification	ISO9001:2015
Raw material of wedge	20CrMnTi
Raw material of anchor head	40Cr
Surface treatment	Heat treatment
Hardnees of wedge	HRA79.5-86
Hardnees of anchor head	HRC20-33
Packing	Plastic bag+carton+wooden case
Delivery time	10 days
Payment terms	T/T,L/C

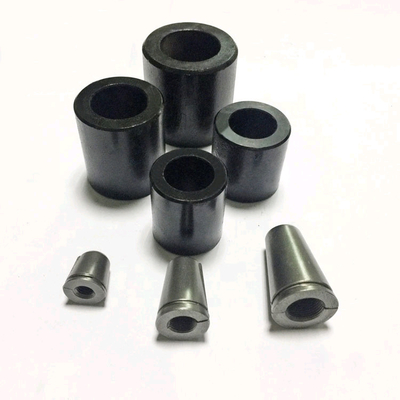

Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge 0

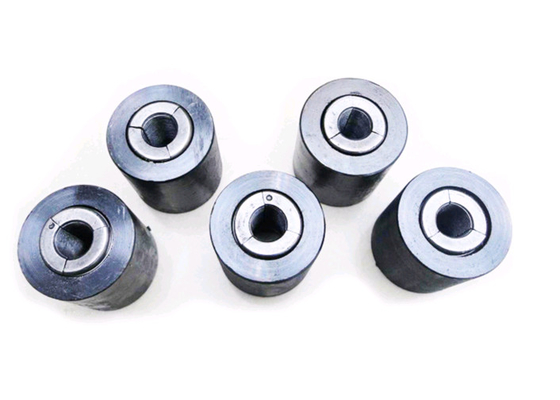

Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge 1

Quality Control

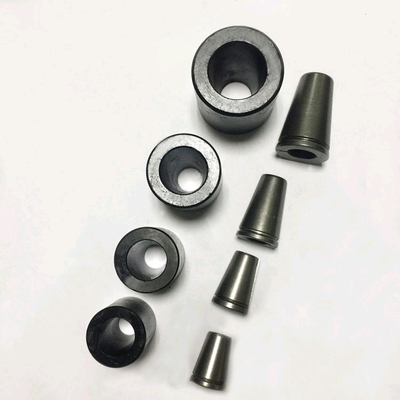

Single Hole Anchorage Post Tension Anchor Barrel With Wedge Anchor Grip Wedge 2

1 Raw material control

As the strategic partner and big customer of China's biggest steel company, Capital Steel Group, we have

stable suppliers and high quality raw materials.

2 ISO9001: 2000 certificate

All of our equipments, production flow, and quality control system have passed ISO9001: 2000 certificate since 1997.

3 Strict product test

There are 260 employees in our company, including 35 experts with engineer titles. We have 3 test laboratories,

15 quality control commissioners and 11 workshops to ensure the accomplishment of the export orders.

The leading end and tail end of every coil will be cut off and tested by advanced inspection equipments and the testing samples will be kept in storage till the pc strands of the same lot are used by customers.

FAQ

Q: Do you provide samples? Is it free or extra ?

A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.

Q:How long is your delivery time?

A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.

Q:What is your terms of payment?

A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
