Place of Origin: | Mainland China |
Brand Name: | NC761 |
Certification: | ISO9001,CE,SGS |
Model Number: | 761 |
Minimum Order Quantity: | 100 pcs |
---|---|
Price: | $1-50 |
Packaging Details: | Wooden Case |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 80,000 pcs monthly |
Type: | Wedge Anchor | Material: | Cast Iron |
---|---|---|---|
Color: | Black | Application: | PC Starnd,PC Wire |
Standard: | GB/T14370-2010 | ONE SET: | BEARING PLATE, ANCHORAGE BLOCK, WEGDE GRIPS |
High Light: | post tension accessories,prestressed anchorage |

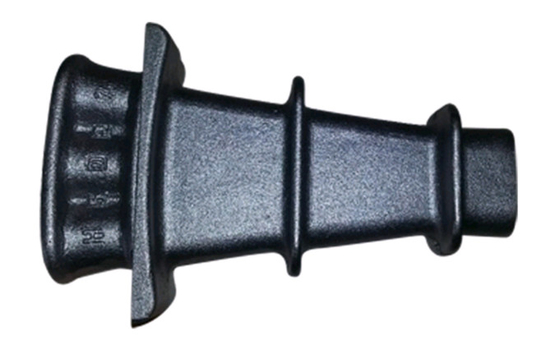

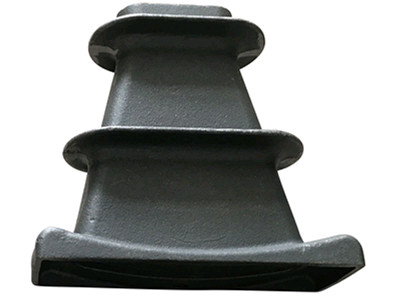

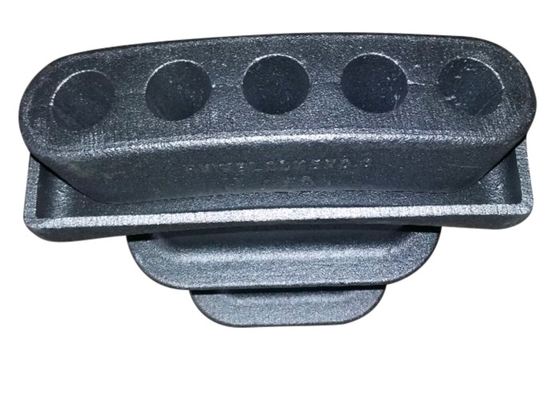

BM13-3 Post Tension Cast Iron Flat Slab Wedge Anchorage for PC Strand
Description
The material for flat arc anchor head and bearing plate are spheroidal graphite cast iron. Flat arc anchorage can be applied for stressing construction of bonded and unbonded prestressing projects, cast-in-site concrete structure, precast construction and various special structures.
Specification
Strand Dia | 0.5” (12.7mm) | 0.6”(15.2mm) | ||||||
No. of strand | 2 | 3 | 4 | 5 | 2 | 3 | 4 | 5 |
Anchor Head Type | SF205 | SF305 | SF405 | SF505 | SF206 | SF306 | SF406 | SF506 |
Ultimate tensile force per tendon, KN | 368 | 552 | 736 | 920 | 520 | 780 | 1040 | 1300 |
Stressing force at 0.8 U.T.S.,KN | 294 | 442 | 589 | 736 | 416 | 624 | 832 | 1040 |
Flat duct inside dimension | 50×19 | 60×19 | 70×19 | 90×19 | 50×19 | 60×19 | 70×19 | 90×19 |
Jack Type | YDC250 | YDC250 | YDC250 | YDC250 | YDC250 | YDC250 | YDC250 | YDC250 |
