Cold Forging Scaffolding Accessories Carbon Steel Spherical Seat Hex Nut

Cold Forging Scaffolding Accessories Carbon Steel Spherical Seat Hex Nut

  • Cold Forging Scaffolding Accessories Carbon Steel Spherical Seat Hex Nut
  • Cold Forging Scaffolding Accessories Carbon Steel Spherical Seat Hex Nut
  • Cold Forging Scaffolding Accessories Carbon Steel Spherical Seat Hex Nut
Cold Forging Scaffolding Accessories Carbon Steel Spherical Seat Hex Nut
Product Details:
Place of Origin: Mainland China
Brand Name: NC312
Certification: ISO9001,CE
Model Number: 312
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-50
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 250,000 pcs monthly
Contact Now
Detailed Product Description
Material: Carbon Steel Process: Forging
Application: Lock The Anchor System Surface Treatment: Plain, Zinc Plate, Black, HDG
Hardness: 25-30 HRC OEM: Available
High Light:

scaffolding parts

,

formwork accessories

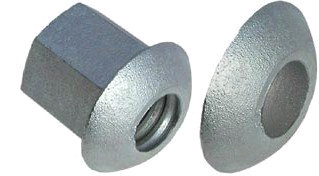

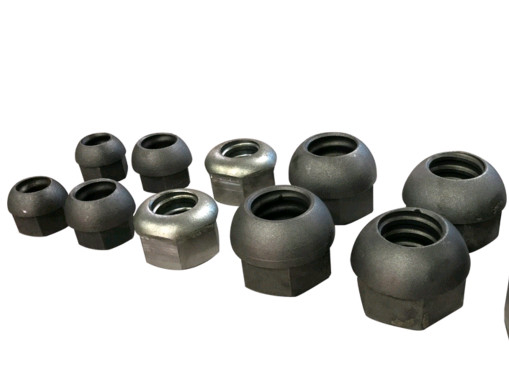

Cold Forging Carbon Steel Spherical Seat Hex Nut / Dome Achor Nut for Rock Bolt System



Description



Anchor nut is used to lock the anchor system, make sure the anchor string is fastened with anchoring site, there usually have hexagonal and spherical two designs.



Application



Tunnelling Ground engineering



1. Face stabilization

2. Radial systematic anchoring

3. Foundation for avalanche protect

4. Stabilization of tunnel portals

5. Spilling

6. Root piling



Product Specification

Cold Forging Scaffolding Accessories Carbon Steel Spherical Seat Hex Nut 0

Size SW (mm) L(mm) Unit weight (kg)
R25 41 41 0.30
R32 46 45 0.35
R32 46 65 0.45
R38 50 60 0.50
R51 75 70 1.55
T76 100 80 2.80
Spherical nut
Size SW(mm) L(mm) Unit weight (kg)
R32 46 45 0.45
R38 50 50 0.60
R51 75 70 1.60
T76 100 90 3.20
T30 46 35 0.42
T40 65 50 0.90
T52 80 70 2.20
T73 95 70 2.20
T103 125 80 3.40
T127 140 140 9.20

Steel grade As per request
Thread direction Left hand / Right hand
Thread standard ISO 10208 / ISO 1720/ Other international standards
Hardness (HRC) HRC25~HRC30
Features All nuts are machined and with chamfered edges to suit both domed plates and so



Cold Forging Scaffolding Accessories Carbon Steel Spherical Seat Hex Nut 1



Free samples and policy
Normaly sample orders will be ready in 5 working days,and dispatched by air by courier. Samples are available to our customers for free with prior notification.


Guarantees/ Warranties & Payment terms
Our company guarantees the quality of the products,and also guarantees the delivery date within 30 days.
The payment terms we accept are L/C at sight and T/T.


Professional Exporting support
Well-trained workers can provide assistance with insurance, shipping, inspection of quality and handling of export documentation.
