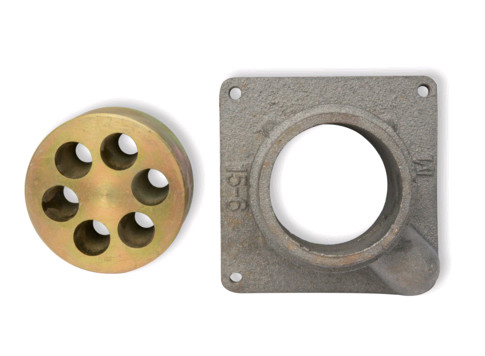

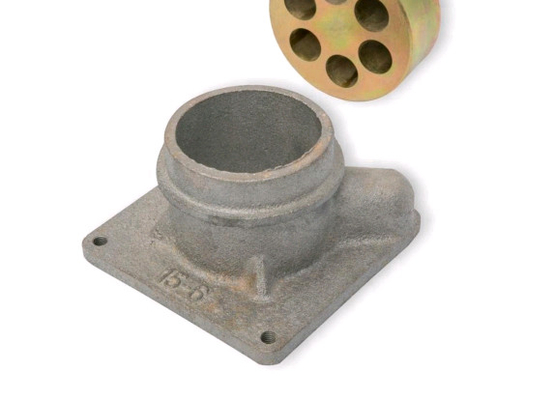

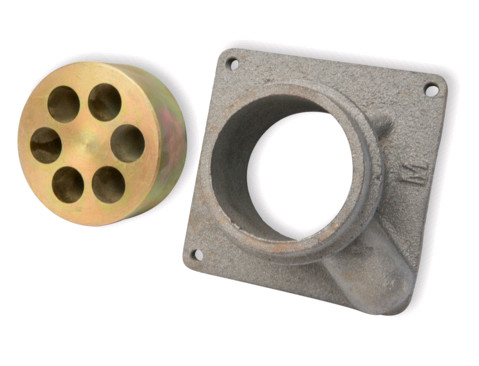

Prestressed Post Tension Anchor Cast Iron Round Anchor Bearing Plate
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Part Name: | Anchor Bearing Plate | Material: | Gray Iron |
|---|---|---|---|
| Application: | Concrete Construction | Type: | Round Anchor |
| Size: | Accept Customized | Samples: | Available |
| Highlight: | post tensioning system,post tension accessories |
||
Prestressed Post Tensioning Cast Iron Round Anchor Bearing Plate
Specification
| The Data Paraments of BM15 | |||||||||||
| Types | Flat Anchor Head | Flat Bellows | Flat Bearing Plate | Spiral Reinforcement | |||||||
| A | B | C | D | E | F | L | G | H | n | t | |
| BM15-2 | 80 | 46 | 52 | 22 | 160 | 70 | 140 | 160 | 100 | 5 | 45 |
| BM15-3 | 115 | 46 | 65 | 22 | 180 | 70 | 150 | 180 | 100 | 5 | 45 |
| BM15-4 | 150 | 46 | 74 | 22 | 220 | 80 | 210 | 220 | 100 | 5 | 45 |
| BM15-5 | 185 | 46 | 90 | 22 | 260 | 80 | 270 | 260 | 100 | 5 | 45 |
Features
1.Wide application: it is adaptable for stand with diameters of Φ'8, Φ'9, Φ'11, Φ'12.7, Φ'15.2 and Φ'18 with various strength from 1570Mpa to 2000Mpa as well as for high tensile steel wires with diameters of Φ'5, Φ'7 with the standard strength from 1570Mpa to 1860Mpa.
2.YJM anchoring system is available for full range of tendon sizes (1-55 strands). In addition, our company can produce anchorages of any type of arbitrary holes in accordance with demands of customers.
3.Good in terms of self-anchoring and easy operation;
4.High anchoring efficiency factor, stable and reliable;
3.Good in terms of self-anchoring and easy operation;
4.High anchoring efficiency factor, stable and reliable;
5.Be capable of repetitive stretching and strong in terms of anti-interference capability.
About Us
We are in production of prestressed machinery equipment products and anchor products. Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc. We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.
FAQ
Q: Do you provide samples ? is it free or extra ?
A:Yes, we can offer samples for free, but the express cost would be on buyer’s account.
Q:How long is your delivery time?
A:Generally it will be 5 to 15 days according to quantity and type of the products.
Q:What is your terms of payment?
A:We accept T/T, L/C, D/P and D/A. For T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
A:Yes, we can offer samples for free, but the express cost would be on buyer’s account.
Q:How long is your delivery time?
A:Generally it will be 5 to 15 days according to quantity and type of the products.
Q:What is your terms of payment?
A:We accept T/T, L/C, D/P and D/A. For T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
