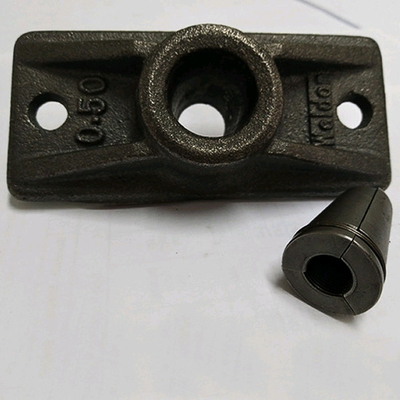

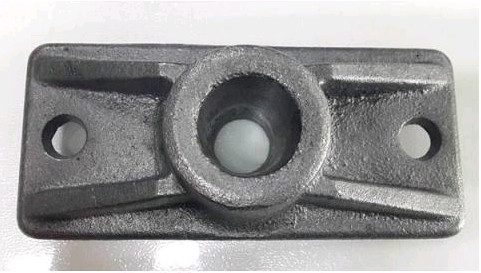

Single Hole MonoStrand Post Tension Anchor Gray / Black For Unbonded Strand
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Part Name: | Monostrand Anchor | Diameter: | 12.7mm, 15.24mm |
|---|---|---|---|
| Holes For Anchorage: | One Hole | Application: | For PC Strand |
| Color: | Gray Or Black | Sample: | Free |
| Highlight: | post tension accessories,prestressed anchorage |
||
Post-Tensioning Mono Anchor Casting Single Hole MonoStrand Anchor for Unbonded Strand
Description
Anchorage system is a completed, independent building measure researched, It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials. These products are composed of tensioning anchor, holding anchor, connectors. It can be used to lock the steel strand wires on/under classes of 2000MPa standard strength, which is usually in diameters of 12.7mm12.9mm15.2mm15.7mm.
The material for mono anchorage is spheroidal graphite cast iron, which puts traditional anchor ring and plates into one integration anchor. It simplifies the complicated manufacturing procedure and structure, which has the advantage of convenient construction, perfect sealability and easy to guarantee the perpendicularity between the anchorage and steel strands. And the cost will be saved more than 20%.
Specification
|
1. Type: anchorage system |
|
2. Capacity: HRC 15-35 |
|
3. Holes for anchorage: One hole |
|
4. Wedges: 2pcs or 3pcs |
|
5. Shape: round or flat |
|
6. Specification: Used for the PC steel strand 12.7mm and 15.24mm. |
| 7. Package: In box and outside wooden case |
|
8. Other parts for the anchor: anchor ring/plate, wedge, base plate, spiral bar, bellows/corrugated pipe. |
Company Information
Our products are extensively applied in many projects such as highways, railways, bridges, building constructions, hydroelectric projects, TV towers, large containers, rock anchors and ground anchors.
We have a great team to supply professional design, excellent servise, high quanlity products, fast delivery and on time after-sales, so that our products were sold to firms all over the word. And have more than 8 years experience for international trade. Welcome to cooperation with us to reach your high quanlity and best service request.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
