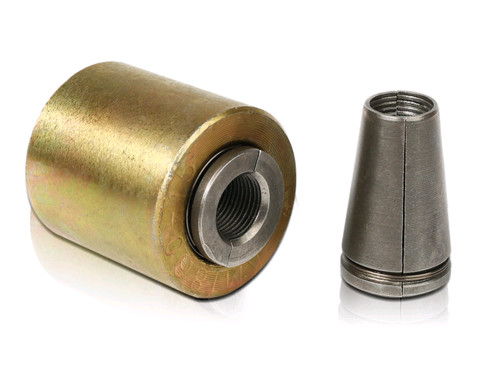

Single Hole Round Mono Post Tension Anchor Head Barrel And Wedge For Cables

Large Image : Single Hole Round Mono Post Tension Anchor Head Barrel And Wedge For Cables Get Best Price

Product Details:

Place of Origin:	Mainland, China
Brand Name:	NC771
Certification:	ISO9001,CE,SGS
Model Number:	771
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	$1-10
Packaging Details:	Crate
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	80,000 pcs monthly

Contact Now

Detailed Product Description

Application:	Building Construction	PC Strand Diameter:	12.7mm-15.24mm
Raw Material Of Anchor Head:	40Cr	Raw Material Of Wedge:	20CrMnTi
Surface Treatment:	Heat Treatment	Wedge Type:	2pcs Or 3pcs
Highlight:	post tensioning system , prestressed anchorage

Single Hole Prestressing Round Mono Anchor Head Barrel And Wedge for Cables

Description

Single Hole Anchorage can be used to lock the steel strand wires on/under classes of 2000Mpa standard strength,

which is usually in diameters of 12.7mm/15.2mm.Other size standards can be customized. It is suitable for steel strand of 2000 mpa or below the strength level. The clamping piece is for two types. In the repeated tensioning process, the clamping pieces are not easy to be cracked. It has a good tensioning performance,high efficiency of anchoring and a stable anchorage performance.

Product Details

Product name	Single hole prestressing post tension round anchor barrel and wedge for cables
Application	Highways,railways,bridges,building construcitons
Certification	ISO9001:2015
Raw material of wedge	20CrMnTi
Raw material of anchor head	40Cr
Surface treatment	Heat treatment
Hardnees of wedge	HRA79.5-86
Hardnees of anchor head	HRC20-33
Packing	Plastic bag+carton+wooden case
Delivery time	10 days
Payment terms	T/T,L/C

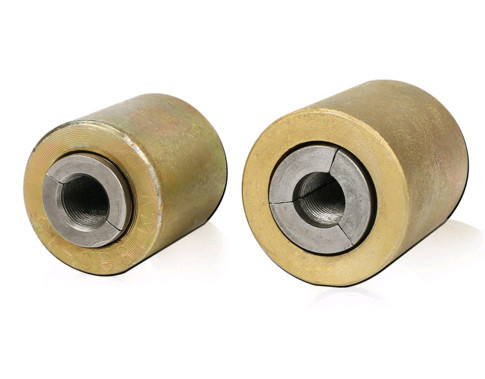

Single Hole Round Mono Post Tension Anchor Head Barrel And Wedge For Cables 0

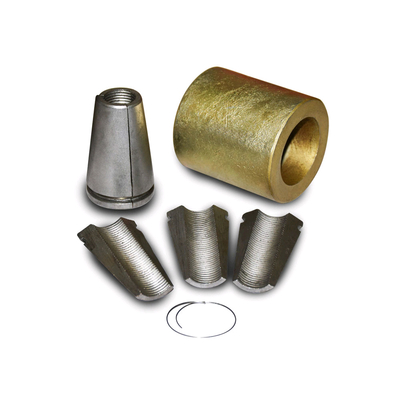

Single Hole Round Mono Post Tension Anchor Head Barrel And Wedge For Cables 1

Quality Control

Wide range application, it can anchor with standard strength of 1570Mpa-2000Mpa, with the diameter of 8mm,9mm,11mm,12.7mm,15.2mm,18mm pc strand and the high-strength steel wire with standard strength of 1570Mpa-1670Mpa, with the diameter of 5mm,7mm.

FAQ

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?

A: Yes, we could offer the sample but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shippment.
