Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage CE Approval

Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage CE Approval
Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage CE Approval Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage CE Approval Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage CE Approval

Large Image :  Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage CE Approval Get Best Price

Product Details:
Place of Origin: Ningbo,China
Brand Name: NC454
Certification: ISO9001,CE
Model Number: 454
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: $1-50
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 60,000 pcs per month
Detailed Product Description
Part Name: Concrete Anchor, Arc Flat Anchor Application: Concrete Construction Support
Material Of Anchor Head(Barrel): 45# Or 40Cr Or Cast Iron: 45# Steel Or Cast Iron Material Of Wedges: 20CrMnTi
Hardness Of Working Wedge(HRC): 50~100 Anchor Efficiency Coefficient: ≥0.95
Static Total Strain (Eapu): ≥2.0% Hardness Of Anchor Head(HRC): 20~35
Highlight:

post tensioning system

,

prestressed anchorage

Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage

The material for flat arc anchor head and bearing plate are spheroidal graphite cast iron. Flat arc anchorage can be applied for stressing construction of bonded and unbonded prestressing projects, cast-in-site concrete structure, precast construction and various special structures.



The anchoring system of spheroidal graphite cast iron integrated anchor is designed for unbonded PC strand based on the application of PC strand anchorage in recent 20 years in China.Its feature is that the anchorage at the tension end adopts the spheroidal graphite to integrate the bearing plate and anchor head.It has compact structure and reliable anchoring, Its performance meets the national requirements of GB/t14370-2000, and it is also applicable to 2000MPa PC strand.In addition, the biggest advantage of the anchoring system is that the full length of PC strand can be fully sealed.
Features

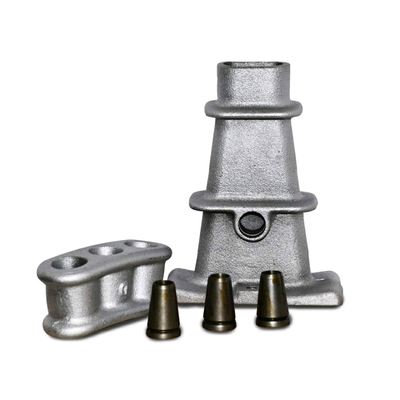

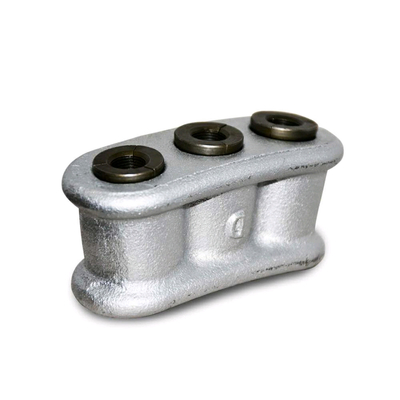

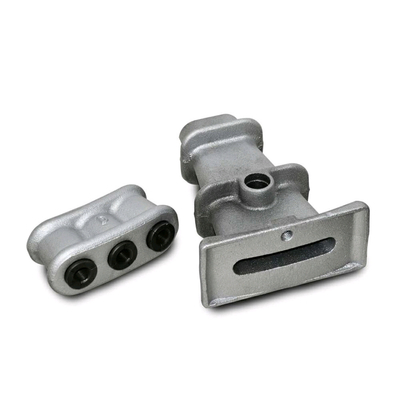

Including anchor head, anchor wedge and anchor plate
Adopts the ductile iron material, and combines the traditional anchor head and the anchor plate into one, which greatly simplifies the complicated machining process in the previous anchor tool processing
The utility model is characterized in that the tension end anchor is integrated with the anchor ring by ductile iron, and the structure is compact and the anchoring is reliable.
The full length of the prestressing tendon can be completely closed.
Flat Shape, Mature Efficiency Design, Straight or Arc shape anchor head abailable 3, 4, 5 holes available; Well Deburring and Chamfering; Galvanized or Chemical Dioxide Surface Treatment( Black).

Specification

Model Flat Anchor Head Flat Bearing Plate Flat Duct
A B C D E H J K
BJM15(13)C-3 115 48 50 160 80 130 60 22
BJM15(13)C-4 150 48 50 195 80 195 74 22
BJM15(13)C-5 185 48 50 230 80 270 90 22

Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage CE Approval 0
Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage CE Approval 1
Prestressed Post Tensioning Concrete Cast Iron Flat Arc Anchorage CE Approval 2
