Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete

I'm Online Chat Now
Certification
China Sunrise Foundry CO.,LTD certification
China Sunrise Foundry CO.,LTD certification
A very professional and responsible supplier that we have worked so far. Hope all thing goes well and have a bright future, keeping supply superior quality products to us all the time!

—— Jack

We have been working together about five years. Always can get very competitive price on cast iron parts. Sunrise Foundry is a very reliable supplier!

—— Peter

Sunrise Foundry is a good choice if you are searching for cast iron parts, they can provide professional advice on saving cost, meanwhile guaranteeing the quality. We get a lot of discount from them during these years business! Hope this would be helpful to you.

—— Steve

Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete

Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete
Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete

Large Image :  Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete Get Best Price

Product Details:
Place of Origin: Ningbo,China
Brand Name: NC445
Certification: ISO9001,CE
Model Number: 445
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: $1-50
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 60,000 pcs per month
Detailed Product Description
Part Name: Unbonded Flat Slab Anchorage Material: Material: Steel, Wedge: 20CrMnTi, Anchor Head: 40CrMnTi Steel
Hardness: Wedge:78-85HRA, Anchor Head: 25-36HRC Application: Concrete Post Tension/prestressing
Shape: Flat Surface Treatment: Anti-rust
Highlight:

post tensioning system

,

post tension accessories

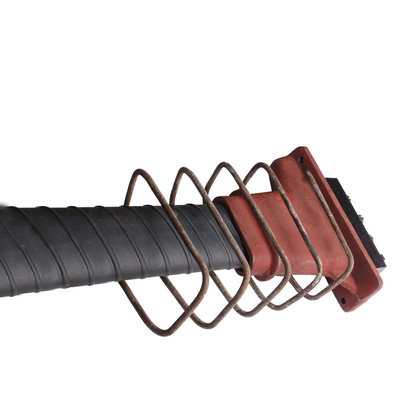

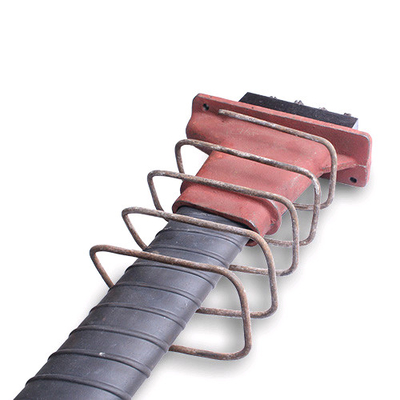

Post Tension Unbonded Flat Slab Anchorage for Building Prestressed Concrete



Description

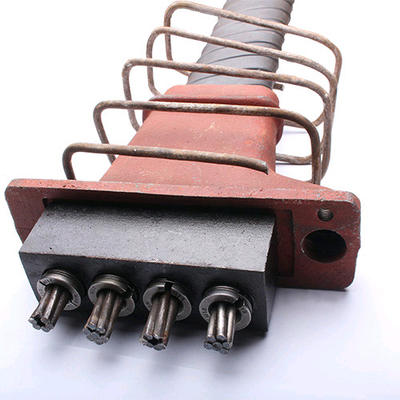

Flat stressing anchorage consist of flat working anchor head, working wedge ,flat anchor bearing plate and flat spiral reinforcement.



The products can be divided into two types,VLM15 and VLM13 according to their strand diameters.It can be used to anchorφ12.7~12.9㎜,φ15.2~15.9㎜,standard strength 1470~1960Mpa low relaxation and high strength PC strands, and can be also to 7φ5,7φ7,strength 1470~1770Mpa PC steel wires.



As the name suggest, it is the same as stressing anchorage, only that the shape is flat. Flat stressing anchorage is common on slab on grade, side walls of hollow core beams / girders, transverse post-tensioning on box girders deck and flat slab.



VLM has innovated a flat stressing jack (YDB series) to specially cater to this flat stressing anchorage.



Application



1. Used in pre-tension or post-tension for concrete constructions as building materials
2. Used in the upper plates of bridges
3. Used PC panels, high-pressure concrete water pipes, marine structures, towers and runways.
4. Used for multi-storey industrial/commerial/residential buildings, stadiums, coal mines and etc.



Specification



Its key part material:

slab anchorage head,swage socket 45# or 40Cr work gripper :20CrMnTi



Hardness: work anchorage head:

≤33HRC (306 HBS) work gripper :78~86HRA swage socket:≤25HRC (251HBS)

static load performance testing:

anchoring efficiency coefficient:ηa≥0.95;total strain:εapu≥2.0%



Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete 0

Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete 1



Related Products



Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete 2

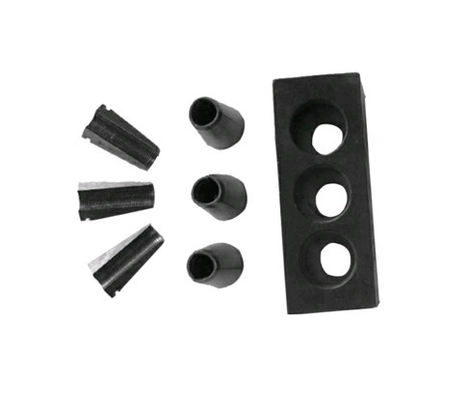

Wedge is made by high-class alloy steel 20CrMnTi. Its form is divided into two-chip and three-chip.

The system apply to the two-chip YM15 series, it can be used for round anchorage, flat anchorage,

but also used for porous coupler.



Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete 3

Anchor head is the key part of bearing the prestressing tension, The round anchor head is made by 45#

high-quality carbon construction steel, and the flat anchorage is made by 40Cr steel. Anchor head include

round anchor head and flat anchor head.



Anti Rust Flat Post Tension Anchor For Building Prestressed Concrete 4





Anchor bearing plate is to transfer the load from anchor head to concrete under anchor.

The method of transfer and distribution of stress affect the anti-cracking and load capacity of concrete.



Quality control

1. strictly follow ISO9001 standards, and the quality of products is controlled throughout the process.
2. all the raw materials will be tested before putting into the production.
3. all the finished products need to be tested before shipping. (Crack detection and measurement for all the anchor

heads and wedges, hardness test for the anchor heads and wedges, static load test ext)
4. Every three years, we will send our products to the national laboratory for testing of anchors.
