Stainless Steel Investment Lost Wax Valve Body Casting For Knife Gate Valve

Product Details:

Place of Origin:	Ningbo,China
Brand Name:	NC331
Certification:	ISO9001,CE
Model Number:	331
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	50 pcs
Price:	$1-50
Packaging Details:	Wooden Case
Delivery Time:	25 days
Payment Terms:	T/T, L/C
Supply Ability:	6000 pcs per month

Contact Now

Detailed Product Description

Part Name:	Knife Gate Valve Body	Material:	Stainless Steel
Media:	Water	Temperature Of Media:	Normal Temperature
Application:	General	Pressure:	Medium Pressure
Highlight:	valve parts casting , stainless steel sand casting

Stainless Steel Investment Lost Wax Casting Valve Body for Knife Gate Valve

Description

This series of valves are made up of manual, pneumatic and motor-driven gate straight valves, with reasonable design on structure and appearance is very excellent. Besides, they are with many advantages, such as stability, small size, durability, great sealing, long service life and so on, widely used in the ultra-high vacuum equipment.

Features

1. Valve bodies material is stainless steel, interior welded structure, leak rate is very lower;
2. Reinforced structure, small volume, light weight and good appearance;
3. Double-guide-rail bearing roller structure, smooth movement;
4. Integrated construction inside the valve and well-distributed holding power.

Technical Performance

Application scope: 1×10-5Pa~1.2×105Pa
Differential pressure before open valve plates ≤3×103Pa any direction
Leak rate of valves' body and base: 1.3×10-7Pa·L·s-1
Cycles until first maintenance: 20,000 times
Baking Temperate of valve bodies: opening≤200℃; Closed ≤150℃
Mounting position: Any position
Power supply: -pneumatic: AC220V 50Hz, 6W or DC24V, 3W

-motor-driven:

DN 63~250: AC220V 50Hz, 25W or DC380V 50Hz, 25W
(Special specification can be customized)
Compressed air (only supply to pneumatic valves) -DN 63~200:0.4~0.7MPa
-DN 250~400:0.5~0.7MPa
Speed of valve closing and opening: pneumatic≤6s;
electromagnetic: ≤50s;
Indications of valves' position: -manual valves:with indication of start and stop (mechanical type)
- pneumatic valves:with indication of start and stop (magnetic switch)
-electromagnetic-driven valves:with indication of start and stop (micro switch)

Specification

Product name	Stainless steel investment lost wax casting/carbon steel casting valve body
Applicable Material	casting iron,casting steel,ductil iton,gray iron,alloy steel
Certification	TS16949;ISO9001:2000;CE
Surface treatment	Electric-polishing,mirror polishing,electrostatic spray paint
Guarantee	one year against quality defects
End-use temperature of gray sand iron	-10℃~200℃
Casting Unit Weight	0.1Kg - 40000Kg
Packing	Valve Casing per unit packed in a plastic bag, each plastic bag to a carton. Or up to you
Payment Terms	T/T
Size and design	As per customers requirement or sample
As per customers requireme	+/-0.05mm

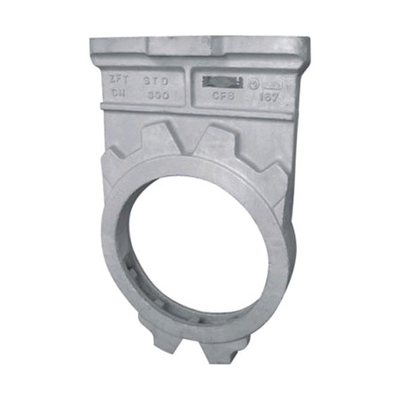

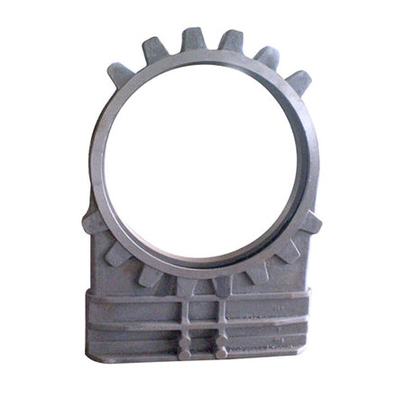

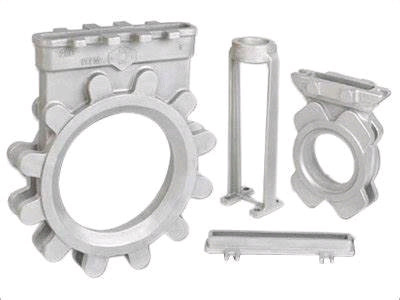

Stainless Steel Investment Lost Wax Valve Body Casting For Knife Gate Valve 0

Our Service

Professional design team and sales department for your service;
Factory recognized by 'CE/ISO9001' and so on;
7*24 service for you, all the question will be dealed within 24hours.

Advantages

1. Stable quality —— Coming from good materials and technic
2. Lower price —— Not cheapest but the lowest at the same quality
3. Good service —— Satisfactory service before and after sale
4. Delivery time —— 30-45 days for mass production
