Dn200 PN10 16 Wafer Butterfly Valve Body Casting For Valve Parts
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Part Name: | Wafer Butterfly Valve | Application: | Water Treatment |
|---|---|---|---|
| Pressure: | Medium Pressure | Structure: | Butterfly |
| Standard: | ANSI BS DIN JIS | Temperature Of Media: | Normal Temperature |
| Highlight: | valve parts casting,stainless steel sand casting |
||

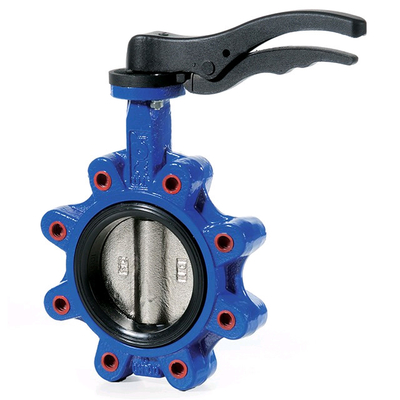

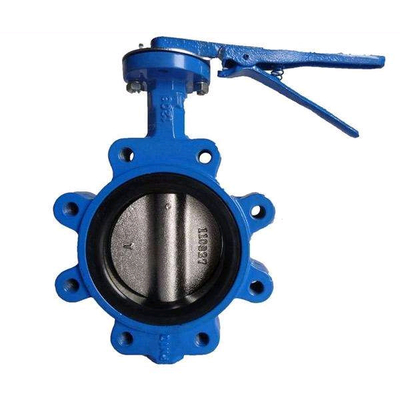

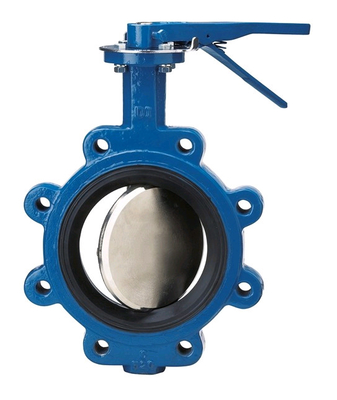

Dn200 PN10 16 Cast Ductile Iron Wafer Butterfly Valve Body for Valve Parts
Product Details
|
Material list
|
|
|
Part name
|
Materials
|
|
Body
|
Cast iron: ASTM A126CL.B, DIN1691 GG25, EN 1561 EN-GIL-200
|
|
Ductile iron: ASTM A53665-45-12, DIN 1693 GGG40, EN1563 EN-GJS-200
|
|
|
Stainless steel: ASTM A351 CF8, CF8M, CF3
|
|
|
Carbon steel: ASTM A216 WCB
|
|
|
Stem
|
Stainless steel: ASTM A276 type 316, 400, ASTM A582 type 416
|
|
Taper pin
|
Stainless steel: ASTM A276 type 304, type316, EN 14501
|
|
Seat
|
NBR, EPDM, Neoprene, viton
|
|
Disc
|
Ductile cast iron (nickel plated): ASTM A53665-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10
|
|
O-ring
|
NBR,EPDM,Neoprene,Viton
|
|
Bushing
|
PIPE Nylon lubricated bronze
|
|
Key
|
Carbon steel
|
|
Test
|
|
|
Working pressure
|
PN10, PN16, PN25
|
|
Shell pressure
|
1.5Mpa, 2.4Mpa, 27.5Mpa
|
|
Seat pressure
|
1.1Mpa, 1.76Mpa, 37.5Mpa
|
Features
1.Small in size and light in weight. Easy installation and maintenance.lt can be mounted wherever need.
2.Simple and compact construction, quick 90 degrees on-off
operation.
3.Minimized operating torque, energy saving.
4.Flow curve tending to straight line. Excellent regulation performance.
5.Long service life. Standing the test of tens of thousands opening/closing operations.
6.Bubbles tight sealing with no leakage under the pressure test.
7.Wide selection of material applicable for various medium.
|
Valve type
|
Wafer type
|
Connection Type
|
Wafer end
|
|
Actuator
|
Worm Gear
|
PN
|
10/16P
|
|
Body material
|
Ductile Iron
|
DN
|
100mm
|
|
Disc material
|
Ductile Iron
|
Color
|
Blue/Customized
|
|
Stem material
|
45#
|
Suitable temeperature
|
10~150℃
|
|
Sealing material
|
EPR
|
MOQ
|
1 Piece
|
|
Pin
|
With Pin
|
Suitable medium
|
water/Oil/Gas
|
|
Bolt
|
Stainless Steel
|
Port
|
Ningbo/Qingdao/Shanghai
|
Main Products
Products including butterfly valves, gate valves, ball valves, check valves, globe valves, Y type strainer, water power controlling valves and pressure regulating valves. With pressure rating ranging from 0.6Mpa to 10Mpa and port size from DN40 to DN3000. These valves can be operated manually, electrically, pneumatically, hydraulically, and elector-hydraulically, with reference to ANSI, API, DIN, BS, JPI, and JIS standards and China's GB standards. We have passed the ISO 9001, WRAS, national TS permit and CE certification.
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 35-50 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but customers need pay the cost of freight.
A: Generally it is 5-10 days if the goods are in stock. or it is 35-50 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but customers need pay the cost of freight.
