Post Tensioning Prestressing Round Anchor For Building And Bridge Concrete
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Post Tension/ Prestressing Construction | Type: | Round |
|---|---|---|---|
| Hardness: | Wedge:78-85HRA, Anchor Head: 25-36HRC | Material: | Wedge: 20CrMnTi, Anchor Head: 40CrMnTi Steel |
| Capacity: | 1860Mpa | Wedge Type: | 2 Pieces/set |
| Cable Diameter: | 15.24mm/12.7mm | ||
| Highlight: | post tension accessories,prestressed anchorage |
||

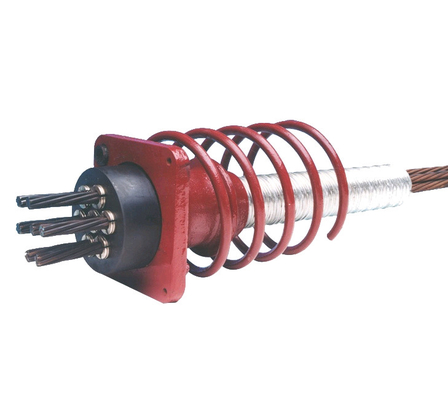

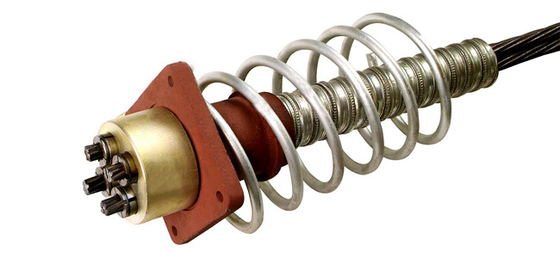

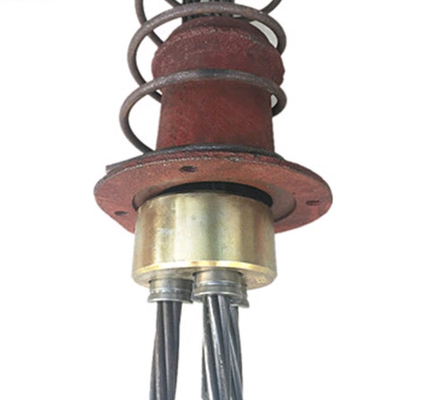

Post Tensioning Prestressing Round Anchorage for Building and Bridge Concrete
Description
The anchoring device used in prestressed concrete, is in post-tensioned structure or component, in order to keep the tendons of tension and passes it to the interior of the concrete anchor tool, also known as Flat anchor head.
Anchor Grips Features:
1. 3.8mm, 4mm, 5mm, 7mm, 9mm, 15mm and so on
2. Lock for steel wire for precast concrete line
3. Good price, durable quality, recycle use
Anchor Grips Usage:
This kind of anchorage is used in pre-tensile production, used for different size of steel wire in precast hollow core slab factory, beam and lintel making factory and so on.
Applications:
1. Used in pre-tension or post-tension for concrete constructions as building materials
2. Used in the upper plates of bridges
3. Used PC panels, high-pressure concrete water pipes, marine structures, towers and runways.
4. Used for multi-storey industrial/commerial/residential buildings, stadiums, coal mines and etc
Specification
| Product Name | Prestress Anchorage |
| Model number | VLM13(15) |
| Material | Wedge: 20CrMnTi, Anchor head: 40CrMnTi steel, Anchor bearing plate: HT200 |
| Hardness | Wedge:78-85HRA, Anchor head: 25-36HRC |
| Steel strand's diameter | 12.7mm/15.2mm |
| Wedge type | 2 Pieces/set |
| Certificate | ISO, SGS |
| Packing | Free fumigation wooden case |
| Produce Standard | Anchor wedge:Up to GB/T3077-2015, Anchor head: Up to GB/T3077-2015, Anchor bearing plate: Up to GB/T9439-88 |
| Full set including | anchor head, wedge, bearing plate, spiral reinforcement. |
| Test | Metallographic Analysis and Testing of magnetic particle flaw detection |
Geometry size : Accordance with the requirements of the drawings design. Hardness: working anchor head :60-108HRB(5-25HRC); wedge:74.5~85HRA(56-65HRC) Material: working anchor head :40Cr GB/T3077-1999 OR 45#GB/T699-1999 ; wedge: 20CrMnTi-GB/T3077-1999; anchor spacer:HT200 GB/T9439-2010; spiral reinforcement: Q235 GB/T700-2006 Static load test: Conform to the GB/T14370-2007 standard article 5.5.1.
FAQ
Q: Can the Buyers Visit the Factory? post tension anchor
A: Yes. We all think the best way to guarantee the quality of products.In some condition we could offer a Sample for the customer if you pay for the express cost
Q: What is The Payment way? post tension anchor
A: Both T/T payment and irrevocable L/C at sight. For the T/T payment, There has 30% prepayment in advance and the balance payable against copy of B/L.
Q: If accept OEM service to made product as per customer offering drawing?
A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan
A: Yes. We all think the best way to guarantee the quality of products.In some condition we could offer a Sample for the customer if you pay for the express cost
Q: What is The Payment way? post tension anchor
A: Both T/T payment and irrevocable L/C at sight. For the T/T payment, There has 30% prepayment in advance and the balance payable against copy of B/L.
Q: If accept OEM service to made product as per customer offering drawing?
A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan
