Prestress Concrete Post Tensioning System , Flat Slab / Arc Anchorage Block Bearings Plate
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Iron | Color: | Gray Or Black |
|---|---|---|---|
| Length: | 150mm/140mm | Height: | 152mm/45mm |
| Width: | 75mm/60mm | Application: | PC Starnd,PC Wire |
| Highlight: | post tensioning system,post tension accessories |
||

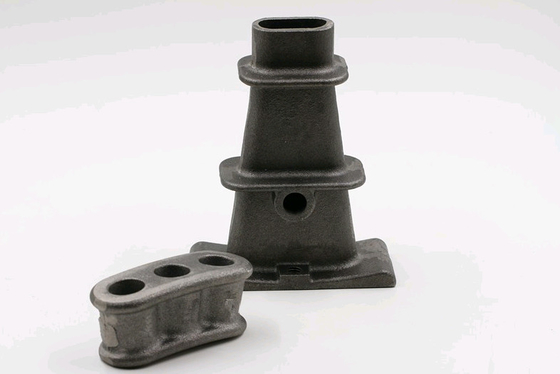

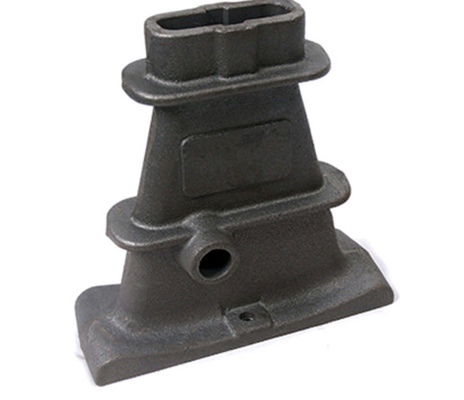

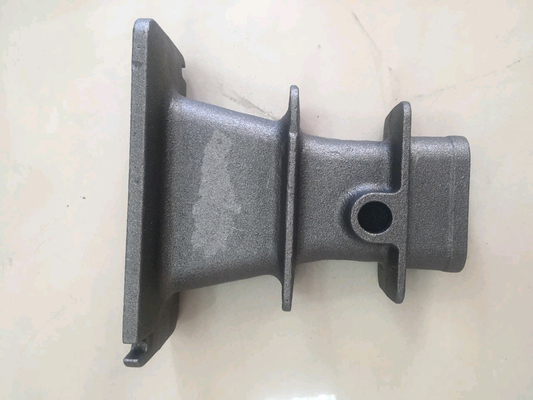

Prestress Concrete Flat Slab Anchorage / Flat Arc Anchorage Block Bearings Plate
Description
The material for flat arc anchor head and bearing plate are spheroidal graphite cast iron. Flat arc anchorage can be applied for stressing construction of bonded and unbonded prestressing projects, cast-in-site concrete structure, precast construction and various special structures.
Specification
|
Model
|
Flat Anchor Head
|
Flat Bearing Plate
|
Flat Duct
|
|||||
|
A
|
B
|
C
|
D
|
E
|
H
|
J
|
K
|
|
|
BJM15(13)C-3
|
115
|
48
|
50
|
160
|
80
|
130
|
60
|
22
|
|
BJM15(13)C-4
|
150
|
48
|
50
|
195
|
80
|
195
|
74
|
22
|
|
BJM15(13)C-5
|
185
|
48
|
50
|
230
|
80
|
270
|
90
|
22
|
|
Product Name
|
BM13-3 Post Tension Casting Material Flat Slab Anchorage and wedge
|
||
|
Material
|
Casting
|
||
|
Color
|
Black
|
||
|
Standard
|
GB/ISO/ASTM/SGS
|
||
|
Product Shape
|
Flat
|
||
|
Product Type
|
Multihole
|
||
|
Place of Origin
|
China Mainlan
|
||
|
Application
|
Bridge,Building,Highway,Railway,etc
|
||
Features
-100% Safety protection to installation worker.
-Tape and grout tube size can be redesigned according to customer’s requirement
-Meet GB/ISO/ASTM/SGS/AS Standard
FAQ
Q: Do you provide samples ? is it free or extra ?
A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.
Q:How long is your delivery time?
A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.
Q:What is your terms of payment?
A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.
Q:How long is your delivery time?
A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.
Q:What is your terms of payment?
A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
