Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage

Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage
Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage

Large Image :  Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage Get Best Price

Product Details:
Place of Origin: Ningbo,China
Brand Name: NC934
Certification: ISO9001,CE,SGS
Model Number: 934
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-50
Packaging Details: Wooden Case
Delivery Time: 25-30 days
Payment Terms: T/T, L/C
Supply Ability: 80,000 pcs per month
Detailed Product Description
Part Name: Dead End Extrusion Anchor Diameter: 12.7mm 15.2mm
Application: PC Strand, PC Wire Type: Concrete Anchor
Length: About 50mm Material: Steel
Standard: GB/T14370-2010
Highlight:

post tension accessories

,

prestressed anchorage

Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage



Application

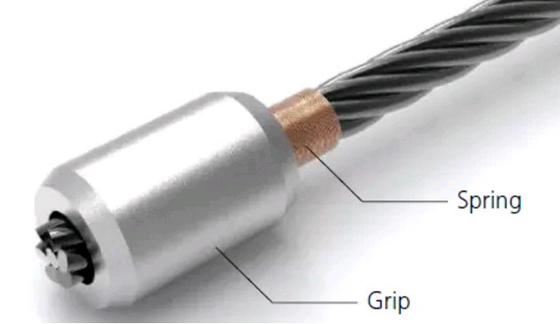

YJM dead-end anchorage can prestress the extruding anchorage on the strand by the barrel swager. It needs to be pre-casted into the concrete, stressed after the concrete freezing to the designed strength.



Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage 0



Features of YJM Anchors



The characteristics of YJM anchors are as the following:

1.Wide application: it is adaptable for stand with diameters of Φ'8, Φ'9, Φ'11, Φ'12.7, Φ'15.2 and Φ'18 with various strength from 1570Mpa to 2000Mpa as well as for high tensile steel wires with diameters of Φ'5, Φ'7 with the standard strength from 1570Mpa to 1860Mpa.

2.YJM anchoring system is available for full range of tendon sizes (1-55 strands). In addition, our company can produce anchorages of any type of arbitrary holes in accordance with demands of customers.

3.Good in terms of self-anchoring and easy operation;

4.High anchoring efficiency factor, stable and reliable;

5.Be capable of repetitive stretching and strong in terms of anti-interference capability.



Specification



Product Name
Manufacturer Price HRC 50-65 work wedge for sale
Material
45# or 40Cr
Color
Galvanized or Black
Standard
GB/ISO/ASTM/SGS
Product Shape
Round
Product Type
Single Hole
Place of Origin
Tianjin,China Mainlan
Application
Bridge,Building,Highway,Railway,etc



Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage 1



Related Products



Prestressed Post Tension Extruding Anchor PC Strand Dead End Anchorage 2



FAQ



Q: How long is your delivery time?



A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
