Iron Steel Hollow Grouting Self Drilling Rock Anchor Bolt for Underground Mining
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item Name: | Hollow Grouting Anchor Bolt | Material: | Iron Steel Or As Customers' Requirement. |
|---|---|---|---|
| Diameter: | 25-76mm | Capacity: | 180Kn-1600Kn |
| Standard: | ISO | HS Code:: | 82071300 |
| Highlight: | post tensioning system,post tension accessories |
||

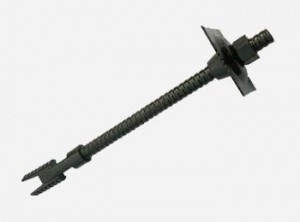

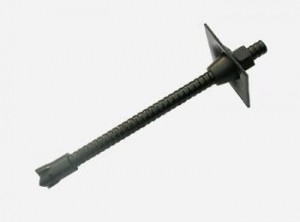

Iron Steel Hollow Grouting Self Drilling Rock Anchor Bolt for Underground Mining
Description
We are committed to researching and developing all kinds components for mineral equipment, construction machinery, prestressed machinery.
We offer Self Drilling Anchors in variants of R25, R32, R38, R51 and T76 and their accessories including the Anchor Nut, Anchor Plate, Anchor Coupler and Drilling bits depending on the geological condition of the project site (Type EX, EXX, ES, ESS, EY, EYY).
We can supply high quality and professional services. Warmly welcome your corporation from all fields and create a great future for us all.
Self-Drilling Anchor is a unique anchoring system and is today's Answer to the increasing demands of the tunnelling industry and ground engineering for safer and faster production.
The system provides advantages for all areas of its applications, where boreholes would require the
Time consuming drilling with casing systems in unconsolidated or cohesive soil.
Applications
It is usually applied in complex layer formation of broken rock, loosen soil, weathering rock where is difficult to make holes. It is good for supporting and improving surrounding rock, and can achieve good supporting effect in tunnel support, radial support and various types of slope treatment projects.
Features
1. Simple operation, easy to use, ensure that applying prestress could be
conducted.
2. Through the hollow rod to achieve high-pressure grouting, rock
reinforcement to improve project quality
reinforcement to improve project quality
3. Avoid the mortar loss when the traditional grouting tube pulled out.
4. Center is good, mortar can wrap the bolt body together, so that it can avoid corrosion to achieve a long-term supporting purpose.

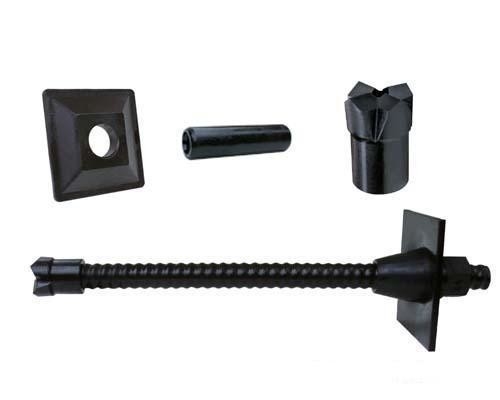

The Structure: alloy rod, grouting stopper, plate, nut and anchor head components.
Accessories: Fish Hooks, Barrel, wedge, Grouting tube, Breathing tube, Bearing plate.
Specification
| Size | Outer Dia. mm |
Inner Dia. mm |
Ultimate Load KN |
Yield Load KN |
Weight Kg/m |
| R25N | 25 | 12 | 200 | 150 | 2.3 |
| R32L | 32 | 20 | 210 | 160 | 2.9 |
| R32N/1 | 32 | 20 | 280 | 230 | 2.9 |
| R32N | 32 | 18 | 280 | 230 | 3.4 |
| R32S/1 | 32 | 18 | 360 | 280 | 3.4 |
| R32S | 32 | 14.5 | 360 | 280 | 4.1 |
| R38N/1 | 38 | 22.5 | 500 | 400 | 4.8 |
| R38N/2 | 38 | 21 | 500 | 400 | 5.5 |
| R38N | 38 | 19 | 500 | 400 | 6 |
| R38S/1 | 38 | 18 | 550 | 430 | 6.2 |
| R51L/1 | 51 | 37.5 | 550 | 450 | 5.6 |
| R51L | 51 | 36 | 550 | 450 | 7 |
| R51N/1 | 51 | 34 | 800 | 630 | 7.5 |
| R51N | 51 | 33 | 800 | 630 | 8.5 |
Working Site
Our Advantages
Rich Experience and Innovation.
Automatic Production.
Strict Quality Assurance: according to ISO, SGS, ASTM, AN / NZS standard.
