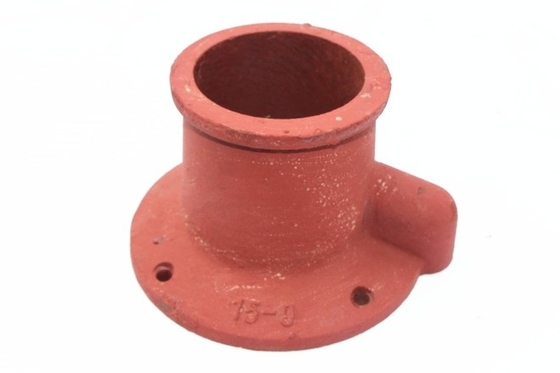

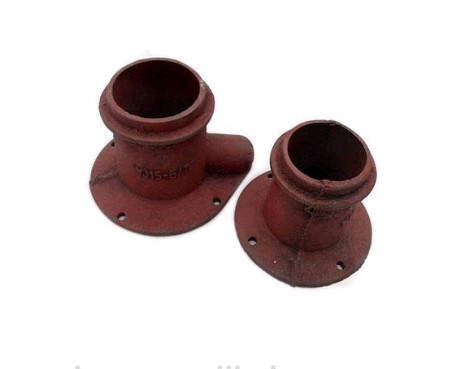

Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete

Product Details:

Place of Origin:	Ningbo China
Brand Name:	NC135
Certification:	ISO 9001
Model Number:	135

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Customized
Delivery Time:	25-30 days
Payment Terms:	T/T, L/C
Supply Ability:	80,000 pcs per month

Contact Now

Detailed Product Description

Type:	Wedge Anchor	Material:	Cast Iron
Color:	Black Or Natural Color	Application:	Bridge, Railway, Highway, Building
Related Parts:	Anchor Head,working Wedge,bearing Plate	Standard::	ISO9001
High Light:	post tensioning system , prestressed anchorage

Cast Iron Post Tension Anchor Concrete Anchor Plate Bearing Plate for Prestressed Concrete

Application

The construction concrete anchor plate is applied in prestressing concrete projects.
It is also adopted to reinforcing slope and landslides engineering.

1. Used in pre-tension or post-tension for concrete constructions.

2. Bridge construction, buildings and channel constructions.

3. Highway and railway constructions.

About Us

We are a Leading manufacturer of bridge bearings and expansion joints, prestressing anchorage systems including anchor head, wedge, anchor bearing plate.

Features

1. Advanced structure and easy operation.

2. High anchoring efficiency and reliable anchorage.

3. Safety and laborsaving and customized accepted.

4. Perfect performance and good quality.

5. Lightened weight and durability.

Specification

Model	Bearing Plate		Duct	Anchor Head		Spiral Reinforcement				Stressing Jack
	Square	Round	Internal Diameter	φE	F	φG	H	φI	N
	A×B	φA×B	Internal Diameter	φE	F	φG	H	φI	N
YJM15-1	80×20	φ80×20	35	45	48	80	30	8	4	QYC270
YJM15-2	130×85	φ135×80	50	83	48	120	40	8	4	YDC650
YJM15-3	130×87	φ135×85	50	87	48	120	40	10	4	YDC650
YJM15-4	140×92	φ137×100	55	97	48	140	50	10	4	YDC1100
YJM15-5	150×97	φ148×122	55	107	48	150	50	10	4	YDC1100
YJM15-6	165×115	φ167×136	70	122	50	170	50	12	4	YDC1500
YJM15-7	173×125	φ167×136	70	122	50	170	50	12	4	YDC1500
YJM15-8	180×130	φ177×150	80	137	53	190	50	12	4	YDC2500
YJM15-9	190×140	φ187×150	80	147	53	200	50	12	4	YDC2500
YJM15-10	195×150	φ210×160	90	157	53	205	55	14	4	YDC2500
YJM15-11	209×160	φ210×160	90	157	55	205	55	14	4	YDC2500
YJM15-12	210×160	φ210×185	90	167	55	230	55	14	4	YDC2500
YJM15-13	217×175	φ210×185	90	168	55	230	55	14	4	YDC3500
YJM15-14	225×175	φ235×185	90	177	58	240	55	14	4	YDC3500
YJM15-15	238×175	φ235×185	90	187	60	260	55	16	5	YDC3500
YJM15-16	238×175	φ235×185	90	187	60	260	60	16	5	YDC3500
YJM15-17	250×185	φ265×200	100	197	63	280	60	16	5	YDC3500
YJM15-18	270×185	φ265×200	100	197	63	280	60	16	5	YDC4000
YJM15-19	270×185	φ265×200	100	197	65	280	60	16	5	YDC4000
YJM15-22	295×245	φ285×260	120	217	70	290	70	18	5	YDC5500
YJM15-24	310×260	φ320×260	120	237	75	330	80	18	5	YDC5500
YJM15-27	310×300	φ300×300	120	237	80	330	90	18	5	YDC6500
YJM15-28/29	350×300	φ330×300	130	277	88	330	70	20	6	YDC6500
YJM15-30/31	350×300	φ330×300	130	277	88	350	70	20	6	YDC6500
YJM15-32/33/34	400×370	φ390×370	140	287	93	400	70	20	6	YDC6500
YJM15-35/36/37	400×370	φ390×370	140	287	98	400	70	20	6	YDC9000
