Flat Prestressed Multi Strand Anchorage Block Anchor Head Wedge 1860Mpa

Flat Prestressed Multi Strand Anchorage Block Anchor Head Wedge 1860Mpa

  • Flat Prestressed Multi Strand Anchorage Block Anchor Head Wedge 1860Mpa
  • Flat Prestressed Multi Strand Anchorage Block Anchor Head Wedge 1860Mpa
  • Flat Prestressed Multi Strand Anchorage Block Anchor Head Wedge 1860Mpa
Flat Prestressed Multi Strand Anchorage Block Anchor Head Wedge 1860Mpa
Product Details:
Place of Origin: Ningbo China
Brand Name: NC190
Certification: ISO 9001
Model Number: 190
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Customized
Delivery Time: 25 days
Payment Terms: T/T, L/C
Supply Ability: 150,000 pcs per month
Contact Now
Detailed Product Description
Type: Wedge Anchor Material: Steel
Diameter: M6~M24 Length: 40-300MM
Capacity: 1860Mpa Hardness: 78~85 HRA
Highlight:

post tensioning system

,

prestressed anchorage

Flat Prestressed Multi Strand Anchorage Block Anchor Head Wedge 1860Mpa



Flat Prestressed Multi-strand Anchorage Block Anchor Head Wedge for Post Tensioning Engineering



Description



Flat anchor are mainly used for bridge deck transverse prestressing, hollow slab, and low box girder, with which the stress distribution is more uniform and reasonable, further reducing the thickness of thin structure.

BM Flat Anchor consists of anchor head, bearing plate, anchor wedge, spiral reinforcement, plastic or metal corrugated ducts, PC strands.

Consist of BM Flat Anchor

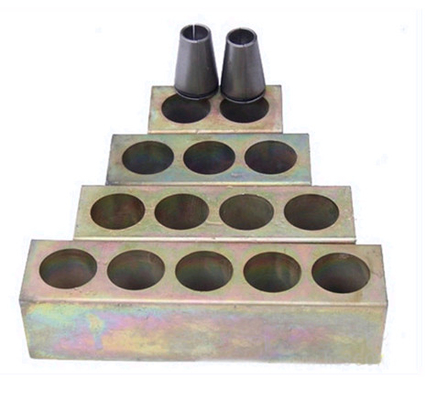

Flat Prestressed Multi Strand Anchorage Block Anchor Head Wedge 1860Mpa 0

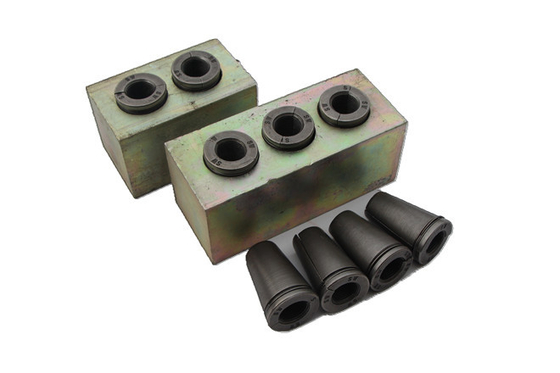

Flat Prestressed Multi Strand Anchorage Block Anchor Head Wedge 1860Mpa 1

TYPE BM13-2 BM13-3 BM13-4 BM13-5 BM15-2 BM15-3 BM15-4 BM15-5

ANCHOR

HEAD

(mm)

80

48

50

110

45

45

140

45

45

170

45

45

80

48

48

125

48

48

160

48

48

195

48

48

ANCHOR

PLATE

(mm)

140

150

80

150

160

70

175

200

70

200

230

70

140

150

80

150

190

80

185

220

80

215

285

80

CORRUGATED

DUCT(mm)

50

22

60

22

74

22

90

22

50

22

60

22

74

22

90

22



Application for Prestressed Multi-strand flat anchorage block



1. Prestressed concrete wedge anchorage post tensioning systems can be used efficiently in all applications of Building and Civil Engineering works.



2. The concrete anchorage systems are commonly used in bridge construction as well as other civil Engineering structures such as Silo, Water tank etc.



3. The strands are individually gripped in one anchor head unit and transmits their prestressing force by means of anchor plate casting unit type M.



4. For each anchor size a special spiral reinforcement is provided at the anchor plate casting to give adequate splitting reinforcement for bursting stresses developed at the anchorage zone.



5. The strands in tendon are stressed simultaneously by means of a multi strand stressing jack from capacity 1,100 KN up to 5,000 KN. In case of small size tendon unit such as type M405 the strands can also be stressed individually by means of mono jack.



6. To ensure corrosion protection and to give adequate bond strength, the tendons are filled with suitable cement grout mix after complete stressing of the strands.



FAQ



1. Q: Can the Buyers Visit the Factory?
A: Yes. We all think the best way to guarantee the quality of products.In some condition we could offer a Sample for the customer if you pay for the express cost.

2. Q: Where is Payment ways?
A: Both T/T payment and irrevocable L/C at sight. For the T/T payment, There has 30% prepayment in advance and the balance payable against copy of B/L.

3. Q: If accept OEM service to made product as per customer offering drawing?
A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan
