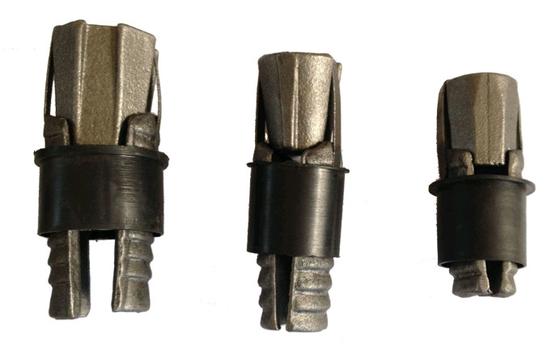

Iron Casting Scaffolding Fittings Rock Bolt Expansion Anchor With Expansion Shell

Iron Casting Scaffolding Fittings Rock Bolt Expansion Anchor With Expansion Shell

Application

Expansion shells are used for fixing single-sided shuttering or similar structures in rock, concrete or comparable load-bearing ground.
The expansion shells hold in any rock strata which is sufficiently competent to provide an adequate anchorage. They are designed to anchor in soft ground or hard rock. In good strata the anchorage exceeds the ultimate strength of the steel bolt. All expansion shells require a competent strata in the anchor zone. The suitability of the anchorage and the specific expansion shell to be used is best determined by physical load testing. The expansion shells feature parallel contact with the hole wall with sharp serration’s on the outside leaves ensure positive holding power.

About Our Factory

We have been supplying wing nuts, tie rod, water stop, hex. nuts, bar couplers, rapid clamps, frame formwork clamps, jack base, U head jack, prop nuts, prop sleeves, and other scaffolding fittings for more than 25 years.

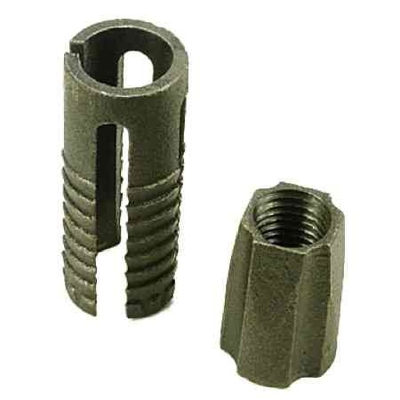

The consist of Expansion Shell and how it works

Product Details

Related Products

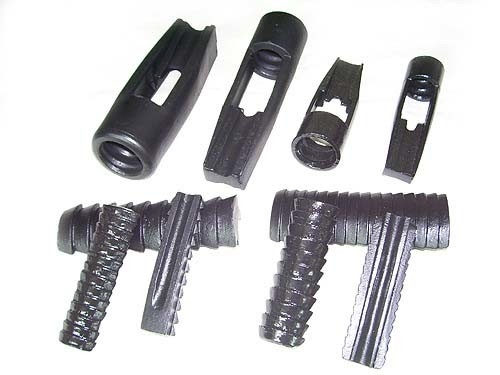

Expansion shell, rock bolt, bearing plate, washer, mechanical bolt, coupling bolt.

Our Advantages

1. Our factory has been making mining and building accessories for more than 25 years.

2. We are manufacturer. Direct communication with our engineer.

3. We can forging and casting parts as per your drawing and technical requirements.

4. Quality certificate: SGS ISO9001, TS16949, CE.

5. All of our parts are 100% inspection.

6. The price is very reasonable with superior quality.
