Place of Origin: | Ningbo,China |
Brand Name: | NC172 |
Certification: | ISO9001,CE |
Model Number: | 172 |
Minimum Order Quantity: | 1 pcs |
---|---|
Packaging Details: | wooden case |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 80,000 pcs per month |
Product Name: | Coulter Blade | Production Process: | Investment Casting |
---|---|---|---|
Surface Treatment: | Powder Coated | Color: | Customized |
Application: | Agricultural Products Processing | Product Name: | Precision Investment Castings |
High Light: | steel investment casting,investment and precision casting |

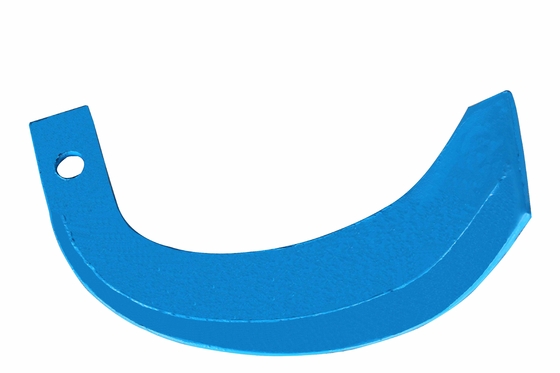

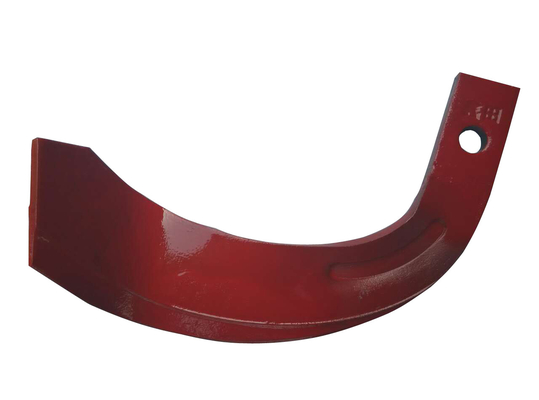

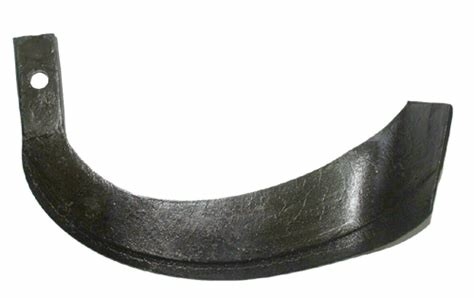

Precision Metal Casting Agricultural Rotary Cultivator Blades / Rotary Tiller Blade
Application
Agricultural Products Processing, Farmland Infrastructure, Planting and Fertilization, Grain Threshing, Cleaning and Drying
Description: The rotary tiller is adopted middle gear transmission system, mounted with the tractor of 12-80hp. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc. during operation.
Specification
Size | Standard |
Material | 65mn |
Color | Black+red +green |
Weight | 450g |
MOQ | 10 pieces |
Packing | 14 Pcs/CTN |
Payment term | L/C T/T |
Delivery Way | Sea Shipping |
Delivery Time | Advanced 25 days |
Certificate | ISO9001 |
Selling Market | All over the world |
Sample | One sample accept, sample fee by customer |
Material Grade
Material | chemical composition table | ||||||
C(%) | Si(%) | Mn(%) | Cr(%) | P(%) | S(%) | B | |
65Mn | 0.62-0.70 | 0.17-0.37 | 0.9-1.20 | <=0.25 | <=0.015 | <=0.035 | |
60Si2Mn | 0.56-0.64 | 1.50-2.00 | 0.69-0.90 | <=0.35 | <=0.035 | <=0.035 | |
55Si7 | 0.52-0.60 | 1.50-2.00 | 0.69-0.90 | <=0.35 | <=0.035 | <=0.035 | |
28SiMnB | 0.24-0.32 | 0.60-1.00 | 1.20-1.60 | 0.014 | 0.015 | 0.0005-0.0035 | |
30MnCrB5 | 0.26-0.34 | <=0.4 | 1.10-1.40 | 0.3-0.6 | <=0.025 | <=0.035 | 0.0008-0.005 |
Sup9 | 0.52-0.60 | 0.15-0.35 | 0.65-0.95 | 0.65-0.95 | <=0.030 | <=0.30 |
Production Process
Steel Casting Application
Oil And Gas Product, Forestry Products, Heat Exchanger, Mining Products, Stainless Steel Impeller, Wench Drums, Blade Propeller, Ingot Molds, Spur Gear, Cutter Edge, Gear Housing, Plumbs, Mining Machinery Parts, Buckets Teeth, Components Of Forklift, Earthmoving Machinery Parts, earthmoving Machinery Parts, Forked Parts, Parts Of Forklift Replacement, Pipe Clamp, Impeller, Spring End Pad, Plug Valve, Impeller Casting, Hook Lock, Gear Castings
Transmission Shaft Casting Of Auto, Spring Seat, Equalizer Hanger, Lever Of High Speed Train, Vibration System On The Bottom Of Hopper, Mounting Block, Automobile Parts, Top Plate For Axle, Mounting Block, Ship Fittings Casting, Ship Casting, Auger Drill, Components Of Furnace, Electric Machine & Hardware Fittings, Machinery Accessories, Hydraulic Pressure Pump, Bearing Seat, Pawl.
Thrust Ring, Valve Body, Flanged End Gate Valve, Valve Slab Gate, Support Ring, Bearing Housing, Idler Wheel, Clamp, Mounting Bracket, Wheel Hub, Wedge Socket, Track Pad For Mining Equipment, Hydraulic Rod Yoke, Assembly Line Component, Digger Tooth, Compaction Unit Component, Wire Rope Socket, Tilt Anchor, Shackle, Mooring Casting, Male Locking Casting, Deck Cleat, Truck Frame Component.
