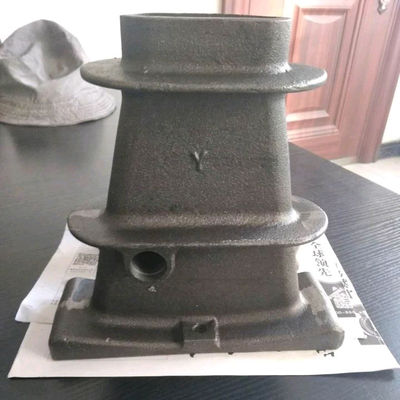

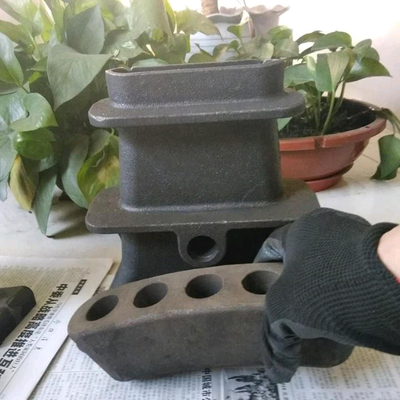

Prestressed Concrete BM13-3 Post Tension Anchor Casting Iron Flat Slab Anchorage

Prestressed Concrete BM13-3 Post Tension Anchor Casting Iron Flat Slab Anchorage

    • Prestressed Concrete BM13-3 Post Tension Anchor Casting Iron Flat Slab Anchorage
    • Prestressed Concrete BM13-3 Post Tension Anchor Casting Iron Flat Slab Anchorage
  • Prestressed Concrete BM13-3 Post Tension Anchor Casting Iron Flat Slab Anchorage

    Product Details:

    Place of Origin: Mainland China
    Brand Name: NC549
    Certification: ISO9001,CE,SGS
    Model Number: 549

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pcs
    Price: Can talk
    Packaging Details: Crate
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 80,000 pcs
    Contact Now
    Detailed Product Description
    Item Name: Flat Slab Anchorage Material: Ductile Iron
    Diameter: 12.7mm, 15.2mm, Etc Standard: GB/T 14370
    Hardness: Hrb50-100 Inspection: 100% Before Shipment

    Prestressed Concrete BM13-3 Post Tension Casting Iron Flat Slab Anchorage



    Product Description

    The anchoring system of spheroidal graphite cast iron integrated anchor is designed for unbonded PC strand based on the application of PC strand anchorage in recent 20 years in China.Its feature is that the anchorage at the tension end adopts the spheroidal graphite to integrate the bearing plate and anchor head.It has compact structure and reliable anchoring, Its performance meets the national requirements of GB/t14370-2000, and it is also applicable to 2000MPa PC strand.In addition, the biggest advantage of the anchoring system is that the full length of PC strand can be fully sealed.



    Product Specification



    Type BM-13-3 BM-13-4 BM-13-5 BM-15-3 BM-15-4 BM-15-5
    A B C E H J
    Anchor Head(mm) 110
    45
    45
    140
    45
    45
    170
    45
    45
    80
    48
    48
    160
    48
    48
    195
    48
    48
    Anchor Plate(mm) 150
    160
    70
    175
    200
    70
    200
    230
    70
    150
    190
    80
    185
    220
    80
    215
    285
    80
    Spiral duct(mm) 62
    22
    74
    22
    90
    22
    50
    22
    74
    22
    90
    22

    Prestressed Concrete BM13-3 Post Tension Anchor Casting Iron Flat Slab Anchorage



    FAQ



    Q: Do you provide samples? Is it free or extra ?

    A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.

    Q:How long is your delivery time?

    A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.

    Q:What is your terms of payment?

    A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.
