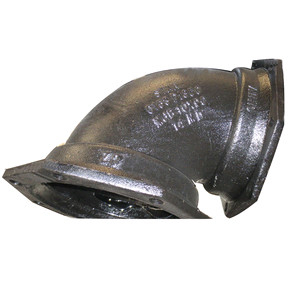

DI AWWA C153 Ductile Iron Pipe Fitting MJXMJ 90 Degree Elbow Bitumen Painting

DI AWWA C153 Ductile Iron Pipe Fitting MJXMJ 90 Degree Elbow Bitumen Painting

  • DI AWWA C153 Ductile Iron Pipe Fitting MJXMJ 90 Degree Elbow Bitumen Painting
  • DI AWWA C153 Ductile Iron Pipe Fitting MJXMJ 90 Degree Elbow Bitumen Painting
DI AWWA C153 Ductile Iron Pipe Fitting MJXMJ 90 Degree Elbow Bitumen Painting
Product Details:
Place of Origin: Mainland China
Brand Name: NC119
Certification: ISO9001,CE,SGS
Model Number: 119
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Can talk
Packaging Details: Wooden Case
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 90,000 pcs monthly
Contact Now
Detailed Product Description
Material: Ductile Iron ASTM A536 Process: Iron Casting
Finish: Bitumen Painting Standard: AWWA C153
Inspection: 100% Sample: Available
High Light:

pipe fitting components

,

ductile iron pipe fittings

DI AWWA C153 Ductile Iron Pipe Fitting MJXMJ 90 Degree Elbow



Product Details



Material: ductile iron ASTM A536
Size range: DN 80-2600mm
Working pressure: 350 psi for 100mm~600mm; 250psi for 750mm~2600mm
Manufacture standard: ANSI/AWWA C153
Casting method: lost foam technique
Testing according to ANSI/AWWA C153/A21.53
Annual capacity: 5,000 tons
Coating: FBE/cement lining with zinc bitumen coating/zinc+ bitumen inside and outside/customers’ requirement
Accessories: SBR/EPDM rubber(ANSI/AWWA C111/A21.11) gaskets, T-bolts and nuts(low ally steel ANSI/AWWA C111/21.11), and gland, etc.
Package: standard wooden/steel pallets/customers’ requirements
Easy installation at site and service free for life



Product Show

DI AWWA C153 Ductile Iron Pipe Fitting MJXMJ 90 Degree Elbow Bitumen Painting 0

FAQ



Q: How long is your delivery time?



A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?



A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
