45 Degree Short Radius Elbow 350Di Ductile Iron AWWA C153 6" MJ Resin Sand Cast

45 Degree Short Radius Elbow 350Di Ductile Iron AWWA C153 6" MJ Resin Sand Cast

    • 45 Degree Short Radius Elbow 350Di Ductile Iron AWWA C153 6" MJ Resin Sand Cast
    • 45 Degree Short Radius Elbow 350Di Ductile Iron AWWA C153 6" MJ Resin Sand Cast
    • 45 Degree Short Radius Elbow 350Di Ductile Iron AWWA C153 6" MJ Resin Sand Cast
  • 45 Degree Short Radius Elbow 350Di Ductile Iron AWWA C153 6" MJ Resin Sand Cast

    Product Details:

    Place of Origin: Mainland China
    Brand Name: NC812
    Certification: ISO9001,CE,SGS
    Model Number: 812

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: Can talk
    Packaging Details: Crate
    Delivery Time: 20 days
    Payment Terms: T/T, L/C
    Supply Ability: 80,000 pcs monthly
    Contact Now
    Detailed Product Description
    Name: 45 Degree Short Radius Elbow Material: Ductile Iron ASTM A536
    Finish: Bitumen Painting Process: Resin Sand Cast
    Application: Drainage / Sewage / Water Pressure: 350/250/150 PSI

    Ductile Iron AWWA C153 6" MJ 45 Degree Short Radius Elbow 350Di



    Product Details



    Material: ductile iron ASTM A536
    Size range: DN 80-2600mm
    Working pressure: 350 psi for 100mm~600mm; 250psi for 750mm~2600mm
    Manufacture standard: ANSI/AWWA C153
    Casting method: lost foam technique
    Testing according to ANSI/AWWA C153/A21.53
    Annual capacity: 5,000 tons
    Coating: FBE/cement lining with zinc bitumen coating/zinc+ bitumen inside and outside/customers’ requirement
    Accessories: SBR/EPDM rubber(ANSI/AWWA C111/A21.11) gaskets, T-bolts and nuts(low ally steel ANSI/AWWA C111/21.11), and gland, etc.
    Package: standard wooden/steel pallets/customers’ requirements
    Easy installation at site and service free for life

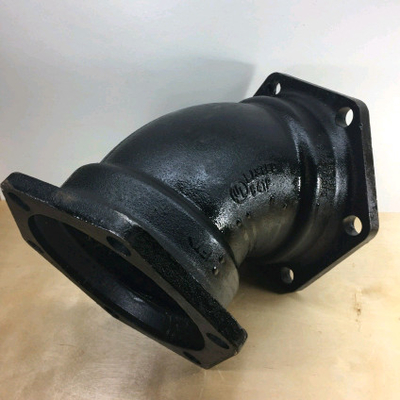

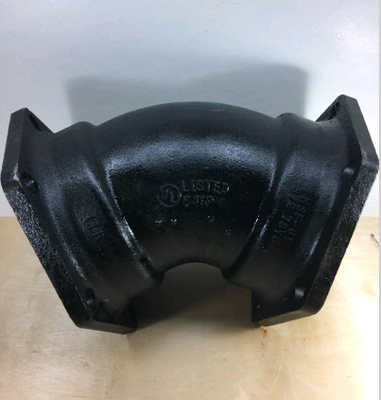

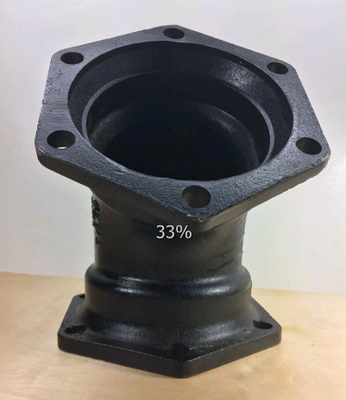

    Product Show



    45 Degree Short Radius Elbow 350Di Ductile Iron AWWA C153 6" MJ Resin Sand Cast



    Main Market



    Our main market is African, Middle East Countries, South American, Asian.

    Our Service: Being positive, optimistic, confident, we are moving forward towards a bright future together.

    We will do all we can to offer high quality products and first-class service to our customers.

    We are looking forward to establish long-term business relationship with more companies.



    FAQ

    Q: How long is your delivery time?

    A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q: What is your terms of payment ?

    A: T/T in advance, balance before shipment.
