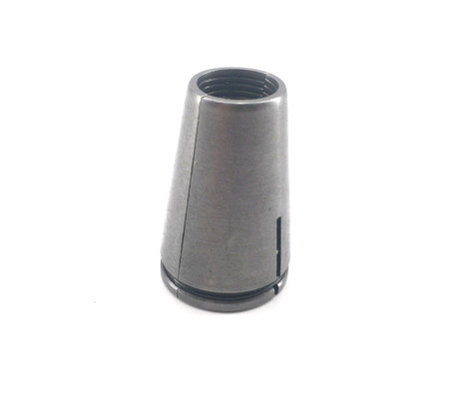

Concrete Anchorage Post Tension Anchor Post Tension Wedge For 12.7mm Dia PC Strand

Concrete Anchorage Post Tension Anchor Post Tension Wedge For 12.7mm Dia PC Strand

    • Concrete Anchorage Post Tension Anchor Post Tension Wedge For 12.7mm Dia PC Strand
    • Concrete Anchorage Post Tension Anchor Post Tension Wedge For 12.7mm Dia PC Strand
    • Concrete Anchorage Post Tension Anchor Post Tension Wedge For 12.7mm Dia PC Strand
  • Concrete Anchorage Post Tension Anchor Post Tension Wedge For 12.7mm Dia PC Strand

    Product Details:

    Place of Origin: Mainland China
    Brand Name: NC565
    Certification: ISO9001,CE,SGS
    Model Number: 565

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: $0.58
    Packaging Details: Plywood
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 80,000 pcs monthly
    Contact Now
    Detailed Product Description
    Materials: 20CrMnTi Type: 2 Pcs Or 3pcs
    Tensile Strength: 1860Mpa Yield Strength: 1675MPa
    Hardness: 58~63 HRC OEM: Available

    Concrete Anchorage Post Tension Wedge for 12.7mm Dia PC Strand

    Specification



    Production Process
    Forging
    Type
    two or three parts
    material
    20CrMnTi
    Inspection
    Flaw detection,Deoxidation
    Surface hardness
    HRA79-84
    Core Hardness
    HR38-46

    Carbonitriding Layer Depth

    0.35-0.6mm/0.6-0.8mm
    Metallographic Analysis
    Carbonitride, Tempered,Retained Austenite


    Description


    Wedge anchor

    The wedge anchor uses the wedge principle to anchor the strand, that is, wedge-shaped clamping piece wedges strand into the wedge-shaped taper hole of anchor plate, when using jack to tension the strand, after achieving the designed stress value, the jack is slowly released, the anchor of the wedge is retracted into the tapered hole of the anchor plate to form an anchor unit by strand, the stress of the steel strand passes the anchor plate to the building structure to form a permanent prestress.

    FORGING


    Improve the metallographic structure to increase the strength,and after the machining, we will do inspection of flaw detection and deoxidation, in order to guarantee quality

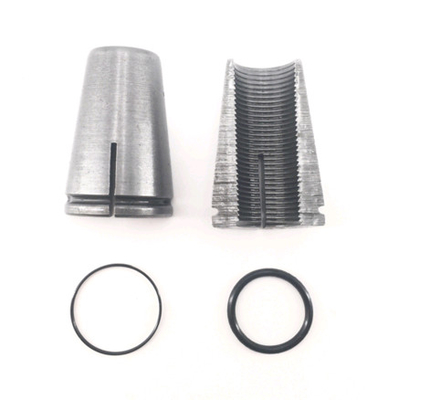

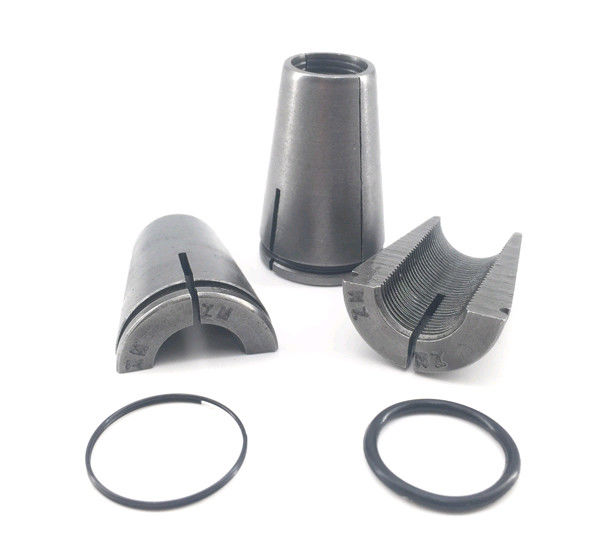

    Post Tensioning wedges



    Teeth Thread can produce base on your drawing or sample.
    Its mainly used for post-tensioned construction in prestressed concrete structures and components.


    Surface Finish:Tapered Bore Ra 0.8,the Rest of Ra3.2.
    Surface Hardness:HRA79-84

    used together will all kinds of prestressed concrete steel strand and wire ,has good performance of self-anchored tensioned.


    Concrete Anchorage Post Tension Anchor Post Tension Wedge For 12.7mm Dia PC Strand
    Concrete Anchorage Post Tension Anchor Post Tension Wedge For 12.7mm Dia PC Strand

    wedge model

    using for pc stand size

    M13 12.7mm,12.5mm & 12.9mm
    M15 15.2mm or 15.24mm,15.7mm
    M18 17.8mm
    M22 21.6mm or 21.8mm


    Production Process

    Concrete Anchorage Post Tension Anchor Post Tension Wedge For 12.7mm Dia PC Strand
    Our Service

    Years of experience invested in designing and production of pre-tensioned structures imply flawless organisational skills and timely delivery of goods and materials. All our equipment is regularly maintained and calibrated in order to ensure consistent and permanent quality.
    We provide long time aftersale guarantee for customer .we can produce goods according to customers design.

    FAQ



    Q: Can the customers customize the design sketch?
    A:Sure, welcome!

    Q: Why we are worth trusting?
    A:You are warmly welcome to visit our factory, and our working process.
    Q:Is your quality guaranteed?
    A: We have CCPC certificates ,and all our products must pass the quality inspection process before shipment.
