BM15 BM13 PC Strand Flat Prestressed Anchorage For Concrete Construction

BM15 BM13 PC Strand Flat Prestressed Anchorage For Concrete Construction

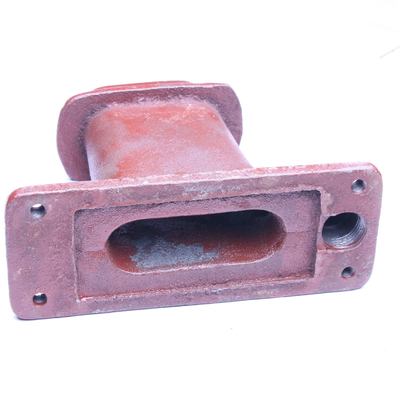

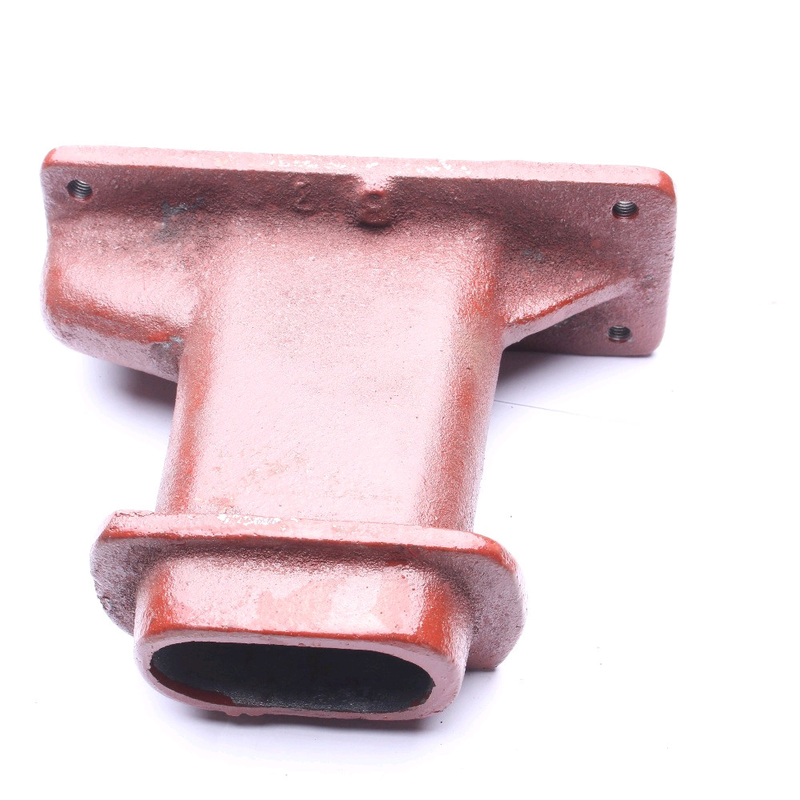

    • BM15 BM13 PC Strand Flat Prestressed Anchorage For Concrete Construction
    • BM15 BM13 PC Strand Flat Prestressed Anchorage For Concrete Construction
    • BM15 BM13 PC Strand Flat Prestressed Anchorage For Concrete Construction
  • BM15 BM13 PC Strand Flat Prestressed Anchorage For Concrete Construction

    Product Details:

    Place of Origin: Mainland China
    Brand Name: NC712
    Certification: ISO9001,CE,SGS
    Model Number: 712

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: $1-50
    Packaging Details: Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 80,000 pcs monthly
    Contact Now
    Detailed Product Description
    Part Name: Flat Prestressed Anchorage Application: Bridge
    Diameter: 12.7/15.24mm Material: 40Cr Steel
    Surface Treatment: Antirust Sample: Available

     Concrete Construction BM15 BM13 PC Strand Flat Prestressed Anchorage

    Description

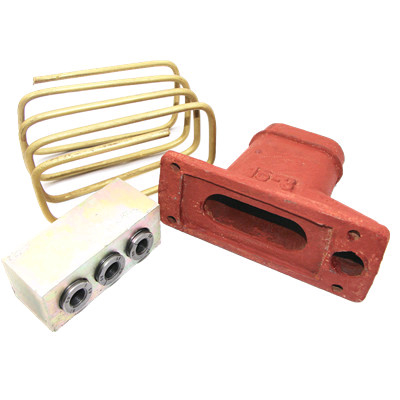

    A set of prestressed round anchorage consists of anchor head, bearing plate, anchor wedge, spiral reinforcement . It is usually used with plastic or metal corrugated ducts, PC strands(PC wire bundle).The anchorage divides into two round anchorage and flat anchorage. Round anchorage is called YM series. Flat anchorage is called BM series.


    The shape of the anchor head is flat. The layout of the prestressing tendons are usually horizontal and parallel. The BJM stressing flat anchorage is applied for strands of 12.7mm, 15.2mm and 17.8mm.
    It gets rid of the disadvantages of the over-concentrated prestress and large sizes in two directions of the group anchorages. The distribution of the prestress is more reasonable. The thickness of the anchor head can be thinner. It is usually applied in hogging moment such as the horizontal prestress of the floor of the buildings and bridges and simple support continuous girder


    Application

    1. Used in pre-tension or post-tension for concrete constructions as building materials
    2. Used in the upper plates of bridges
    3. Used PC panels, high-pressure concrete water pipes, marine structures, towers and runways.
    4. Used for multi-storey industrial/commerial/residential buildings, stadiums, coal mines and etc


    Product Show


    BM15 BM13 PC Strand Flat Prestressed Anchorage For Concrete Construction


    TYPEBM13-2BM13-3BM13-4BM13-5

    ANCHOR HEAD
    (mm)

    80
    48
    50

    110
    45
    45

    140
    45
    45

    170
    45
    45

    ANCHOR PLATE
    (mm)

    140
    150
    80

    150
    160
    70

    175
    200
    70

    200
    230
    70

    CORRUGATED DUCT
    (mm)

    50
    22

    60
    22

    74
    22

    90
    22


    Our Advantages


    1. Best Price and Excellent Quality.
    2. Professional Engineering Service.
    3. On-time Production and Delivery.
    4. International After-sales Team to provide the professional job-site technical support.


    FAQ

    Q: If accept OEM service to made product as per customer offering drawing?
    A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan.
    Q: If free sample available?
    A:Yes, we can offer sample free of charge. But the express cost should be on buyer’s account.
