Monostrand Post Tension Anchor Grip Systems Strand Anchors Wedges

Monostrand Post Tension Anchor Grip Systems Strand Anchors Wedges

    • Monostrand Post Tension Anchor Grip Systems Strand Anchors Wedges
    • Monostrand Post Tension Anchor Grip Systems Strand Anchors Wedges
  • Monostrand Post Tension Anchor Grip Systems Strand Anchors Wedges

    Product Details:

    Place of Origin: Mainland China
    Brand Name: NC321
    Certification: ISO9001,CE,SGS
    Model Number: 321

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: $1-50
    Packaging Details: Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 80,000 pcs monthly
    Contact Now
    Detailed Product Description

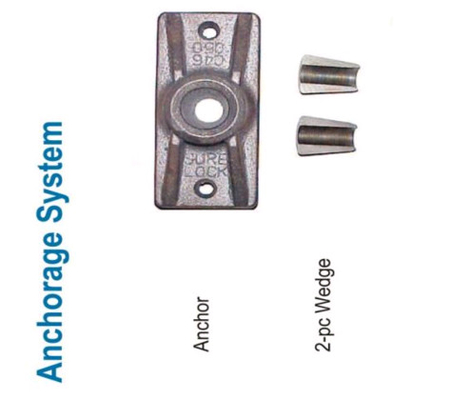

    Part Name: Monostrand Anchorage Anchor Material: Cast Iron
    Wedge Materials: 20CrMnTi Specification: 12.7mm Prestressed Strand
    Color: Galvanized/Black/Yellow/Colored Sample: Available

    Monostrand Post Tensioning Grip Systems Strand Anchors Wedges



    Description



    Adaptable to a variety of structures, unbonded monostrand can be easily, rapidly, and economically installed. Applications for monostrand systems include elevated slabs, slab-on-grade, beams and transfer girders, joists, shear walls and mat foundations.

    Our unbonded systems feature 0.5" and 0.6" diameter strands coated with a layer of specially formulated grease. The outer layer is seamless plastic extruded in one continuous operation to provide protection against corrosion. Each tendon is precisely coiled, cut, labeled, color-coded and delivered to the construction site. A wide variety of anchorage systems (see Product Information tab below) are available to meet design specifications.

    Encapsulated unbonded monostrand systems are used in areas that are subject to corrosive conditions. Strands are protected at the anchorages using greased plastic sleeves and grease-filled end caps. Additionally, anchorage components are fully encapsulated in a high density polyethylene plastic covering and an optional encapsulated intermediate coupler anchorage system can be used to protect the strand at construction joints.



    The material for this anchorage is spheroidal graphite cast iron, which puts tranditional anchor ring and plate into one integration anchor. It simplifies the complicated the manufacturing procedure and structure, which has the advantage of convenient construction, perfect sealability and easy to guarantee the perpendicularity between the anchorage and steel strands. And the cost will be lessened more than 20%.



    Specification

    1. Type: anchorage system
    2. Capacity: HRC 15-35
    3. Holes for anchorage: One hole
    4. Wedges: 2pcs or 3pcs
    5. Shape: round or flat
    6. Specification: Used for the PC steel strand 12.7mm and 15.24mm.
    7. Package: In box and outside wooden case

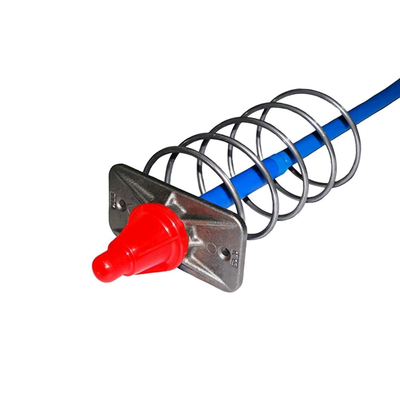

    8. Other parts for the anchor: anchor ring/plate, wedge, base plate, spiral bar, bellows/corrugated pipe.
    Monostrand Post Tension Anchor Grip Systems Strand Anchors Wedges





    Monostrand Post Tension Anchor Grip Systems Strand Anchors Wedges



    About Us

    Our company have the ability to undertaking variety of level structure of railway, highway, bridge projects, high-rise building, tunnel, and other construction. Products has passed ISO9001, BV, SGS quality management certification, and established quality management system according to it. "Quality first, customer supreme", which is our first our standard to participate in market competition.


    Our Service



    Best price: No matter you are a seller ot end user, we will provide you our best price for our tuture cooperation.

    Professional services: 1x7 days 24 hours service online, and engineer can service oversea

    Samples: We are free to provide you sample for your test

    A: Please tell me how many holes anchor do you need?

    B: What is your required diameter for pc strand you use?


    FAQ



    Q: How long is your delivery time?
    A: Generally it is 5-30days, it is according to quantity.

    Q: Do you provide samples ? is it free ?
    A: Yes, we can provide free sample, customer shall need to pay for the express charge.

    Q: What is your terms of payment ?
    A: 30% T/T in advance, balance before shipment.

    Q: Do you accept the OEM?
    A: Yes, we accept custom design OEM or ODM.
