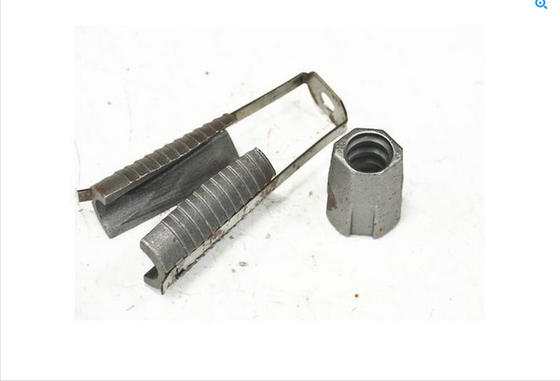

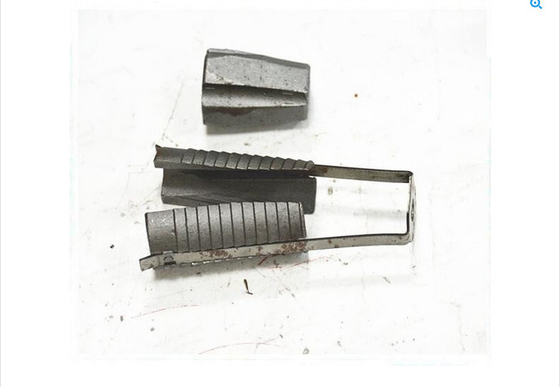

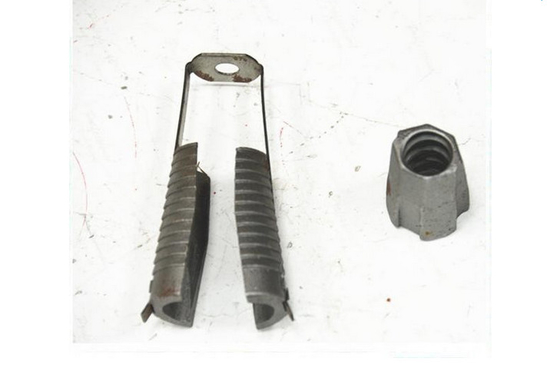

Mechanical Expansion Shell Expansion Rock Anchor Bolts / Roofing Hook Bolts

Mechanical Expansion Shell Expansion Rock Anchor Bolts / Roofing Hook Bolts

    • Mechanical Expansion Shell Expansion Rock Anchor Bolts / Roofing Hook Bolts
    • Mechanical Expansion Shell Expansion Rock Anchor Bolts / Roofing Hook Bolts
    • Mechanical Expansion Shell Expansion Rock Anchor Bolts / Roofing Hook Bolts
  • Mechanical Expansion Shell Expansion Rock Anchor Bolts / Roofing Hook Bolts

    Product Details:

    Place of Origin: Mainland China
    Brand Name: NC219
    Certification: ISO9001,BV,CE
    Model Number: 219

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: $1-50
    Packaging Details: Wooden Case
    Delivery Time: 25 days
    Payment Terms: T/T, L/C
    Supply Ability: 80,000 pcs
    Contact Now
    Detailed Product Description
    Part Name: Expansion Shell Expansion Anchor Diameter: 32~35, 35~38, 42~45 Mm
    Material: Cast Iron Length: 90~115
    Capacity: 100Kn Sample: Available

    Mechanical Expansion Shell Expansion Anchor Roct Bolt / Roof Bolt for Mining Industry



    Description



    Expansion shells are used for fixing single-sided shuttering or similar structures in rock, concrete or comparable load-bearing ground.

    The expansion shells hold in any rock strata which is sufficiently competent to provide an adequate anchorage. They are designed to anchor in soft ground or hard rock. In good strata the anchorage exceeds the ultimate strength of the steel bolt. All expansion shells require a competent strata in the anchor zone. The suitability of the anchorage and the specific expansion shell to be used is best determined by physical load testing.

    The expansion shells feature parallel contact with the hole wall with sharp serration’s on the outside leaves ensure positive holding power.

    The expansion shell assembly is securely held by a spring ring, to save installation time and prevent loss of parts while handling. The spring ring is expandable with the outside leaves in working condition.



    Specification



    Product Name Rock Bolt with Expansion Shell
    Type (Size) 32mm, 35mm, 38mm, 42mm, 48mm
    Material Cast Iron
    Finish Sand Blasting
    weight 0.3-0.6KG etc.

    Mechanical Expansion Shell Expansion Rock Anchor Bolts / Roofing Hook Bolts



    Our Service


    1. Best price could be offered within 24 hours after fully receipt of your sizes, material, quantity, as well as packing information.

    2. Well-trained and experienced staff are to be of your service.

    3. Your business relationship with us will be confidential to any third party.

    4. Good after-sale service offered, please get back if you got question.
    If you have a new product drawing or a sample, please send to us, and we can custom-made the hardware as your required. We will also provide our professional advice of the products to make the design to be more realized & maximize the performance.



    FAQ



    How long can I expect to get the customized sample?

    After you pay the sample charge and send us confirmed files, and the mould is existing in our factory, the samples will be ready in 10-15 working days;
    If the mould is not existing, we need to open a new mould, the samples will be ready in 15-18 working days; The samples will be sent to you via express and arrive in 3-5 working days. You can use your own express account number or prepay us if you do not have an account.



    What about the lead time for mass production?

    Honestly, it largely depends on the order quantity and the season when you place the order. As usual, 20-35 working days will be OK. If you are very urgent, we will try our best to do it.
