Place of Origin: | Mainland China |
Brand Name: | NC124 |
Certification: | ISO9001,CE,SGS |
Model Number: | 124 |
Minimum Order Quantity: | 100 pcs |
---|---|
Price: | $1-50 |
Packaging Details: | Wooden Case |
Delivery Time: | 25 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 60,000 pcs monthly |
Product Name: | Anchor Block | Diameter: | 12.7MM 15.24MM |
---|---|---|---|
Application: | Concrete Construction Prestressed | Material: | Cast Iron |
Surface Treatment: | Anti-rust | Size: | Standard |
High Light: | post tensioning system,prestressed anchorage |
Post Tensioning Arc Slab Anchorage Cast Iron Anchor Plate And Anchor Head
Product Description
Material | Wedge: 20CrMnTi, Anchor head: QT450, Anchor bearing plate: HT200 |
Hardness | Wedge:78-85HRA, Anchor head: 25-36HRC |
Steel strand's diameter | 12.7mm/15.2mm |
Wedge type | 2 Pieces/set |
Certificate | ISO, SGS |
Packing | Free fumigation wooden case |
Produce Standard | Anchor wedge:Up to GB/T3077-2015, Anchor head: Up to GB/T3077-2015, Anchor bearing plate: Up to GB/T9439-88 |
Full set including | anchor head, wedge, bearing plate, spiral reinforcement |
Test | Metallographic Analysis and Testing of magnetic particle flaw detection |

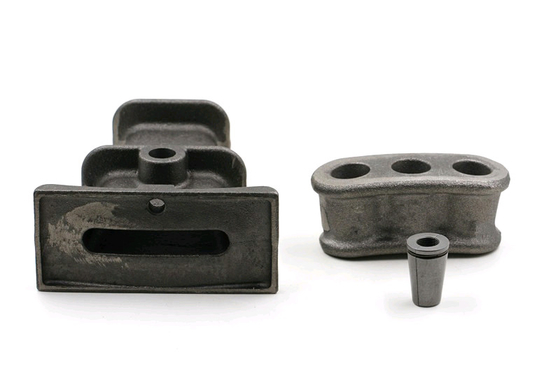

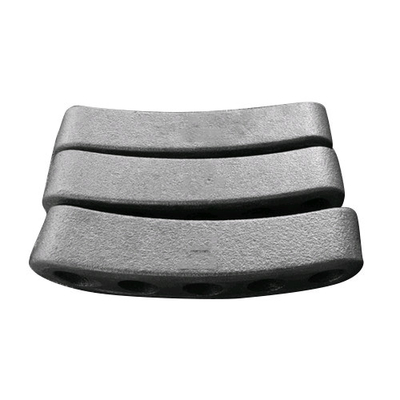

Flat stressing anchorage consist of flat working anchor head, working wedge ,flat anchor bearing plate and flat spiral reinforcement.
The products can be divided into two types,VLM15 and VLM13 according to their strand diameters.It can be used to anchorφ12.7~12.9mm,φ15.1~15.9mm,standard strength 1470~1960Mpa low relaxation and high strength PC strands, and can be also to 7φ5,7φ7,strength 1470~1770Mpa PC steel wires.
As the name suggest, it is the same as stressing anchorage, only that the shape is flat. Flat stressing anchorage is common on slab on grade, side walls of hollow core beams / girders, transverse post-tensioning on box girders deck and flat slab.
Product Show
Packaging
carton packing or wooden box
Delivery time
Depend on order quantity. Normally within 20 days after receiving the deposit or copy of L/C at sight.
Shipping
COSCO, MAERSK, K-LINE, CSAV, CMA, PIL, HPL, MSC, OOCL, HANJIN, EVER GREEN, etc.
Company Information
Our products are extensively applied in many projects such as highways, railways, bridges, building constructions, hydroelectric projects, TV towers, large containers, rock anchors and ground anchors.
We have a great team to supply professional design, excellent servise, high quanlity products, fast delivery and on time after-sales, so that our products were sold to firms all over the word. And have more than 8 years experience for international trade. Welcome to cooperation with us to reach your high quanlity and best service request.
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
