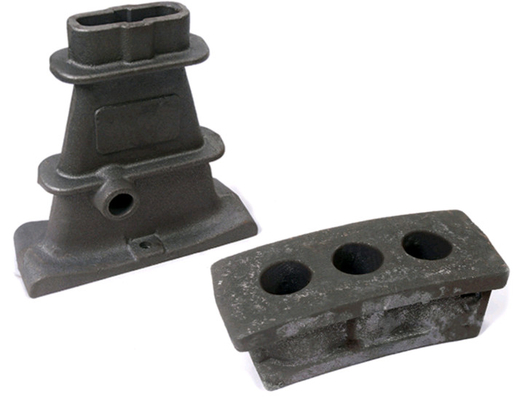

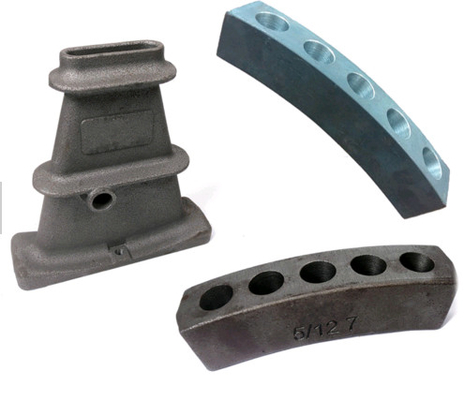

Spheroidal Graphite Post Tension System Cast Iron Flat Arc Slab Anchorage

Spheroidal Graphite Post Tension System Cast Iron Flat Arc Slab Anchorage

    • Spheroidal Graphite Post Tension System Cast Iron Flat Arc Slab Anchorage
    • Spheroidal Graphite Post Tension System Cast Iron Flat Arc Slab Anchorage
  • Spheroidal Graphite Post Tension System Cast Iron Flat Arc Slab Anchorage

    Product Details:

    Place of Origin: Mainland China
    Brand Name: NC771
    Certification: ISO9001,CE,SGS
    Model Number: 771

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 sets
    Price: $1-50
    Packaging Details: Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 60,000 pcs monthly
    Contact Now
    Detailed Product Description
    Product Name: Prestressed ARC Anchorage Material: Spheroidal Graphite Cast Iron
    Application: PC Starnd,PC Wire Color: Black
    Process: Casting OEM: Available

    Prestressed Spheroidal Graphite Cast Iron Flat Arc Slab Anchorage for Post Tension System



    Description



    The anchoring system of spheroidal graphite cast iron integrated anchor is designed for unbonded PC strand based on the application of PC strand anchorage in recent 20 years in China.Its feature is that the anchorage at the tension end adopts the spheroidal graphite to integrate the bearing plate and anchor head.It has compact structure and reliable anchoring, Its performance meets the national requirements of GB/t14370-2000, and it is also applicable to 2000MPa PC strand.In addition, the biggest advantage of the anchoring system is that the full length of PC strand can be fully sealed.

    Specification

    Model
    Flat Anchor Head
    Flat Bearing Plate
    Flat Duct
    A
    B
    C
    D
    E
    H
    J
    K
    BJM15(13)C-3
    115
    48
    50
    160
    80
    130
    60
    22
    BJM15(13)C-4
    150
    48
    50
    195
    80
    195
    74
    22
    BJM15(13)C-5
    185
    48
    50
    230
    80
    270
    90
    22

    Spheroidal Graphite Post Tension System Cast Iron Flat Arc Slab Anchorage





    About Us

    We are in production of prestressed machinery equipment products and anchor products. Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc. We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.



    Our Advantages



    Strict quality control system

    Free sample

    Customized product can be made

    Offer professional consutation and and service





    FAQ

    Q: How long is your delivery time?

    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ?

    A: Yes, we could offer the sample but do not pay the cost of freight.

    Q: What is your terms of payment ?

    A: 50% T/T in advance, balance before shipment.
