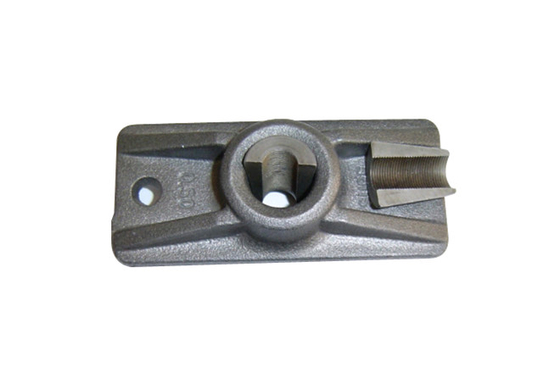

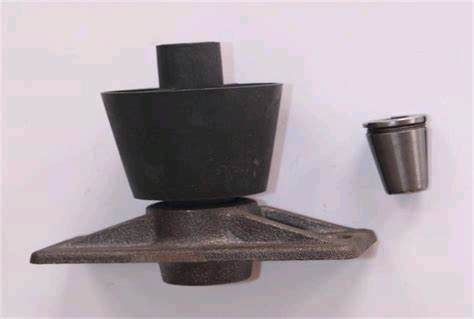

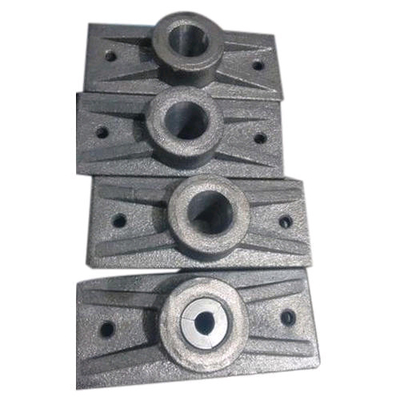

Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor

Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor

    • Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor
    • Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor
    • Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor
  • Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor

    Product Details:

    Place of Origin: Mainland,China
    Brand Name: NC8O9
    Certification: ISO9001,SGS,BV
    Model Number: 809

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: $1-50
    Packaging Details: Crate
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 60,000 pcs monthly
    Contact Now
    Detailed Product Description
    Part Name: Monostrand Anchor Material: Cast Iron
    Application: For PC Strand Color: Galvanized/Black/Yellow
    Capacity: 1860Mpa Sample: Available

    Prestressed Unbonded PC Strand Post Tension System Cast Iron Monostrand Anchorage And Wedges



    Product Details



    Product Name


    One Set Assembly
    Two Pieces:anchor head,Wedge
    Three Piece:anchor head,Wedge,Plate
    Four Piece:anchor head,Wedge,Plate,Spiral ring



    Material of anchor barrel
    40Cr or S45C
    Material of Wedge
    20CrMnTi ; 20CrMn5
    Type of wedge
    2pcs or 3pcs
    Holes
    1-55 holes
    Hardness of work anchorage(HRB)
    20~35
    Hardness of work Wedge(HRC)
    50~65
    Hardness of work anchorage treatrent(HRC)
    50~100
    Anchor Efficiency Coefficient η a
    η≥0.95
    Total Strain of Ultimate Tension εapu (%)
    ≥2.0%
    With-draw of wedge after stressing
    ≤6mm
    Delivery time
    1 week for ready goods
    Feature
    Galvanized OR Chemcial Dioxide Surface Treatment(Black)



    Unbonded PC Strand Post Tensioning System / Monostrand Cast Iron Anchor



    Our Service



    Best price: No matter you are a seller ot end user, we will provide you our best price for our tuture cooperation.

    Professional services: 1x7 days 24 hours service online, and engineer can service oversea

    Samples: We are free to provide you sample for your test

    A: Please tell me how many holes anchor do you need?

    B: What is your required diameter for pc strand you use?

    FAQ

    Q:Are you a factory or trading company?
    A:We are a factory

    Q: Do you provide samples ? is it free or extra ?
    A:Yes, we can offer samples free of charge. But the express cost should be on buyer’s account.

    Q:How long is your delivery time?
    A:Generally it is according to the quantity and the type.It is usually from 5 to 15 days.

    Q:What is your terms of payment?
    A:We accept T/T, irrevocable L/C at sight, D/P and D/A.For the T/T payment, we accept 30%
    prepayment in advance and the balance payable against the copy of B/L.
