Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm

Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm

    • Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm
    • Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm
    • Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm
  • Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm

    Product Details:

    Place of Origin: Mainland,China
    Brand Name: nc781
    Certification: ISO9001,CE,SGS
    Model Number: 781

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 sets
    Price: $1-50
    Packaging Details: Crate
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 60,000 pcs monthly
    Contact Now
    Detailed Product Description
    Application: Concrete Structure Material Of Anchor Head: 40Cr
    Material Of Wedge: 20CrMnTi Material Of Bearing Plate: HT200
    Hole Counting: 1-19 Outer Diameter Of Anchorage Head: 138 Mm

    Multi Holes Prestressed 12.7 mm Concrete Strands Round Anchorage



    Product Introduction


    1. An anchorage that is suitable for post-tensioned concrete pretensioning in the construction process.
    2.It is usually used in bridge construction, pre-installed positioning, and then poured concrete, buried in the concrete at both ends, that is, the two ends of the bellows, is the end face set for the stability of the jack when tensioning Anchors, also known as prestressed anchors.



    Product Details



    Product Name Prestress Anchorage
    Material Wedge: 20CrMnTi, Anchor head: 40CrMnTi steel, Anchor bearing plate: HT200
    Hardness Wedge:78-85HRA, Anchor head: 25-36HRC
    Steel strand's diameter 12.7mm/15.2mm
    Wedge type 2 Pieces/set
    Certificate ISO, SGS
    Packing Free fumigation wooden case
    Produce Standard Anchor wedge:Up to GB/T3077-2015, Anchor head: Up to GB/T3077-2015, Anchor bearing plate: Up to
    GB/T9439-88

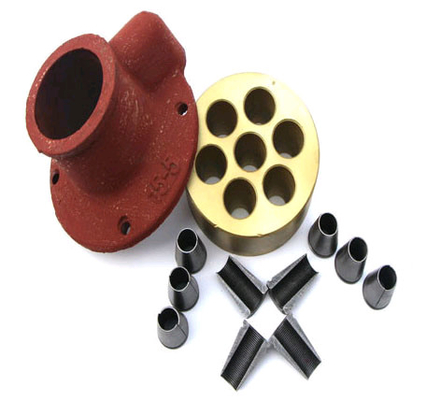

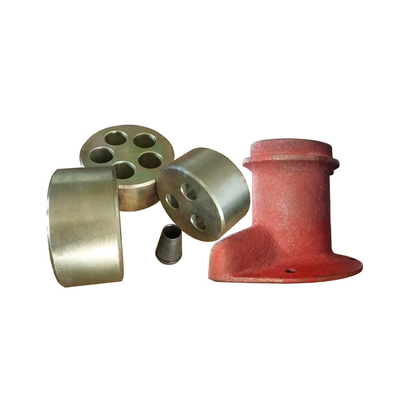

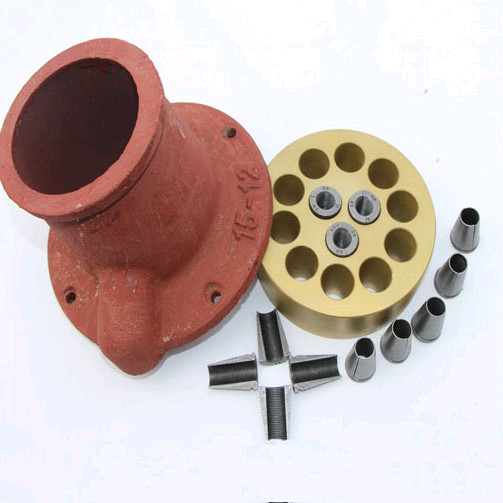

    Full set including anchor head, wedge, bearing plate, spiral reinforcement.
    Test Metallographic Analysis and Testing of magnetic particle flaw detection

    Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm

    Concrete Structure Prestressed Strands Round Anchor Multi Holes 12.7 Mm

    About Us



    We have been specializing in production of prestressed machinery equipment products and anchor products.

    Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc.

    We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.



    Our Advantages


    Three options of customers usually order:



    A: Complete sets: Anchor Head(Ring)+ Wedges+ Anchor Plates+ Spiral Spring Ring

    B: Three sets: Anchor Head(Ring)+ Wedges+ Anchor Plates

    C: Two sets: Anchor Head(Ring)+ Wedges



    4Best price: No matter you are a seller ot end user, we will provide you our best price for our tuture cooperation.



    Professional services: 1x7 days 24 hours service online, and engineer can service oversea



    Samples: We are free to provide you sample for your test

    A: Please tell me how many holes anchor do you need?

    B: What is your required diameter for pc strand you use?



    FAQ

    Are you a manufacturer or trading company?

    We are a trading company,sales of various prestressed system products.

    What is your terms of payment?



    We accept Trade assurance,T/T, L/C, D/P and D/A. For T/T payment, we accept 30% prepayment in advance and the balance payable against the copy of B/L.We would like to comply with your request.

    How long is your delivery time?

    Generally it will be 5 to 15 days according to quantity and type of the products.
