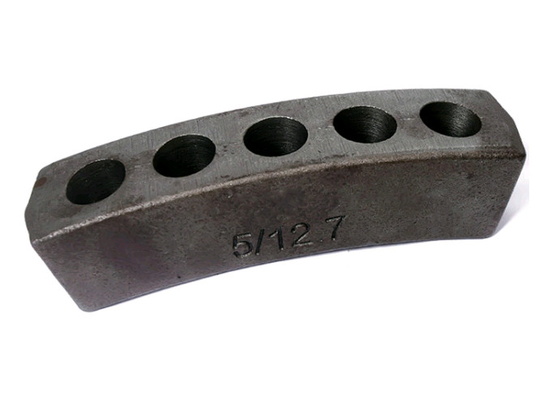

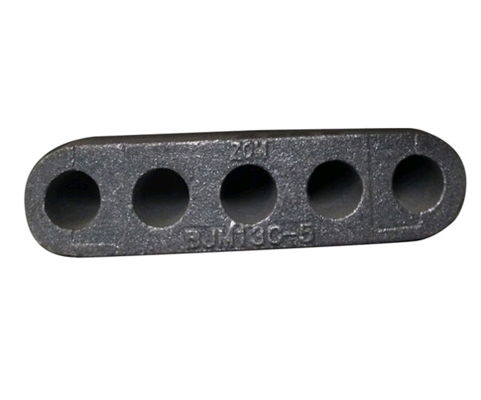

Cast Iron Curved Post Tension Anchor Wedge Plate Prestressed Customized Color

Cast Iron Curved Post Tension Anchor Wedge Plate Prestressed Customized Color

    • Cast Iron Curved Post Tension Anchor Wedge Plate Prestressed Customized Color
    • Cast Iron Curved Post Tension Anchor Wedge Plate Prestressed Customized Color
  • Cast Iron Curved Post Tension Anchor Wedge Plate Prestressed Customized Color

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: NC871
    Certification: ISO9001,CE,SGS
    Model Number: 871

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: $1-50
    Packaging Details: Crate
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 80,000 pcs monthly
    Contact Now
    Detailed Product Description
    Part Name: Concrete Anchor Material: Cast Iron
    Usage: Concrete Construction Support Color: Customized Color
    Finish: Natural Sample: Free

    Prestressed Post Tensioning Accessories Cast Iron Curved Anchor Head Anchor Wedge Plate



    About Us



    Our company have the ability to undertaking variety of level structure of railway, highway, bridge projects, high-rise building, tunnel, and other construction. Products has passed ISO9001, BV, SGS quality management certification, and established quality management system according to it. "Quality first, customer supreme", which is our first our standard to participate in market competition.

    The wedge anchor uses the wedge principle to anchor the strand, that is, wedge-shaped clamping piece wedges strand into the wedge-shaped taper hole of anchor plate, when using jack to tension the strand, after achieving the designed stress value, the jack is slowly released, the anchor of the clamping piece is retracted into the tapered hole of the anchor plate to form an anchor unit by strand, the stress of the steel strand passes the anchor plate to the building structure to form a permanent prestress.

    Product Details

    Product Name: Anchor Head
    Material: Cast Iron
    Hardness: HRC25-36
    Process:Iron Sand Casting
    Features: Easy to use, safe and reliable, high anchor efficiency and very good performance
    For Strands Number: 3 strands and 5 strands
    Related Product: Flat Anchor Casting Head, Wedges, Anchor Bearing Plate, Spiral Spring Ring

    Cast Iron Curved Post Tension Anchor Wedge Plate Prestressed Customized Color





    Packaging



    carton packing or wooden box



    Delivery time



    Depend on order quantity. Normally within 20 days after receiving the deposit or copy of L/C at sight.



    Shipping



    COSCO, MAERSK, K-LINE, CSAV, CMA, PIL, HPL, MSC, OOCL, HANJIN, EVER GREEN, etc.



    FAQ



    Q: How long is your delivery time?
    A: Generally it is 5-30days, it is according to quantity.

    Q: Do you provide samples ? is it free ?
    A: Yes, we can provide free sample, customer shall need to pay for the express charge.

    Q: What is your terms of payment ?
    A: 30% T/T in advance, balance before shipment.

    Q: Do you accept the OEM?
    A: Yes, we accept custom design OEM or ODM.
