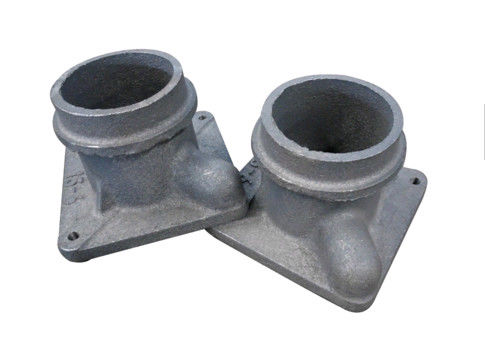

Iron Post Tension Anchor Bearing Plate For Round Anchorage Anti - Corrosion

Iron Post Tension Anchor Bearing Plate For Round Anchorage Anti - Corrosion

    • Iron Post Tension Anchor Bearing Plate For Round Anchorage Anti - Corrosion
    • Iron Post Tension Anchor Bearing Plate For Round Anchorage Anti - Corrosion
    • Iron Post Tension Anchor Bearing Plate For Round Anchorage Anti - Corrosion
  • Iron Post Tension Anchor Bearing Plate For Round Anchorage Anti - Corrosion

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: NC199
    Certification: ISO9001,CE,SGS
    Model Number: 199

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: $1-50
    Packaging Details: Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 60,000 pcs monthly
    Contact Now
    Detailed Product Description
    Part Name: Bearing Plate Material: Iron
    Standard: GB/T14370-2015 Application: Highway&Bridge
    Feature: Anti-corrosion/Watertight Self-design: Acceptable

    Post Tension Concrete Grouting Anchor Bearing Plate for Round Anchorage



    Description



    Pretressed anchor plate is to transfer the load of anchoragehead to the key part of concrete under the anchorage.They are co-transfer the load,the stress distribution under theanchorage affects the cracking and carrying capacity of the concrete under the anchorage.



    Features



    1.Wide application: it is adaptable for stand with diameters of Φ'8, Φ'9, Φ'11, Φ'12.7, Φ'15.2 and Φ'18 with various strength from 1570Mpa to 2000Mpa as well as for high tensile steel wires with diameters of Φ'5, Φ'7 with the standard strength from 1570Mpa to 1860Mpa.

    2.YJM anchoring system is available for full range of tendon sizes (1-55 strands). In addition, our company can produce anchorages of any type of arbitrary holes in accordance with demands of customers.

    3.Good in terms of self-anchoring and easy operation;

    4.High anchoring efficiency factor, stable and reliable;

    5.Be capable of repetitive stretching and strong in terms of anti-interference capability.

    Specification

    Model Bearing Plate Duct Anchor Head Spiral Reinforcement Stressing Jack
    Square Round Internal Diameter φE F φG H φI N
    A×B φA×B
    YJM15-1 80×20 φ80×20 35 45 48 80 30 8 4 QYC270
    YJM15-2 130×85 φ135×80 50 83 48 120 40 8 4 YDC650
    YJM15-3 130×87 φ135×85 50 87 48 120 40 10 4 YDC650
    YJM15-4 140×92 φ137×100 55 97 48 140 50 10 4 YDC1100
    YJM15-5 150×97 φ148×122 55 107 48 150 50 10 4 YDC1100
    YJM15-6 165×115 φ167×136 70 122 50 170 50 12 4 YDC1500
    YJM15-7 173×125 φ167×136 70 122 50 170 50 12 4 YDC1500
    YJM15-8 180×130 φ177×150 80 137 53 190 50 12 4 YDC2500
    YJM15-9 190×140 φ187×150 80 147 53 200 50 12 4 YDC2500
    YJM15-10 195×150 φ210×160 90 157 53 205 55 14 4 YDC2500
    YJM15-11 209×160 φ210×160 90 157 55 205 55 14 4 YDC2500
    YJM15-12 210×160 φ210×185 90 167 55 230 55 14 4 YDC2500
    YJM15-13 217×175 φ210×185 90 168 55 230 55 14 4 YDC3500
    YJM15-14 225×175 φ235×185 90 177 58 240 55 14 4 YDC3500
    YJM15-15 238×175 φ235×185 90 187 60 260 55 16 5 YDC3500
    YJM15-16 238×175 φ235×185 90 187 60 260 60 16 5 YDC3500
    YJM15-17 250×185 φ265×200 100 197 63 280 60 16 5 YDC3500
    YJM15-18 270×185 φ265×200 100 197 63 280 60 16 5 YDC4000
    YJM15-19 270×185 φ265×200 100 197 65 280 60 16 5 YDC4000
    YJM15-22 295×245 φ285×260 120 217 70 290 70 18 5 YDC5500
    YJM15-24 310×260 φ320×260 120 237 75 330 80 18 5 YDC5500
    YJM15-27 310×300 φ300×300 120 237 80 330 90 18 5 YDC6500
    YJM15-28/29 350×300 φ330×300 130 277 88 330 70 20 6 YDC6500
    YJM15-30/31 350×300 φ330×300 130 277 88 350 70 20 6 YDC6500
    YJM15-32/33/34 400×370 φ390×370 140 287 93 400 70 20 6 YDC6500
    YJM15-35/36/37 400×370 φ390×370 140 287 98 400 70 20 6 YDC9000



    Model Bearing Plate Duct Anchor Head Spiral Reinforcement Stressing Jack
    Square Round Internal Diameter φE F φG H φI N
    A×B φA×B
    YJM13-1 70×70 - 35 42 43 60 30 6 3 QYC270
    YJM13-2 115×100 - 45 77 46 120 30 8 3 YDC650
    YJM13-3 120×130 φ132×80 45 83 46 120 40 10 3 YDC650
    YJM13-4 135×130 φ135×102 50 87 46 135 50 10 3 YDC650
    YJM13-5 145×130 φ140×125 50 97 46 140 50 10 4 YDC1100
    YJM13-6/7 160×130 φ155×130 60 107 46/48 160 50 12 4 YDC1100
    YJM13-8 170×150 φ170×160 60 117 50 170 50 12 4 YDC1500
    YJM13-9 180×150 φ175×160 70 127 50 180 50 12 4 YDC1500
    YJM13-10 195×160 φ200×180 80 137 50 200 50 14 4 YDC1500
    YJM13-11 195×160 φ200×180 80 137 53 200 50 14 4 YDC2500
    YJM13-12 215×180 φ210×190 80 147 53 210 50 14 5 YDC2500
    YJM13-13 230×180 φ210×190 80 147 53 210 50 14 5 YDC2500
    YJM13-14 230×180 φ210×210 80 157 55 220 50 14 5 YDC2500
    YJM13-15 240×220 φ215×230 90 167 55 220 50 14 5 YDC2500
    YJM13-16 240×220 φ245×240 90 167 55 240 60 16 5 YDC3500
    YJM13-17 240×220 φ245×240 90 177 60 240 60 16 5 YDC3500
    YJM13-18 270×220 φ245×240 90 177 60 260 60 16 5 YDC3500
    YJM13-19 270×220 φ245×240 90 177 60 260 60 16 5 YDC3500
    YJM13-20 290×235 φ260×270 90 186 60 270 60 16 5 YDC3500
    YJM13-21/22 290×245 φ260×270 90 197 65 270 60 16 5 YDC3500
    YJM13-23/24 300×245 φ275×290 100 217 70 280 60 18 6 YDC4000
    YJM13-25/26/27 300×245 φ275×290 100 217 75 280 60 18 6 YDC4000
    YJM13-28/29 315×250 φ300×330 105 227 80 310 60 18 7 YDC5500
    YJM15-30/31 315×250 φ300×330 105 227 80 310 60 18 7 YDC5500
    YJM15-32/33/34 350×320 φ330×350 120 247 85 350 60 20 7 YDC5500
    YJM15-35/36/37 370×320 φ330×350 120 247 85 350 60 20 7 YDC550

    Iron Post Tension Anchor Bearing Plate For Round Anchorage Anti - Corrosion

    Iron Post Tension Anchor Bearing Plate For Round Anchorage Anti - Corrosion



    Application



    Post-Tensioning Systems are known in china for reliability and performance, most suitable for all applications in post-tensioned construction. They embrace the whole spectrum from bridge construction,buildings, to civil applications, above and underground.
